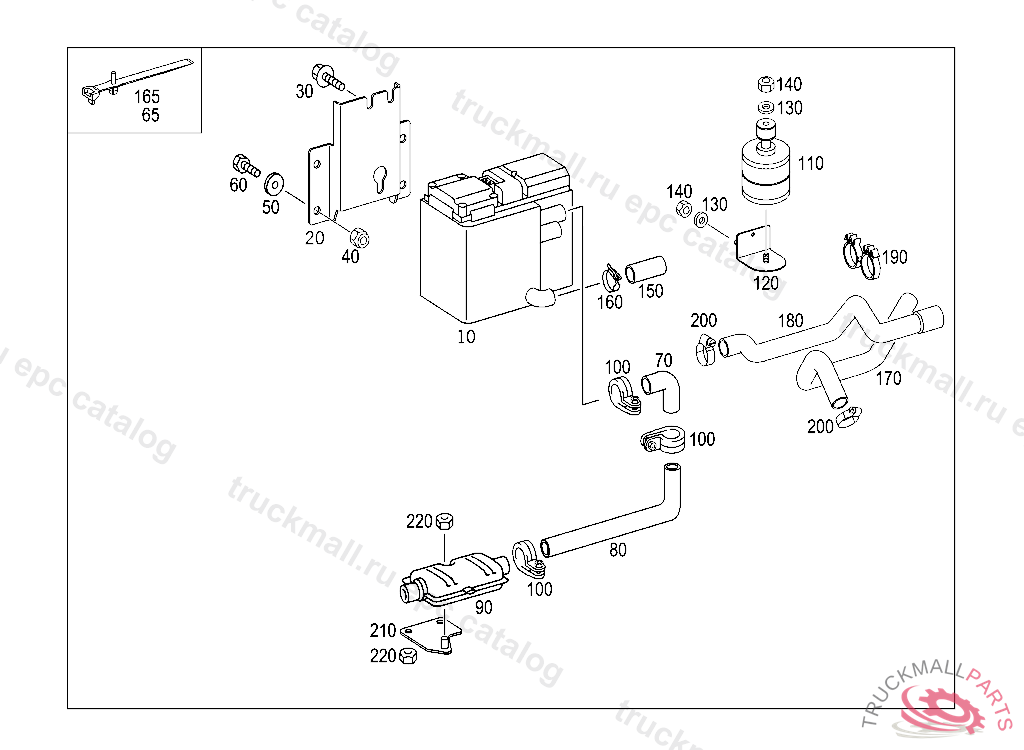

Поз.
Артикул
Описание
10
HEATING UNIT
20
BRACKET AT HEATER
30
BOLT MOUNTING HEATER UNIT TO BRACKET, X 20407720121031
40
NUT CLAMP TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET
60
SCREW PUMP TO BRACKET
70
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
80
FRONT EXHAUST PIPE
90
MUFFLER
90
MUFFLER
90
MUFFLER EXHAUST MUFFLER
100
CLAMP EXHAUST PIPE
110
FILTER FILTER
120
BRACKET MOUNTING INTAKE PIPE TO WHEELLHOUSE
130
WASHER COMPRESSED AIR LINE TO BRACKET
140
NUT CLAMP TO BRACKET
150
HOSE AT HEATER, ORDER BY THE METER
160
CLAMP HOSE ATTACHMENT 23/12 MM
165
LOOM TIE
170
MOLDED HOSE BETWEEN HEATER UNIT AND PIPE LINE
180
MOLDED HOSE BETWEEN HEATER UNIT AND PIPE LINE
190
CLAMP FASTENING COOLANT HOSE
200
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
210
BRACKET MUFFLER TO WHEELHOUSE
220
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
