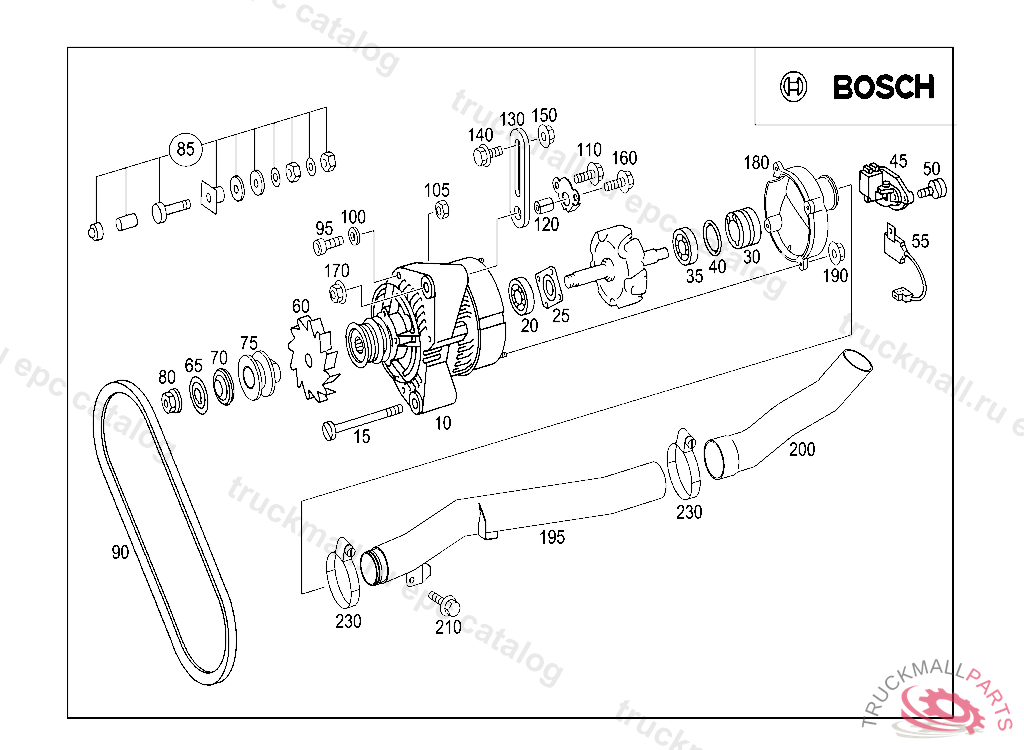

Поз.
Артикул
Описание
10
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
SCREW
15
SCREW COVER PLATE TO DRIVE BEARING M4X20
20
BALL BEARING DRIVE END BEARING BOSCH
25
SCREENING PLATE
30
RING
35
BALL BEARING SLIP RING SIDE
40
RINGTO 007 154 27 02
45
REGULATOR AND CUT-OUT
50
SCREW REGULATOR MOUNTING TO 009 154 07 02
55
CONDENSER
60
FAN
65
WASHER
70
COVER
75
PULLEY
80
NUT PULLEY TO ALTERNATOR
85
TERMINAL TERMINALS: B+, B-, D+, W
90
V-BELT
95
SCREW STRAP TO SUPPORT M 10X140
100
WASHER RADIATOR TO RUBBER MOUNTING
105
NUT ALTERNATOR TO SUPPORT
110
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
120
SLEEVE ALTERNATOR TO SUPPORT
130
CLAMPING BRACKET. BRACKET
140
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
150
NUT HORN TO BRACKET M8
160
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
170
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
180
COVER. CAP ALTERNATOR AIR INTAKE
190
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
195
PIPELINE. LINE ALTERNATOR AIR INTAKE
200
HOSE ALTERNATOR AIR INTAKE
210
SCREW SPEED SENSOR TO REAR AXLE
230
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
230
LOOM TIE
