Mercedes N304017006018 - Болт

G 320 463.245 FROM CHASSIS 144226

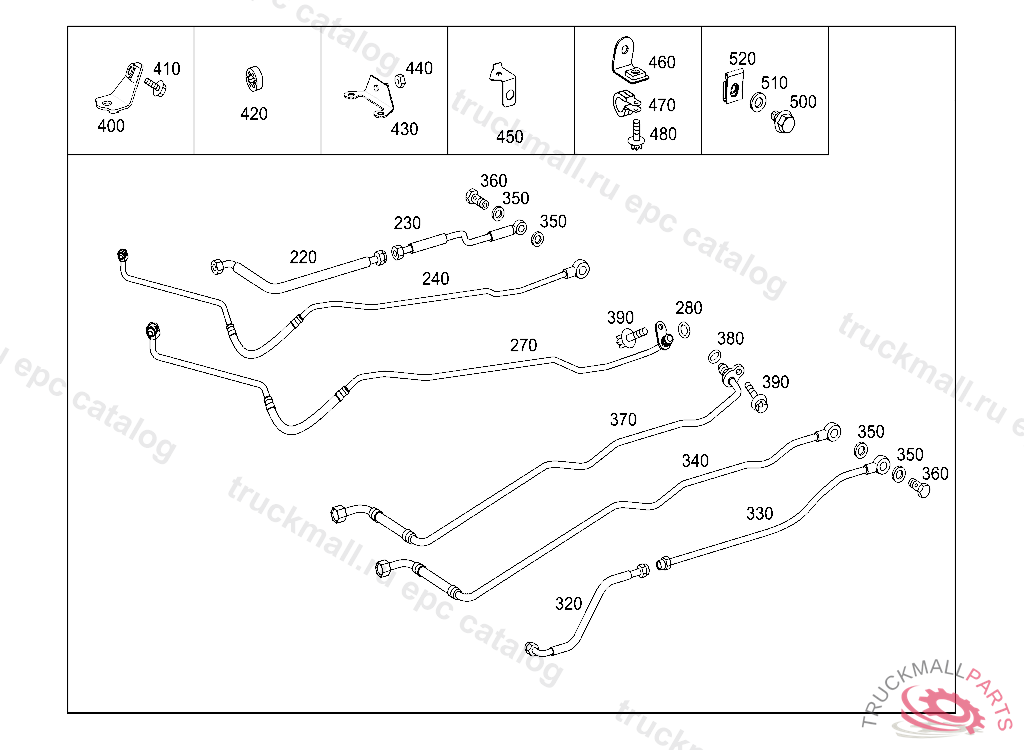

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 2

Поз.
Артикул
Описание
220
A4632700396
LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
230
A2102701896
LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
340
A4632700796
OIL LINE FROM TRANSMISSION TO OIL COOLER,LEFT
350
A0002711160
SEAL RING OIL LINE TO TRANSMISSION 14X18
360
N000000003036
BANJO BOLT OIL LINE TO TRANSMISSION CASE, Replaced By: N000000004748
380
A0199975845
O-RING OIL LINE TO TRANSMISSION
420
A1233288981
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
460
A4632700341
BRACKET OIL LINE TO CONVERTER HOUSING
470
N000000001045
CLAMP CABLE HARNESS MOUNTING
480
N000000001116
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
480
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
510
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
