Mercedes A0075458226 - Гнездовой патрон

G 320 463.250 TO CHASSIS 144225

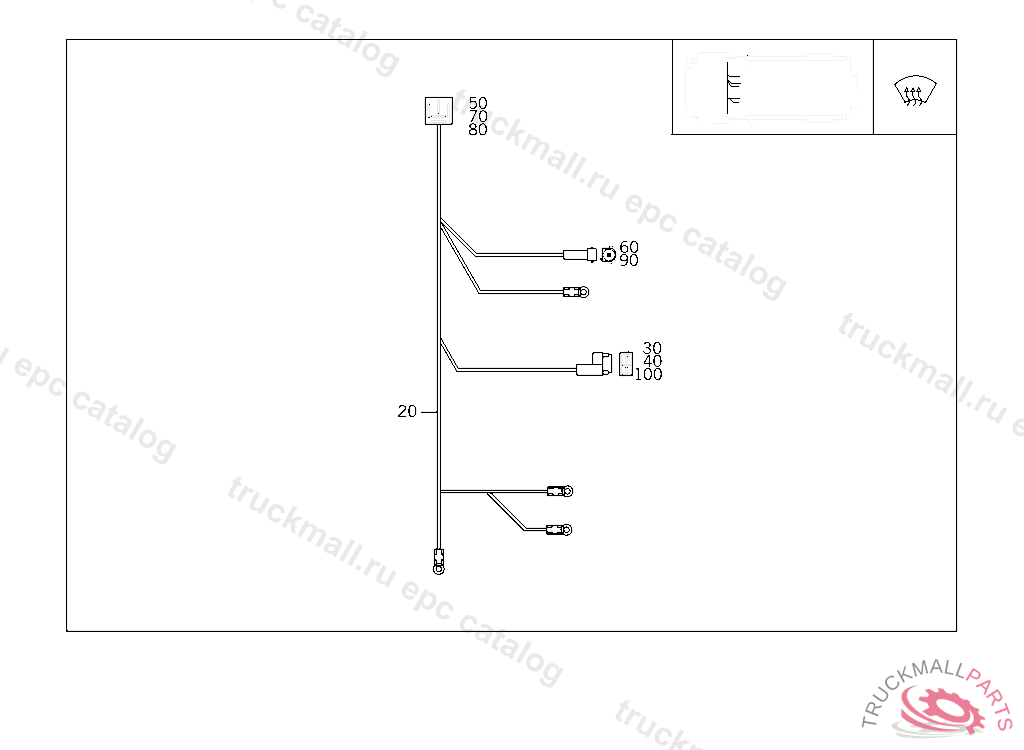

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 620 ELECTRIC CABLES USED FOR INTERIOR EXTRA EQUIPMENT IL. 2

Поз.
Артикул
Описание
20
A4635404106
CABLE HARNESS. WIRING HARNESS HEATED WINDSHIELD, X 17721720080530
30
A0035451301
FUSE BOX INTERIOR FUSE BOX SLOT COD. A SPT,24 F34
40
N000000004206
FUSE LINK20 A
40
N072581000306
FUSE20 A, MINOR REPAIRS, Replaced By: N000000004206
50
A0335456228
PIN BUSHING HOUSING RELAY SOCKET
60
A0325451728
PLUG POS. CABLE
70
A0005455326
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 1.0-2.5 MM2
80
A0075458226
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
90
A0335451928
PLUG PIN0,5-1,0 MM
100
A0115458426
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
