Поз.
Артикул
Описание

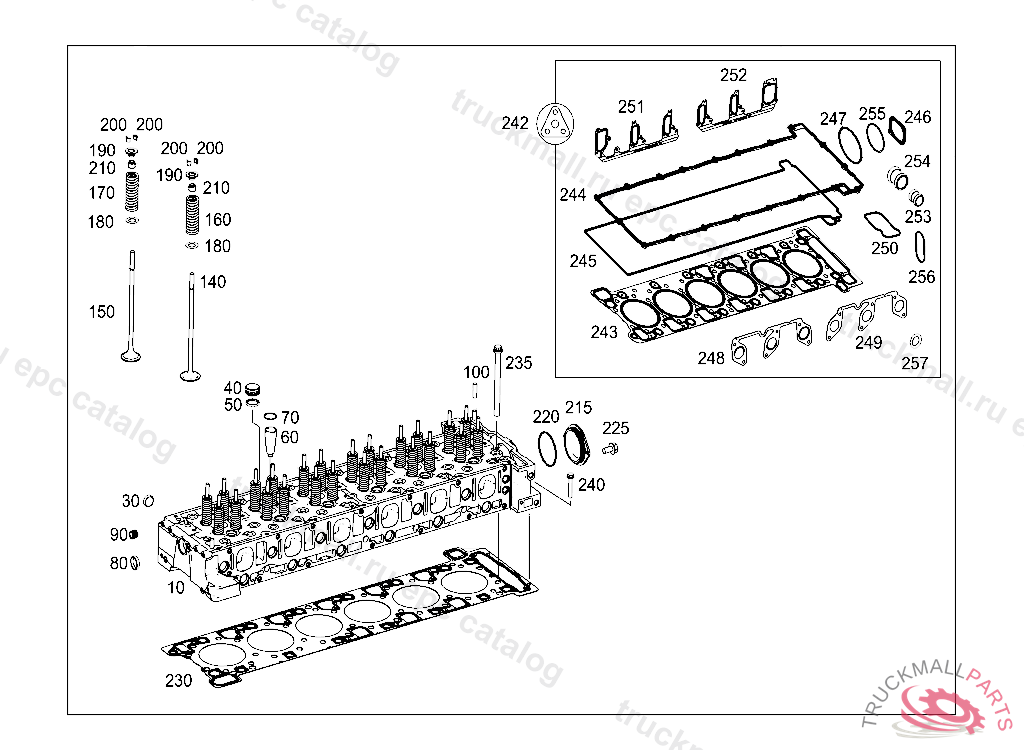

10
CYLINDER HEAD WITH VALVES, EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.
10
CYLINDER HEAD WITH VALVES, EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.
10
CYLINDER HEAD WITH VALVES, EXCHANGE PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"E"IN FRONT OF THE PART NO.
30
EXPANSION PLUG WATER PASSAGE
30
FILLER CAP PLUG, WATER JACKET
30
FILLER CAP. CLOSING COVER CONNECTOR FRONT LONGITUDINAL OIL DUCTINTAKE
40
CLOSING COVER PLUG, WATER JACKET
50
SEAL RING
60
WATER SHIELD SLEEVEINJECTOR CUP
70
RS O-RING WATER PROTECTION SLEEVE FOR INJECTOR CUP, INCLUDED IN RANGE OF DELIVERY: 6X A 024 997 64 45
70
O-RING WATER PROTECTION SLEEVE FOR INJECTOR CUP
80
CAP OIL PASSAGE PLUG
90
PLUG CAMSHAFT HOUSING 10 X 8.5 MM
100
CYLINDER PIN POSITIONING OF CAMSHAFT FRAME
140
INTAKE VALVE
140
INTAKE VALVE
150
EXHAUST VALVE
160
VALVE SPRING INTAKE VALVE
160
VALVE SPRING INTAKE VALVE
170
VALVE SPRING EXHAUST VALVE
170
VALVE SPRING EXHAUST VALVE
180
WASHER VALVE SPRING
190
SPRING RETAINER
190
VALVE SPRING CAP
200
VALVE COLLAR
210
VALVE STEM SEAL VALVE STEM SEALING
210
VALVE STEM SEAL VALVE STEM SEALING, Replaced By: A4700530158
215
CLOSING COVER GEAR DRIVE PLUG
220
O-RING
225
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
230
CYLINDER HEAD GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
230
CYLINDER HEAD GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
235
SCREW CYLINDER HEAD TO CYLINDER CRANKCASE
240
HEXAGON HEAD BOLT. SCREW CHARGE-AIR PIPE ON CHARGE-AIR HOUSING M10X100
242
CYLINDER HEAD GASKET KIT
242
DS CYLINDER HEAD CYLINDER HEAD TO CYLINDER CRANKCASE
243
CYLINDER HEAD GASKET
244
SEAL F CYL. HEAD COVER CYLINDER HEAD COVER TO CAMSHAFT FRAME
245
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
246
GASKET
246
GASKET CHARGING AIR ELBOW TO CYLINDER HEAD
247
GASKET AIR INTAKE CONNECTION AND THROTTLE VALVE TO CHARGE AIR PIPE
247
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
248
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
249
GASKET CYLINDERS NOS.4-6
250
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
251
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
252
GASKET CYLINDER HEAD TO CYLINDER CRANKCASE
253
CONNECTING PIPE EXHAUST GAS COOLER AT COLLECTING PIPE
254
CONNECTING PIPE
255
O-RING
256
GASKET VENTURI EXHAUST GAS RECIRC. LINE ATENGINE SUPPORTS INTEGRATED IN RADIATOR
257
PARTS KIT CONTAINS O-RINGS,SEAL AND SCREW/BOLT FOR ONE INJECTOR
