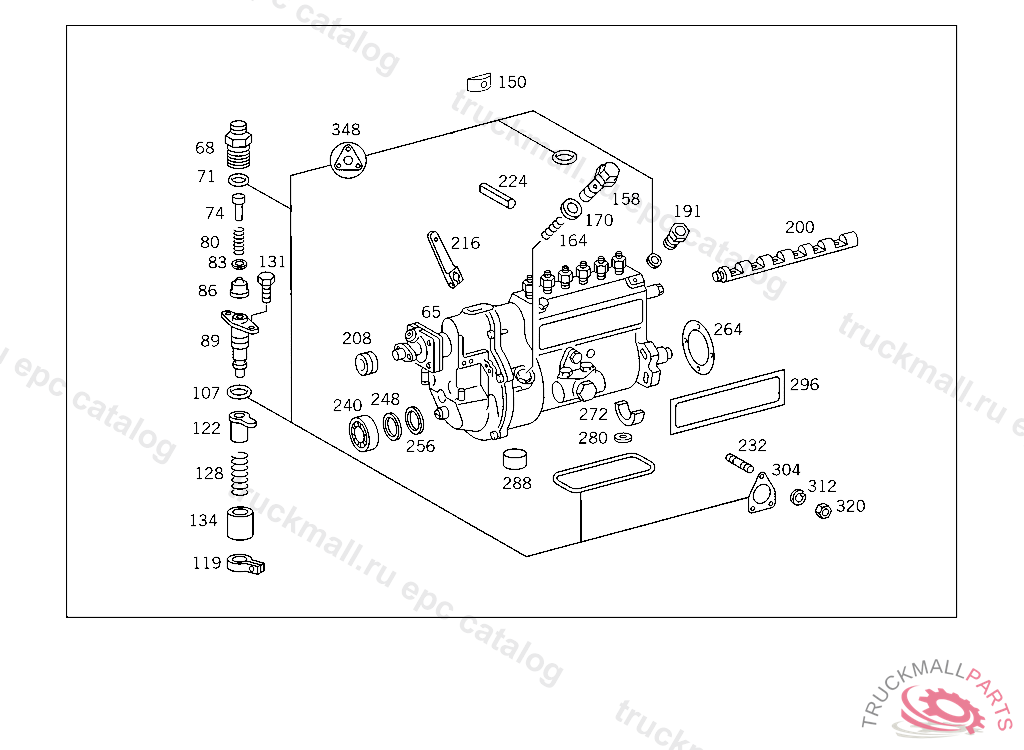

Поз.
Артикул
Описание
65
INJECTION PUMP
68
FITTING
71
SEAL RING
74
ELEMENT
80
SPRING
83
SEALING RING. SEAL RING
86
VALVE
89
PUMP ELEMENT
107
SEAL RING , FROM ENGINE 399027 YEAR OF MANUFACTURE 1995
119
TOOTHED SEGMENT22.70 MM
119
TOOTHED SEGMENT
122
CONTROL SLEEVE
128
SPRING
131
SCREW
134
TAPPET
150
CLAMPING PIECE
150
CLAMPING PIECE
158
VALVE ,295838/93
164
SPRING ,295837/93
170
SEAL RING PNEUMATIC VALVE
191
SCREW
200
CONTROL RACK
208
SCREW
216
LEVER (CONTROL LEVER)
224
PIN
232
STUD
240
TAPERED ROLLER BEARING
248
SPACER WASHER0.50 MM
248
SPACER WASHER0.12 MM
248
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.30 MM
248
SPACER WASHER1.00 MM
248
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.10 MM
248
SPACER WASHER0.14 MM
248
SPACER WASHER0.16 MM
248
SPACER WASHER0.18 MM
256
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.14 MM
256
SPACER WASHER AS REQUIRED 0.50 MM
256
SPACER WASHER0.16 MM
256
SPACER WASHER0.18 MM
256
SPACER WASHER AS REQUIRED 0.30 MM
256
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 1.00 MM
256
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.10 MM
256
SPACER WASHER0.12 MM
264
SEAL RING ,295837/93
272
BEARING PARTS KIT
280
SEAL RING
288
EXPANSION PLUG
296
GASKET
304
GASKET FUEL PUMP TO INJECTION PUMP, FROM ENGINE 399032 YEAR OF MANUFACTURE 1995
312
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
320
NUT
348
SEAL RING PUMP ELEMENT
999
PIN , NOT USED
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE III, HEIGHT: 61.9 MM,97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE II, HEIGHT: 62.2 MM,97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM,METAL LEVE
999
PISTON STANDARD 97.500 MM, METAL LEVE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 61.6 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.2 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM, MAHLE
999
PISTON STANDARD 97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE III, HEIGHT: 61.9 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE II, HEIGHT: 62.2 MM,97.500 MM, MAHLE
999
PISTON REPAIR, CYLINDER CRANKCASE WITH DRY LINERS, FITTING SIZE I, HEIGHT: 62.5 MM,97.500 MM, MAHLE
999
COVER
