Поз.
Артикул
Описание

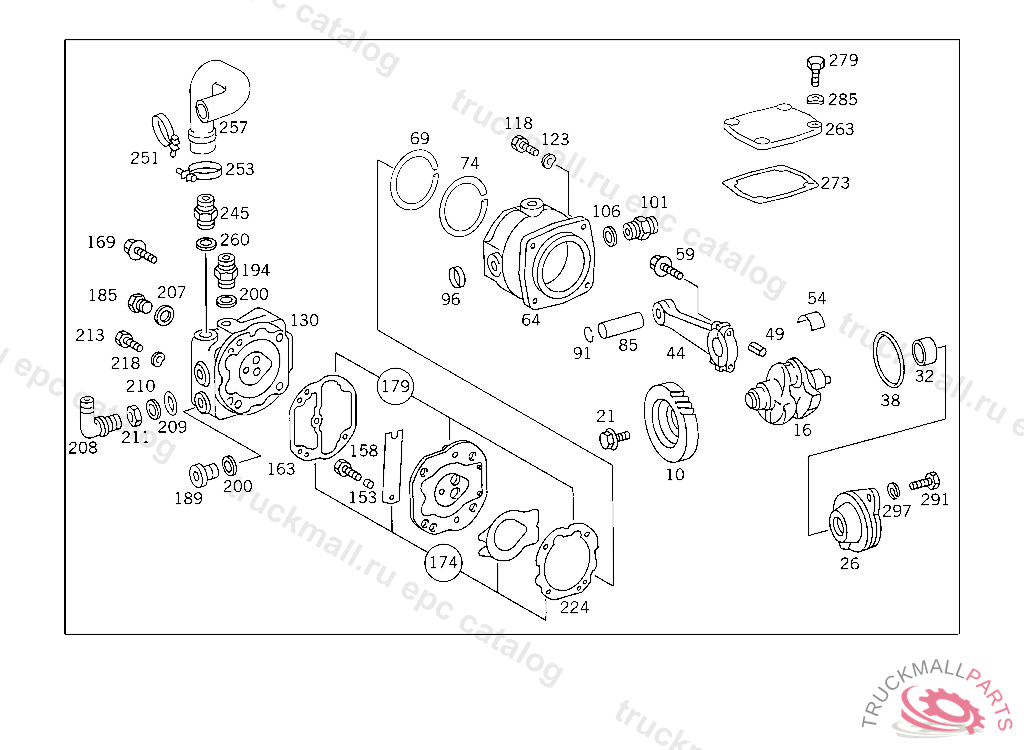

10
GEAR AIR COMPRESSOR DRIVE
10
GEAR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 969083, Replaced By: A4421300530
16
CRANKSHAFT ,888000, Replaced By: A4031311316, +001A4031301645, +001A0001321410
16
CRANKSHAFT , Replaced By: A4031300114
16
CRANKSHAFT ,888001
21
SCREW DRIVE GEAR TO CRANKSHAFT
26
FLANGE AIR COMPRESSOR,424.900-000-012333
26
FLANGE
32
BUSHING , Replaced By: A0001314250
32
BUSHING
38
SEAL RINGTO 388 476 71 69
44
CONNECTING ROD , Replaced By: A4031302816, +002A4031310233
49
CLAMPING SLEEVE
54
BEARING SHELL UPPER AND LOWER HALVES
59
SCREW THERMOSTAT HOUSING TO WATER PUMP M 8X38
64
CYLINDER LINER WITH PISTON
69
PISTON RING GROOVES I AND II
74
PISTON RING GROOVE III
85
PISTON PINTO 403 130 05 17
91
SNAP RING
96
EXPANSION PLUG , Replaced By: A4039970620
96
EXPANSION PLUG P.T.O. HOUSING
101
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
106
SEAL RING FROM FUEL TANK TO FUEL TANK
118
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
118
SCREW , Replaced By: N304017008033
123
SPRING WASHER , Replaced By: N000137008212
130
CYLINDER HEAD WITH DISC VALVE BOSCH
130
CYLINDER HEAD
130
CYLINDER HEAD WITH DISC VALVE KNORR
153
SPACER RING PRESSURE DISC TO INTERMEDIATE PLATE TO 000 130 24 19/25 19/26 19
158
SCREW PRESSURE DISC TO INTERMEDIATE PLATE M 6X20
163
GASKET , Replaced By: A4421310780
163
GASKET , TO 001 131 54 01
169
SCREWTO 376 131 74 01
174
REPAIR KIT , Replaced By: A4021300220
179
REPAIR KIT , Replaced By: A4021300320
185
SCREW PLUG , Replaced By: N000908026008
185
SCREW PLUG , Replaced By: A0009973532
189
SCREW PLUG , Replaced By: N000908022011
194
ADAPTER FITTINGTO 376 131 74 01
200
SEAL RINGTO 376 131 74 01
207
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
213
SCREW STRAP TO BRACKET
218
SPRING WASHER , Replaced By: N000137008212
224
GASKET CYLINDER HEAD TO CYLINDER LINER
224
GASKET , Replaced By: A4421310680
245
FITTING AIR COMPRESSOR,CONNECTION: "10"
251
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
251
CLAMP25-40X13 MM
253
CLAMP , Replaced By: N000000000670
253
CLAMP
257
HOSE
260
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
263
CAP TO PLUG AIR COMPRESSOR OPENING,128243
263
CAP , Replaced By: A4421310021
273
GASKET
273
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
273
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
273
GASKET OIL FILTER TO CYLINDER CRANKCASE
273
GASKET OIL FILTER TO CYLINDER CRANKCASE
279
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
279
SCREW , Replaced By: N304017008033
285
SPRING WASHER , Replaced By: N000137008212
291
SCREW SHIFTING ROD TO JOINT
297
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SEALING COMPOUND TIMING CASE COVER TO TIMING CASE, UP TO ENGINE 978,979 331710 YEAR OF MANUFACTURE 1994
999
CYLINDER HEAD , Replaced By: A4071300519
999
CYLINDER HEAD LESS DISC VALVE
999
GASKET , Replaced By: A4421311980
999
CYLINDER LINER WITH PISTON,AIR-COOLED
999
REPAIR KIT , Replaced By: A4421300720
999
REPAIR KIT , Replaced By: A4421300720
999
PARTS KIT AIR COMPRESSOR CYLINDER HEAD
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421311980
999
GASKET , Replaced By: A4421312180
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312980
999
GASKET INTERMEDIATE PLATE TO CYLINDER HEAD
999
SCREW PLUG , Replaced By: N000908014009
999
SEAL RING INJECTION PUMP
999
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
999
SCREW FITTING , Replaced By: A4039971172
