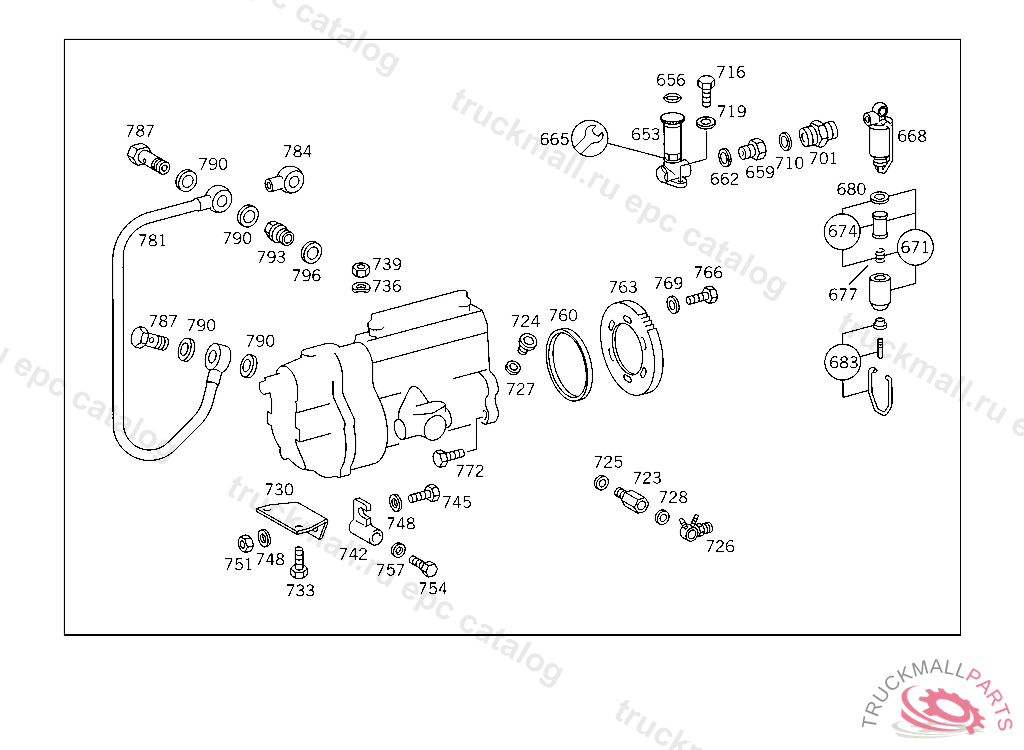

Поз.
Артикул
Описание
653
PUMP (MANUAL AUXILIARY PUMP)
656
SEAL RING
659
TRANSFER NIPPLE. FITTING
662
SEAL RING
665
REPAIR KIT VALVE
668
FUEL FILTER FUEL FEED PUMP
671
FILTER BOWL
674
FILTER BOWL
674
FILTER ELEMENT , Replaced By: A0000910840
677
SPRING
680
SEAL RING
683
CLAMPING BRACKET PARTS KIT
701
FITTING FUEL FILTER
710
SEAL RINGTO 000 553 03 05,000 553 18 05,
716
HEX. HEAD SCREW. SCREW BRACKET TO INJECTION PUMP
719
SPRING WASHER COVER TO THERMOSTAT HOUSING, ELIMINATED NO LONGER REQUIRED
723
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
724
SCREW PLUG OIL PASSAGE PLUG
725
SEAL RING INJECTION PUMP
726
INTERMEDIATE PIECE LINE MOUNTING
726
BANJO UNION LEAK FUEL LINE CONNECTION
727
SEAL RING VALVE TO VALVE,K 025179
728
SEAL RING INJECTION PUMP
730
BRACKET
733
SCREW BRACKET TO REAR CROSS MEMBER
736
SPRING WASHERTO 000 268 46 01
739
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
742
BRACKET INJECTION PUMP
742
BRACKET AT INJECTION PUMP
745
SCREW BEARING BRACKET TO SIDE MEMBER
748
WASHER
751
NUT SPRING BOLT
754
SCREW , Replaced By: A0029903804
757
WASHER
760
SEAL RING EXPANSION PLUG TO CYLINDER CRANKCASE
763
DRIVE GEAR INJECTION PUMP
766
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
769
WASHER FROM TERMINAL BOX TO CHARGING AIR PIPE
772
SCREW , NUR GUELTIG BEI AUFLADUNG11007293
781
LINE (CONNECTING PIPE) 10X2 MM
784
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
787
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
790
SEAL RING
793
CONNECTING PIPE CONNECTING PIPE TO INTAKE PIPE
796
SEAL RINGTO 376 131 74 01
999
INJECTION PUMP
