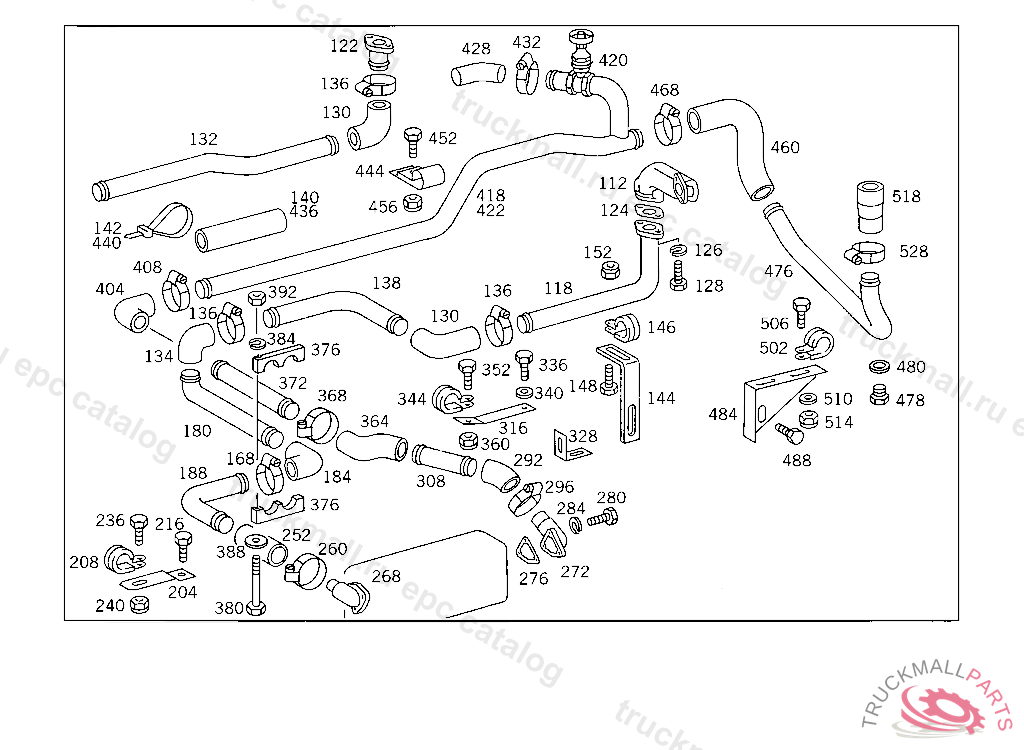

Поз.
Артикул
Описание
112
PIPE SOCKET COOLING WATER LINE
118
LINE COOLING WATER LINE
118
LINE COOLING WATER LINE TO ENGINE,000562
122
LINE FROM HOSE TO FITTING
124
GASKET COOLING WATER LINE TO OUTLET
126
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW , Replaced By: N304017010002
130
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
130
HOSE , Replaced By: A3015010782
132
COOLING WATER PIPE FROM COOLING WATER LINE TO FEED HOSE CONNECTION
134
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
136
CLAMP HOSE FASTENING 50-70X13 MM
136
CLAMP , Replaced By: N000000000672
138
LINE
140
INSULATION COOLING WATER LINE TO ENTRANCE, ORDER BY THE METER
142
LOOM TIE LINE MOUNTING 280 MM
144
BRACKET COOLING WATER LINE TO ENGINE MOUNTING
146
CLAMP SAFETY VALVE AT BRACKET
146
CLAMP SUCTION LINE TO CROSS MEMBER
148
SCREW CAB FLOOR COVERING M 6X25
152
NUT PUMP TO BRACKET
152
NUT , Replaced By: N913004006001
168
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
168
CLAMP , Replaced By: N000000000671
168
CLAMP HOSE FASTENING 50-70X13 MM
168
CLAMP , Replaced By: N000000000672
180
COOLING WATER PIPE
184
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
188
COOLING WATER PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
204
BRACKET AUTOMATIC TRANSMISSION
208
CLAMP SUCTION LINE TO CROSS MEMBER
216
SCREW BRACKET TO FRAME SIDE MEMBER
236
SCREW CAB FLOOR COVERING M 6X25
240
NUT
252
MOLDED HOSE , Replaced By: A3015010782
252
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
260
CLAMP , Replaced By: N000000000672
260
CLAMP HOSE FASTENING 50-70X13 MM
268
PIPE SOCKET OIL COOLER
272
PIPE SOCKET FROM HOSE CONNECTION TO OIL COOLER
276
GASKET COOLING WATER LINE TO OIL COOLER
280
SCREW , Replaced By: N304017008027
280
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
284
SPRING WASHER , Replaced By: N000137008212
284
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
292
HOSE , Replaced By: A3015011582
292
MOLDED HOSE , Replaced By: A3015010782
292
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
296
CLAMP , Replaced By: N000000000672
296
CLAMP HOSE FASTENING 50-70X13 MM
308
COOLING WATER PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
316
BRACKET , Replaced By: A3005010620
316
BRACKET FROM OIL COOLER TO RETURN HOSE CONNECTION
316
BRACKET FROM OIL COOLER TO RETURN HOSE CONNECTION
328
BRACKET COOLING WATER LINE TO OIL COOLER, FOR USE WITH MERCEDES-BENZ BODY UP TO IDENT NO. 046826, EXCEPT FOR 045993 NOT FOR USE WITH MERCEDES-BENZ BODY UP TO IDENT NO. 046730
328
BRACKET , Replaced By: A6205240340
328
BRACKET FUEL LINES TO TRANSMISSION
336
SCREW BRACKET TO FRAME SIDE MEMBER
340
WASHER
344
CLAMP SUCTION LINE TO CROSS MEMBER
352
SCREW CAB FLOOR COVERING M 6X25
360
NUT , Replaced By: N913004006001
360
NUT PUMP TO BRACKET
364
HOSE , Replaced By: A3015010782
364
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
368
CLAMP , Replaced By: N000000000672
368
CLAMP HOSE FASTENING 50-70X13 MM
372
COOLING WATER PIPE
376
BRACKET ,017855
380
SCREW APPARATUS PLATE M 6X100
384
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
388
WASHER , Replaced By: N009021006208
388
WASHER COMPRESSED AIR LINE TO BRACKET
392
NUT BALL PIVOT TO LEVER
404
MOLDED HOSE , Replaced By: A3015010782
404
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
408
CLAMP , Replaced By: N000000000672
408
CLAMP HOSE FASTENING 50-70X13 MM
408
CLAMP , Replaced By: N000000000671
408
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
418
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6005000372
418
LINE FROM HOSE CONNECTION TO ENTRANCE SEPARATION POINT
420
VALVE
422
LINE COOLING WATER
428
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
428
HOSE COOLING WATER LINE,021573
428
HOSE COOLING WATER LINE,021573
428
HOSE COOLING WATER LINE,021573
428
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
432
CLAMP , Replaced By: N000000000671
432
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
436
INSULATION COOLING WATER LINE TO ENTRANCE, ORDER BY THE METER
440
LOOM TIE LINE MOUNTING 280 MM
444
CLAMP SUCTION LINE TO CROSS MEMBER
452
SCREW CAB FLOOR COVERING M 6X25
452
SCREW , Replaced By: N304017008016
452
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
456
NUT
460
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
468
CLAMP , Replaced By: N000000000672
468
CLAMP HOSE FASTENING 50-70X13 MM
476
LINE FROM MOLDED HOSE TO WATER PUMP
476
LINE COOLING WATER LINE TO WATER PUMP
478
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
480
SEAL RING LINE CONNECTION
484
BRACKET COOLING WATER LINE TO ENGINE
484
BRACKET COOLING WATER LINE TO ENGINE
488
SCREW OIL LINE TO CRANKCASE
502
CLAMP OIL LINE TO BRACKET
502
CLAMP SAFETY VALVE AT BRACKET
506
SCREW CAB FLOOR COVERING M 6X25
510
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
514
NUT
518
HOSE FEED
528
CLAMP , Replaced By: N000000000672
528
CLAMP HOSE FASTENING 50-70X13 MM
528
CLAMP , Replaced By: N000000000671
528
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
999
CLAMP HOSE TO COOLING WATER PIPE
999
CLAMP BATTERY CABLE MOUNTING
999
FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N913004008001
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
CLAMP , Replaced By: N000000001641
999
SEAL RING SRREW PLUG
999
SEAL RINGTO 000 429 24 30
999
GLAND , Replaced By: A0019901967
999
SCREW BRACKET TO SUPPORT
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
SCREW , Replaced By: N000961016065
999
NUT , Replaced By: N304032008006
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SCREW , Replaced By: A0079900801
999
SCREW , Replaced By: N304017008034
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW VALVE TO CAB M 8X85
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
FITTING LINE CONNECTION
999
UNION NUT LINE CONNECTION
999
CLAMP , Replaced By: A9424310043
999
CLAMP LINE MOUNTING
999
999
999
LINE
999
999
LEVER DOUBLE LEVER
999
BOOT PULL ROD
999
PULL ROD FROM LEVER I TO LEVER II WITH KICKDOWN SWITCH
999
SUPPORTING ARM
999
SUPPORTING ARM LEFT FRONT RUBBER MOUNTING, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
HOSE
999
OUTLET ,000562
999
999
999
ENGINE SUPPORT CLUTCH END
999
COOLING WATER PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6005011524
999
999
LINE FROM HIGH PRESSURE HOSE TO CONNECTOR 2375 MM
999
BRACKET LINE MOUNTING
999
RUBBER MOUNTING ADJUSTABLE,FRONMT
999
SEAL RING24X2 MM
999
SEAL RINGWABCO
999
SCREW REDUCTION VALVE TO BRACKET
999
FITTING LINE CONNECTION
999
SEAL RING VALVE TO VALVE
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
999
VALVE REDUCTION VALVE 2 BAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE REDUCTION VALVE 3 BAR
999
VALVE , Replaced By: A0034314906
999
VALVE REDUCTION VALVE 1,2 BAR
999
SCREW SUPPORTING ARM TO TRANSMISSION CASE, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
999
ELBOW FITTING
999
ELBOW FITTING , Replaced By: A0049905371
999
SEAL CONE LINE CONNECTION
999
T-FITTING POWER STEERING
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PROTECTIVE CAPWABCO
999
SCREW. UNION SCREW LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
CONNECTOR , Replaced By: A0029905478
999
ELBOW FITTING LINE CONNECTIONS
999
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
999
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
