Поз.
Артикул
Описание

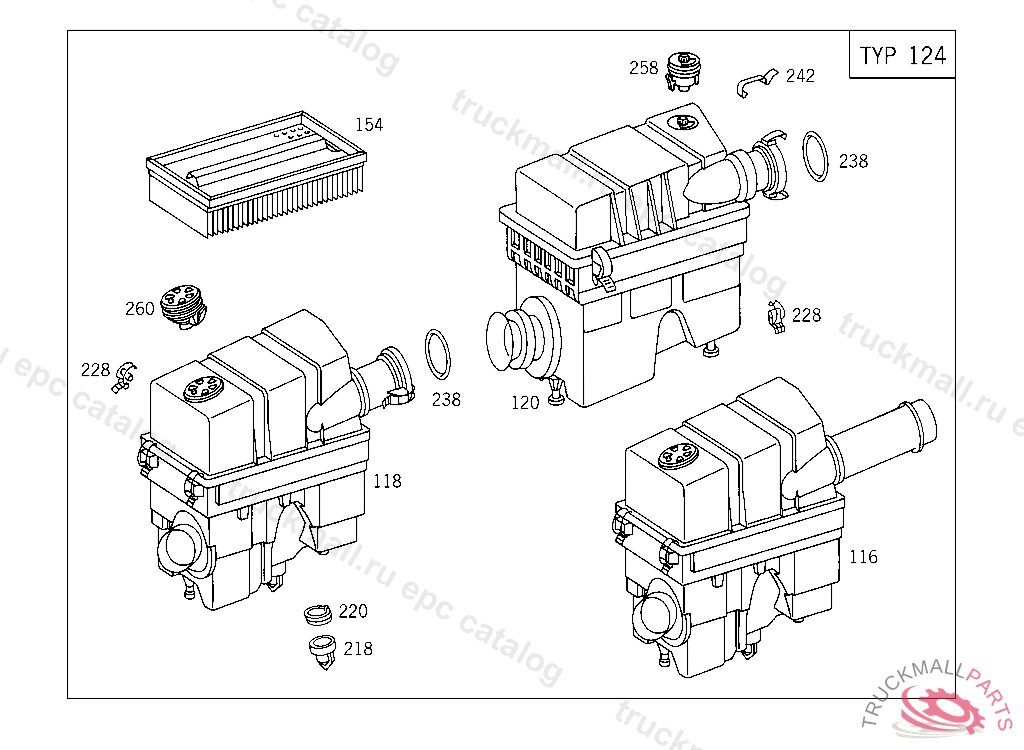

116
AIR CLEANERMANN & HUMMEL
118
AIR CLEANERMANN & HUMMEL
120
AIR CLEANERKNECHT
154
FILTER ELEMENT
154
FILTER ELEMENT
154
FILTER ELEMENT , Replaced By: A0030947104
218
VALVE (DUST DISCHARGE VALVE)
220
SEAL RING
228
FASTENER AIR CLEANER BOWL MANN & HUMMEL
228
FASTENER
228
FASTENER
228
FASTENERTO 015 094 95 02,016 094 68 02, 102.982 10/50,20/60 106104 102.982 12/52,22/62 013067 102.963 10/50,20/60 000001 102.963 12/52,22/62 000001
228
FASTENER
228
FASTENER , Replaced By: A0000941355
228
FASTENER , Replaced By: A0000941255
228
FASTENER
228
FASTENER
238
SEAL RING
238
SEAL RING
238
SEAL RING
238
SEAL RING
242
SPRING CLIP
242
SPRING CLIP
242
SPRING CLIP
258
MAINTENANCE INDICATOR
258
MAINTENANCE INDICATOR
260
MAINTENANCE INDICATOR
260
MAINTENANCE INDICATOR
999
CAP
999
REGULATOR
999
INTAKE PIPE
999
MAINTENANCE INDICATOR
999
SPRING
999
SENDER UNIT AIR CLEANER INTAKE PIPE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
SCOOP
999
HOSE
999
HOSE
999
HOSE BETWEEN MUFFLER FILTER AND LATERAL COVERING
999
HOSE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE FROM AIR CLEANER TO PIPE ELBOW, ORDER BY THE METER
999
HOSE COVERING AND MUFFLER FILTER
999
BRACKET AIR CLEANER
999
RIVET
999
HOSE
999
HOSE
999
HOSE
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
BOOT SCOOP TO AIR CLEANER
999
BUFFER HEATER UNIT
999
BOOT
999
BRACKET AIR CLEANER
999
SCREW , Replaced By: N304017006016
999
NUT BALL PIVOT TO LEVER
999
COMBINATION BOLT BRACKET TO INTAKE MANIFOLD
