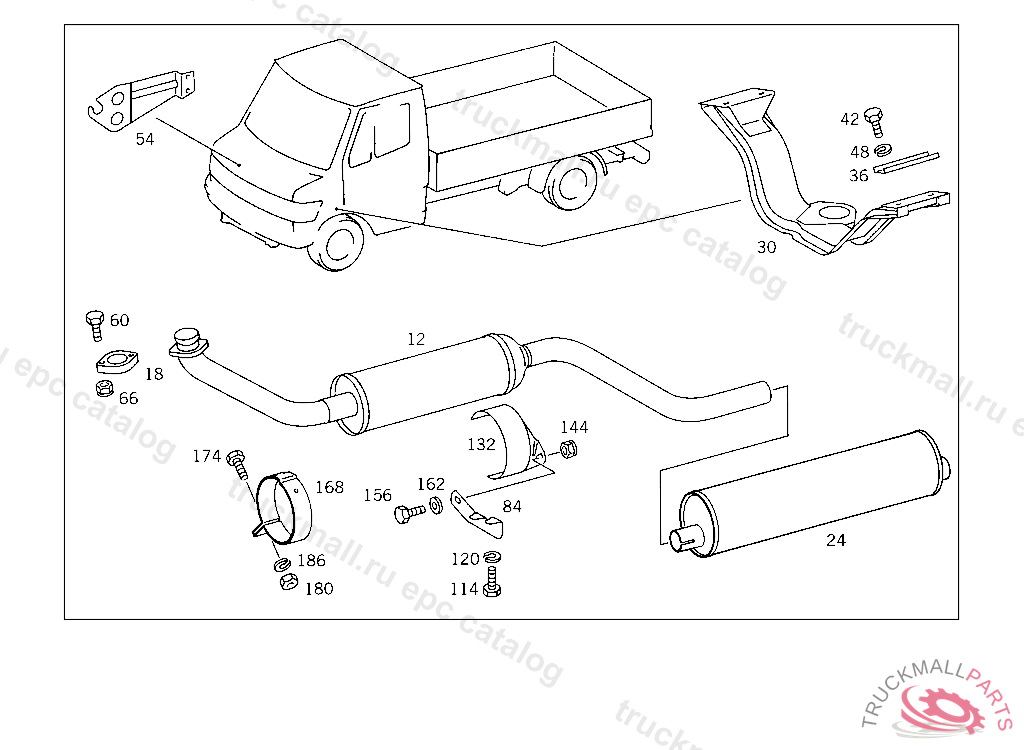

Поз.
Артикул
Описание
12
EXHAUST PIPE FRONT
18
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
18
FLANGE , FROM IDENT NO. 003 038515 ALSO INSTALLED ON 038269,038362,038363.
24
EXHAUST MUFFLER
30
ENGINE SUPPORT REAR
30
ENGINE SUPPORT REAR
36
REINFORCEMENT ENGINE REAR SUPPORT TO FRAME
42
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
48
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
54
BRACKET REVERSING SHAFT USED FOR ENGINE TIMING
60
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
60
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
66
NUT , Replaced By: A1201420072
66
HEXAGON NUT SCREENING PLATE,5 163561
84
BRACKET BRACKET TO TRANSMISSION
114
SCREW BRACKET TO CONSOLE
120
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
132
BRACKET FRONT EXHAUST PIPE, UP TO IDENT NO. 691883 EXCEPT FOR 689886,689929,690037,690093,691039,691040,691041,691042,691043,691709.
144
NUT , Replaced By: A1201420072
144
HEXAGON NUT SCREENING PLATE,5 163561
156
SCREW , Replaced By: N304017008034
156
SCREW BRACKET TO CROSS CONNECTION STRUT
162
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
168
STRAP EXHAUST PIPE TO BRACKET
174
SCREW , Replaced By: N304017008021
174
SCREW PIPE CLAMP
180
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
186
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
