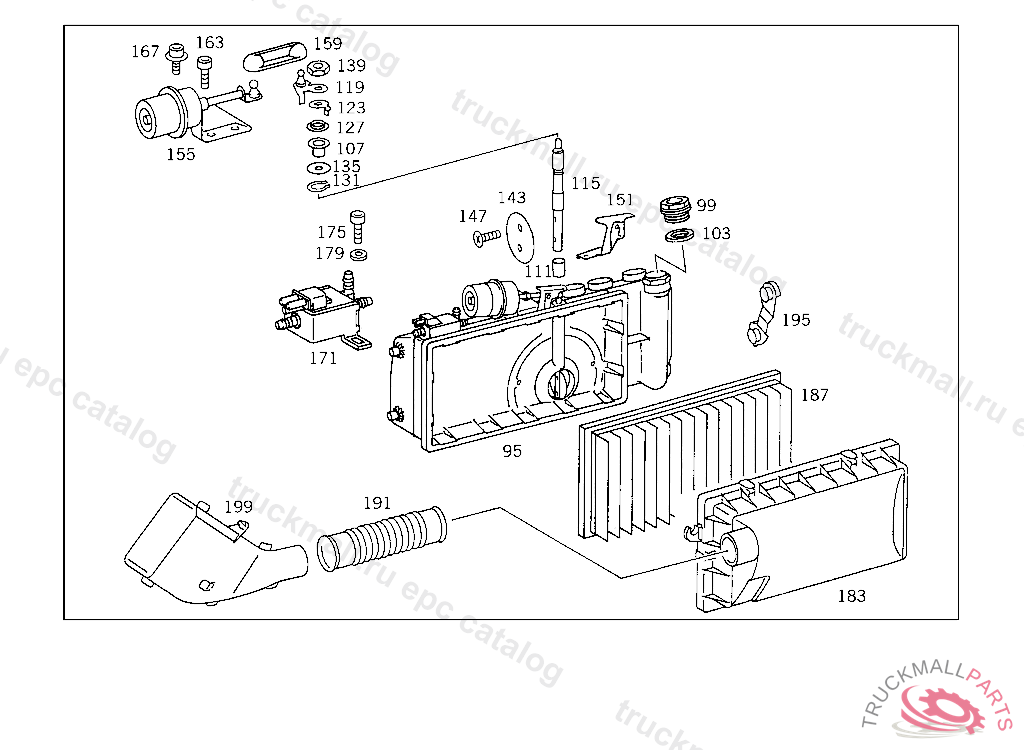

Поз.
Артикул
Описание
95
HOUSING AIR DUCT
95
HOUSING AIR DUCT
95
HOUSING , Replaced By: A6030903207
99
FITTING
103
SEAL RING
107
BUSHING
111
BUSHING
115
SHAFT , FROM MODEL YEAR'92
115
SHAFT , UP TO MODEL YEAR 92
119
LEVER , UP TO MODEL YEAR 92
119
LEVER
123
STOP , FROM MODEL YEAR'92
127
WASHER LEVER TO SHAFT
127
WASHER LEVER TO SHAFT, UP TO MODEL YEAR 92
131
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
135
FITTED WASHER AS REQUIRED 1.0 MM
139
NUT
143
THROTTLE VALVE
143
THROTTLE VALVE
147
SCREW THROTTLE VALVE TO SHAFT
151
SCREENING , UP TO MODEL YEAR 92
151
SCREENING , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 602.911 10/50,20/60 077717 602.911 12/52,22/62 015528 602.912 10/50,20/60 137422 602.912 12/52,22/62 020193, Replaced By: A6020940520
155
VACUUM BOX
155
VACUUM BOX , 602.911 10/50,20/60 067464 602.911 12/52,22/62 013826 602.912 10/50,20/60 113366 602.912 12/52,22/62 017192
155
VACUUM BOX , 602.911 10/50,20/60 067465 602.911 12/52,22/62 013827 602.912 10/50,20/60 113367 602.912 12/52,22/62 017193 UP TO MODEL YEAR 92
159
BALL SOCKET , UP TO MODEL YEAR 92
163
SCREWM 6X16
163
SCREW BEARING BRACKET TO TRANSMISSION
167
COMBINATION BOLT , Replaced By: N000000001147
167
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
171
VALVE (3/2-WAY SOLENOID VALVE)
171
VALVE , Replaced By: A0015408697
175
SCREWM 6X16
175
SCREW BEARING BRACKET TO TRANSMISSION
179
WASHER BRACKET TO HEAT SHIELD
183
COVER , Replaced By: A6030900012
183
COVER COVER TO AIR CLEANER
187
FILTER ELEMENTMANN & HUMMEL, 602.911 10/50,20/60 086698 602.911 12/52,22/62 016956 602.912 10/50,20/60 152410 602.912 12/52,22/62 022501 602.911 10/50,20/60 110887 602.911 12/52,22/62 021363 602.912 10/50,20/60 207138 602.912 12/52,22/62 033291 FROM ENGINE SEE STANDARD MICROFICHE
187
FILTER ELEMENT
191
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
195
BRACKET AIR CLEANER
199
SCOOP
999
ROD
999
ROD FROM CONTROL LEVER TO ANGULAR LEVER
999
ROD FROM ANGULAR LEVER TO INJECTION PUMP
999
BRACKET AT CONTROL LEVER BEARING BRACKET
999
BASIC ENGINE , ORDER LONG BLOCK IN COMBINATION WITH APPLICATION DATA AND ASSIGNMENT TO ENGINE
999
BASIC ENGINE , ORDER LONG BLOCK IN COMBINATION WITH APPLICATION DATA AND ASSIGNMENT TO ENGINE
999
BASIC ENGINE , ORDER LONG BLOCK IN COMBINATION WITH APPLICATION DATA AND ASSIGNMENT TO ENGINE
999
BASIC ENGINE , ORDER LONG BLOCK IN COMBINATION WITH APPLICATION DATA AND ASSIGNMENT TO ENGINE
999
LEVER ANGULAR LEVER
999
BEARING BRACKET ANGULAR LEVER
999
BRACKET ELECTRIC CABLE
999
SCREW , Replaced By: N304017006034
