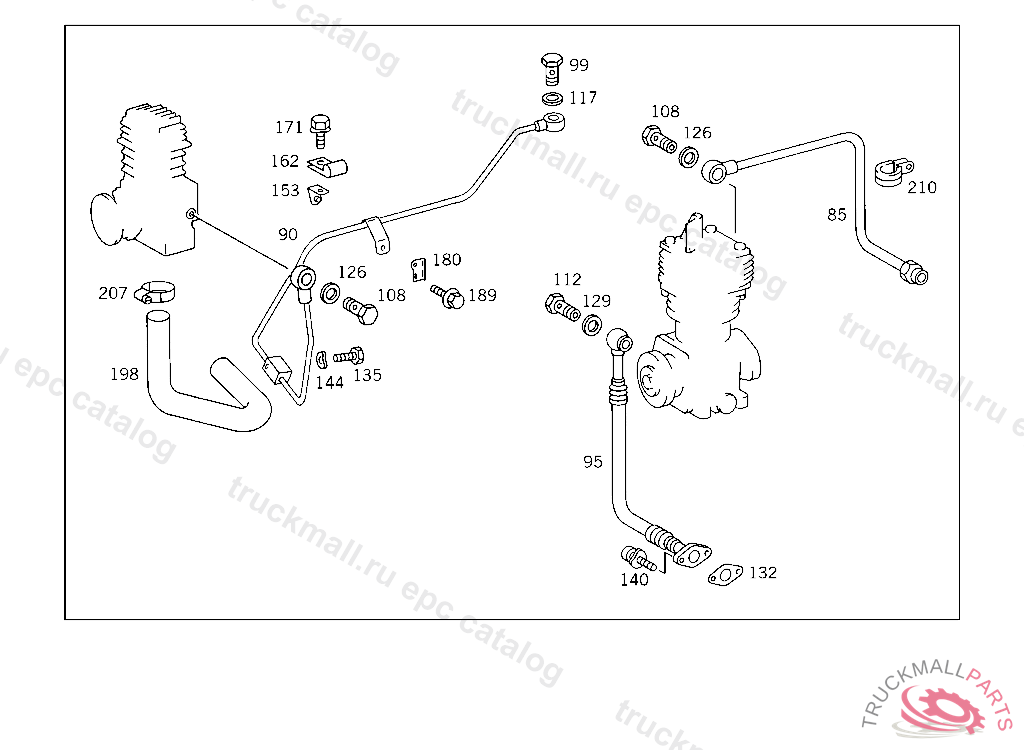

Поз.
Артикул
Описание
85
OIL LINE OIL LINE TO AIR COMPRESSOR
90
OIL LINE OIL FEED FROM OIL FILTER TO AIR COMPRESSOR
95
OIL LINE OIL LINE TO AIR COMPRESSOR
95
OIL LINE , NOT USED
95
OIL LINE , Replaced By: A6021801222
99
HOLLOW SCREW HEATING CONNECTION
108
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
112
HOLLOW SCREW OIL LINE TO PUMP, OUTLET,D 089010D 117338
117
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
126
SEAL RINGTO 001 431 72 14
126
SEAL RING RELAY VALVE,CONNECTION: "41"
129
SEAL RINGTO 376 131 74 01
132
GASKET OIL RETURN LINE TO CYLINDER CRANKCASE
135
SCREW CONNECTOR
140
COMBINATION BOLT FUEL LINE TO INTAKE MANIFOLD,A 144703MOTOR 104.990
144
SPRING WASHER LICENSE PLATE TO BRACKET
153
BRACKET ON REFRIGERANT COMPRESSOR BRACKET
162
CLAMP ,K 147121, Replaced By: N000000000319
162
CLAMP , Replaced By: A3604300143
162
CLAMP , Replaced By: N916016008200
171
COMBINATION BOLT , Replaced By: N000000000009
171
SCREW-AND-WASHER ASSEMBLY SWITCH TO BRACKET M6X12
180
BRACKET ON ENGINE SUPPORT
189
COMBINATION BOLT , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
189
COMBINATION BOLT , Replaced By: N000933006103, +001N000137006204
198
HOSE OIL RETURN FROM AIR COMPRESSOR TO OIL PAN
207
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
207
CLAMP , Replaced By: N000000000667
210
CLAMP ,K 147121, Replaced By: N000000000319
