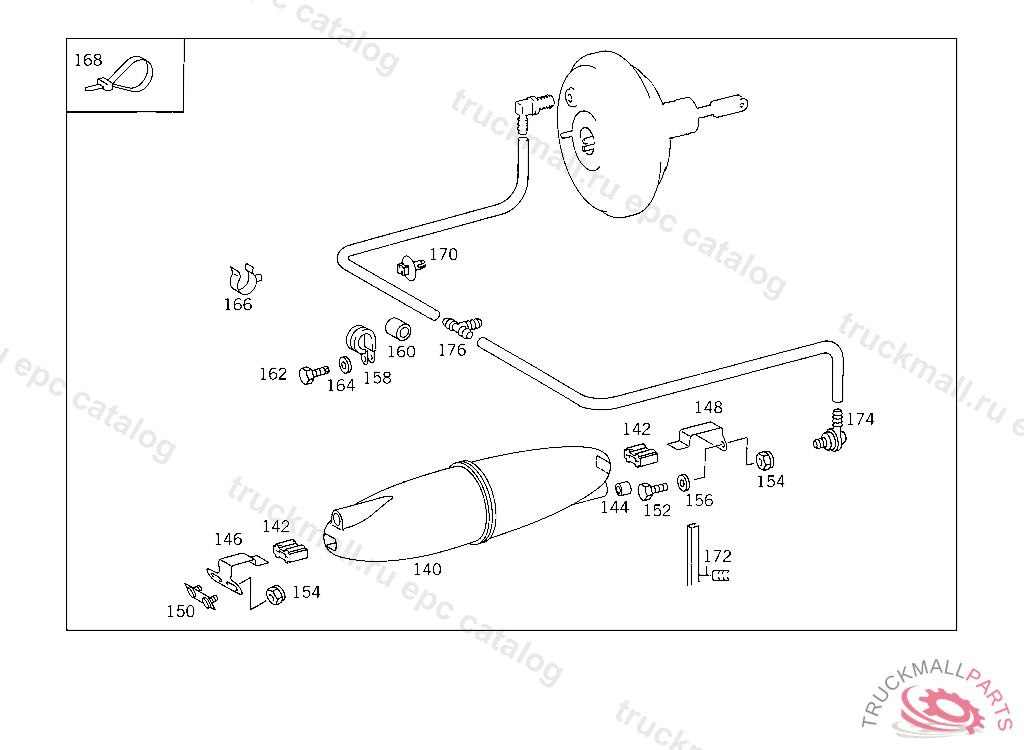

Поз.
Артикул
Описание
140
RESERVOIR VACUUM TANK 5 L
142
RUBBER BUFFER VACUUM TANK TO BRACKET
144
GASKET AT AIR RESERVOIR
146
BRACKET RESERVOIR, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
148
BRACKET RESERVOIR, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
150
BRACKET BRACKET TO FRAME, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
152
SCREW PIPE CLAMP
154
NUT STRAP TO BRACKET
156
WASHER EXHAUST MUFFLER TO STRAP
162
SCREW PUMP TO BRACKET
162
SCREW LICENSE PLATE TO BRACKET
164
WASHER COMPRESSED AIR LINE TO BRACKET
164
WASHER SWITCH TO FIRE WALL
164
WASHER , Replaced By: N009021006208
168
LOOM TIE LINE MOUNTING 280 MM
170
FASTENER BUTTON , Replaced By: A0019881581
170
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
172
EDGE GUARD SECTION FRONT PANEL,339827 ORDER BY THE METER
174
ELBOW FITTING VACUUM LINE
176
T-FITTING
