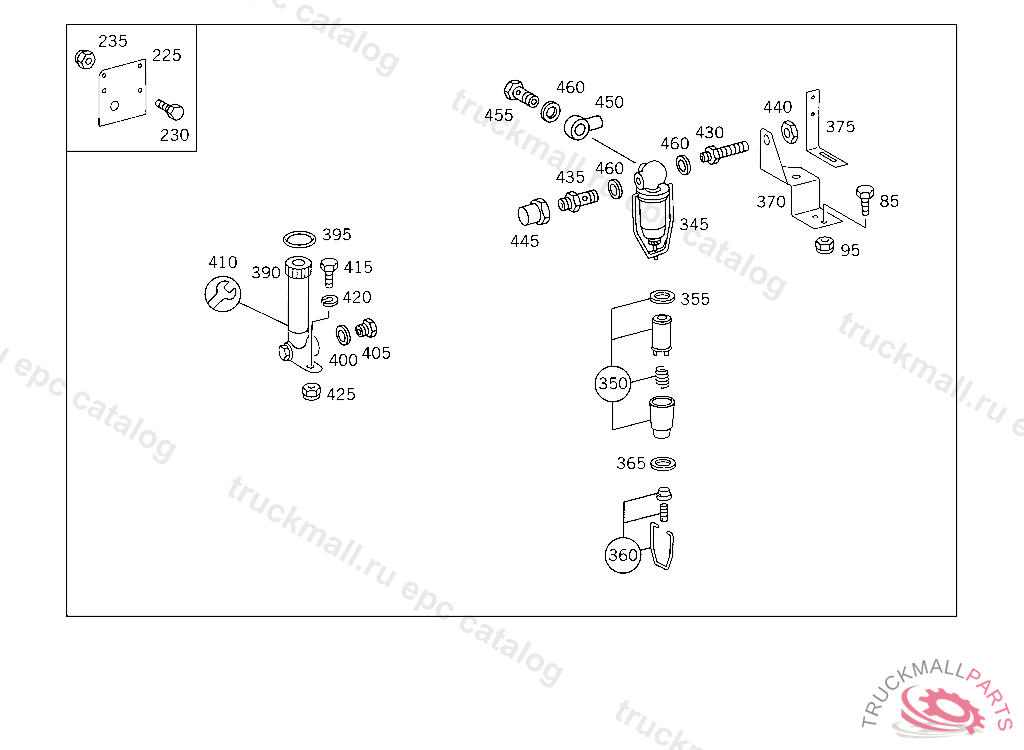

Поз.
Артикул
Описание
85
SCREW PUMP TO BRACKET
85
SCREW CAB FLOOR COVERING M 6X25
95
NUT , Replaced By: N913004006001
95
NUT PUMP TO BRACKET
225
BRACKET FUEL PUMP
230
SCREW CAB FLOOR COVERING M 6X25
235
NUT PUMP TO BRACKET
235
NUT , Replaced By: N913004006001
345
FUEL FILTER FUEL FEED PUMP
350
FILTER BOWL
355
SEAL RING
360
CLAMPING BRACKET PARTS KIT
365
SEAL RING FUEL LINE TO FEED PUMP
370
BRACKET (PRE-FILTER)
375
BRACKET (PRE-FILTER)
390
PUMP (MANUAL AUXILIARY PUMP)
395
SEAL RING
400
SEAL RING
405
TRANSFER NIPPLE. FITTING
410
REPAIR KIT VALVE
415
SCREW BRACKET TO FRAME
420
LOCK WASHER FITTING TO BRACKET
425
NUT END PIECE TO EXHAUST PIPE
425
NUT IN-LINE FILTER TO BRACKET AT SUBSTRUCTURE
430
FITTING CONNECTION OF FUEL LINES,039060 307.100035886 307.101
435
HOLLOW SCREW FITTING LINE CONNECTION
440
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
445
NUT RETURN
450
BANJO UNION LINE MOUNTING
455
HOLLOW SCREW FUEL LINE TO FEED PUMP
455
HOLLOW SCREW FEED AND RETURN
460
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
FUEL FILTER
