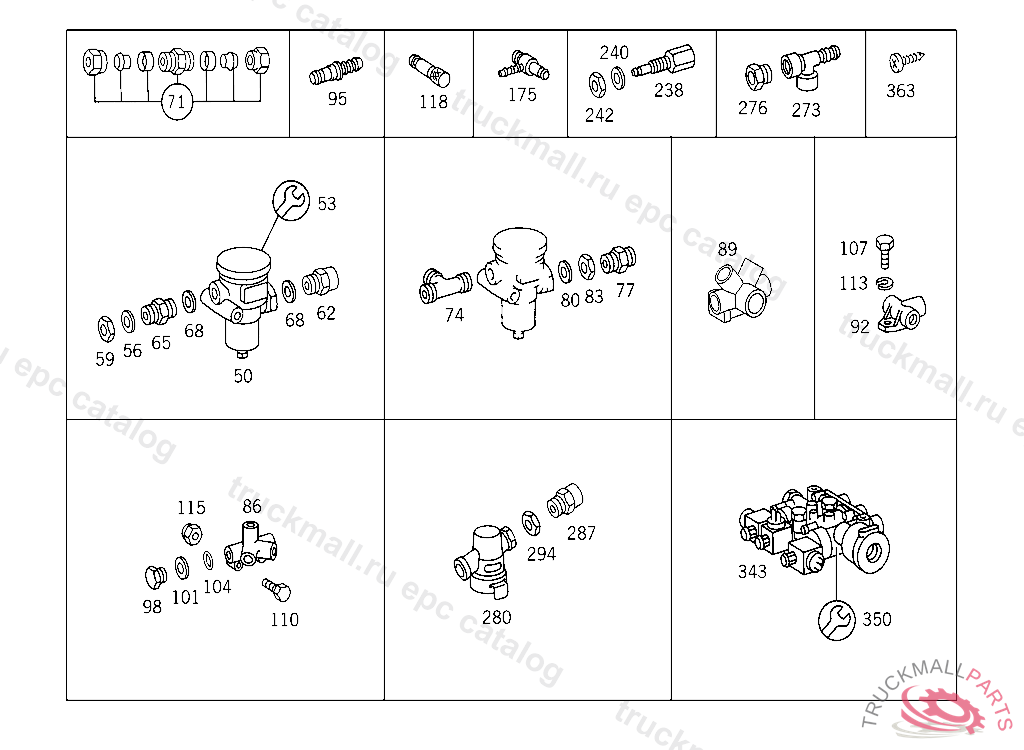

Поз.
Артикул
Описание
50
VALVE PRESSURE RELIEF
53
REPAIR KIT PRESSURE RELIEF VALVE
56
WASHER
59
NUT CHECK VALVE TO AIR RESERVOIR
62
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
65
FITTING TWO-WAY VALVE
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
FITTING (PARTS KIT),LINE RUPTURE
74
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
77
BULKHEAD FITTING BRAKE LINE COUPLING TO BRACKET
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
89
DISTRIBUTOR CENTRAL AXLE
92
DISTRIBUTOR REAR AXLE
92
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
95
CONNECTOR , Replaced By: A0029905478
98
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SCREW , Replaced By: N304017006016
107
SCREW PUMP TO BRACKET
107
SCREW , Replaced By: N304017008021
110
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
110
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
113
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
115
NUT , Replaced By: N913004006001
115
NUT , Replaced By: N913004008001
115
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
115
NUT PUMP TO BRACKET
118
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
175
T-FITTING
238
COUPLING MUFFLER TO SUBSTRUCTURE
240
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
242
NUT BRACKET TO SIDE MEMBER
273
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
276
SCREW. UNION SCREW LINE CONNECTION
280
AIR CLEANER COMPRESSED AIR LINE
287
FITTING LINE CONNECTION
294
NUT CHECK VALVE TO AIR RESERVOIR
343
VALVE REAR AXLE SELF-LEVELLING DEVICE
350
REPAIR KIT ,5 760168K 154651
363
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
999
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
999
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
999
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
999
T-FITTING PRESSURE REGULATOR ON GAS MIXER
999
COVERING AT RESERVOIR,TOP
999
BALL SOCKET LINK TO RIGHT SIDE MEMBER, NOT USED
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
