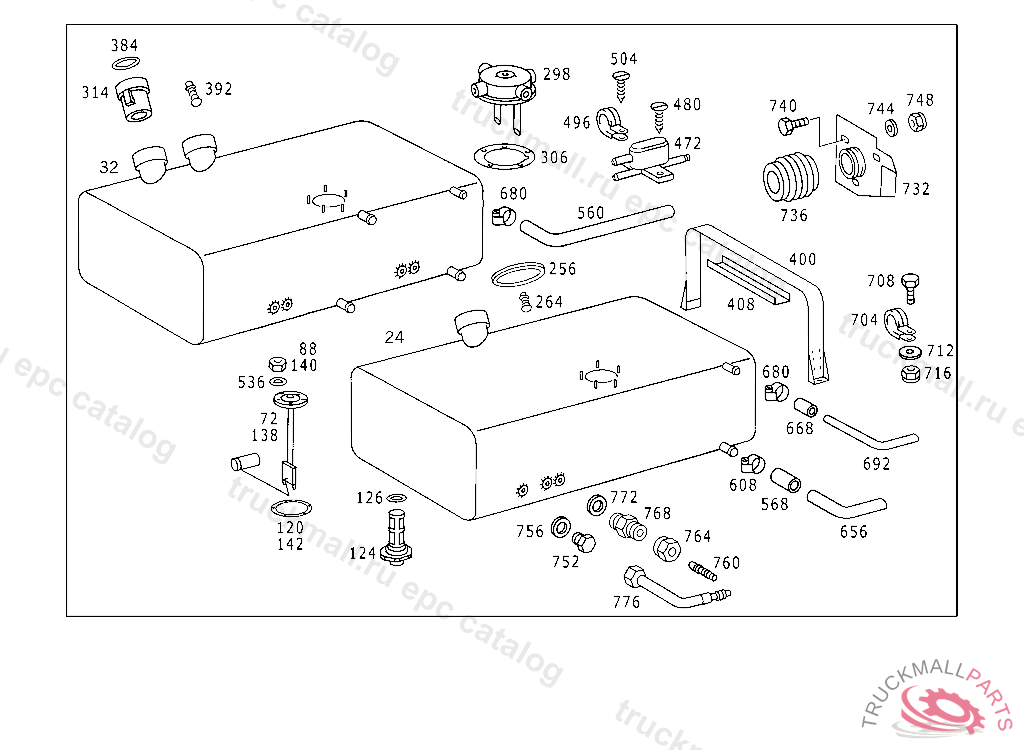

Поз.
Артикул
Описание
24
FUEL TANK LESS SENDER UNIT 110L
24
FUEL TANK250 L
24
FUEL TANK250 L
24
FUEL TANK250 L
24
FUEL TANK250 L
24
FUEL TANK400 L
24
FUEL TANK LESS SENDER UNIT 240 L
24
FUEL TANK LESS SENDER UNIT 240 L
24
FUEL TANK LESS SENDER UNIT 265 L
24
FUEL TANK250 L
24
FUEL TANK397 L
24
FUEL TANK LESS SENDER UNIT 250 L
24
FUEL TANK300 L
24
FUEL TANK265 L
24
FUEL TANK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 064505 EXCEPT FOR 060201,060256,060299,060322,060344,060552,064016., Replaced By: A3574700104, +001A3574711223
32
FUEL TANK LESS SENDER UNIT 291/45 L
32
FUEL TANK LESS SENDER UNIT 250/40 L
72
SENDER UNIT FUEL GAUGE
88
NUT TACHOGRAPH TO BRACKET
120
GASKET SENDER UNIT AND COVER TO FUEL TANK
124
FUEL STRAINER FUEL TANK
126
SEAL RING FUEL STRAINER SCREEN
138
SENDER UNIT FUEL GAUGE
140
NUT TACHOGRAPH TO BRACKET
142
GASKET SENDER UNIT AND COVER TO FUEL TANK
256
GASKET
256
GASKET
264
VALVE FUEL TANK
298
INTERMEDIATE PIECE
306
GASKET
314
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
314
FILLER CAP FUEL-OIL TANK,075828
314
FILLER CAP , Replaced By: A0004716630
384
GASKET
384
GASKET
392
VALVE FUEL TANK
400
STRAP FUEL TANK TO WHEELHOUSE,083601
408
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
472
VALVE DE-AERATION,618 115 13 091994, 618 215 11 092222
480
SHEET METAL SCREW VALVE TO COVERING
496
CLAMP ,K 147121, Replaced By: N000000000319
496
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
504
SHEET METAL SCREW BREATHER LINE TO SUBSTRUCTURE
536
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
560
HOSE FUEL COMPENSATING, ORDER BY THE METER
560
HOSE , Replaced By: A0005514156
568
HOSE , Replaced By: A3574760926
568
HOSE , Replaced By: A3574760926
568
HOSE FROM FUEL TANK TO FUEL TANK
568
HOSE CONNECTION OF FUEL TANKS
608
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
608
CLAMP BREATHER PIPE TO FUEL TANK
608
CLAMP25-40X13 MM
656
LINE FROM FUEL TANK TO FUEL TANK
656
LINE FROM FUEL TANK TO FUEL TANK
656
LINE FROM FUEL TANK TO FUEL TANK
656
LINE FROM FUEL TANK TO FUEL TANK
656
LINE FROM FUEL TANK TO FUEL TANK, UP TO IDENT NO. 064505 EXCEPT FOR 060201,060256,060299,060322,060344,060552,064016.
656
LINE FROM FUEL TANK TO FUEL TANK, UP TO IDENT NO. 064505 EXCEPT FOR 060201,060256,060299,060322,060344,060552,064016.
656
LINE FROM FUEL TANK TO FUEL TANK
656
LINE FROM FUEL TANK TO FUEL TANK
668
HOSE CONNECTION OF FUEL TANKS
680
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
680
CLAMP25-40X13 MM
692
LINE FROM FUEL TANK TO FUEL TANK, FROM IDENT NO.064506 ALSO INSTALLED ON 060201,060256,060299,060322,060344,060552,064016.
692
LINE FROM FUEL TANK TO FUEL TANK
704
CLAMP SAFETY VALVE AT BRACKET
704
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
704
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
708
SCREW SHUT-OFF VALVE TO BRACKET
708
SCREW BRACKET TO CROSS CONNECTION STRUT
708
SCREW , Replaced By: N304017008034
712
WASHER BRACKET TO LEFT SIDE MEMBER
716
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
716
NUT , Replaced By: N913004008001
732
BEARING
736
BOOT SHIFTING TUBE
736
BOOT PULL ROD
740
SCREW PIPE CLAMP
744
WASHER , Replaced By: N000125008443
744
WASHER EXHAUST MUFFLER TO STRAP
748
NUT , Replaced By: N913004008001
752
SCREW PLUG FUEL TANK
756
SEAL RINGTO 000 553 03 05,000 553 18 05,
760
FITTING RETURN LINE
764
UNION NUT RETURN
768
FITTING FEED LINE AND RETURN LINE
772
GASKET FUEL TANK
776
CONNECTOR LINE CONNECTION
999
SENDER UNITTO 612 470 32 01
999
LINE FROM FUEL TANK TO FUEL TANK
999
FUEL TANK
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 190 L,093523
999
HOSE
999
HOSE FROM FUEL TANK TO ADDITIONAL TANK
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
FUEL TANK220 L,050329
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 114 L
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK),075828
999
FUEL TANK LESS SENDER UNIT 270 L,075828
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK)
999
FILLER NECK
999
FUEL TANK
999
STRAP
999
FUEL TANK LESS SENDER UNIT 76 L
999
STRAP
999
INSULATION AERATION/DEAERATION
999
GASKETTO 612 470 22 01
999
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
