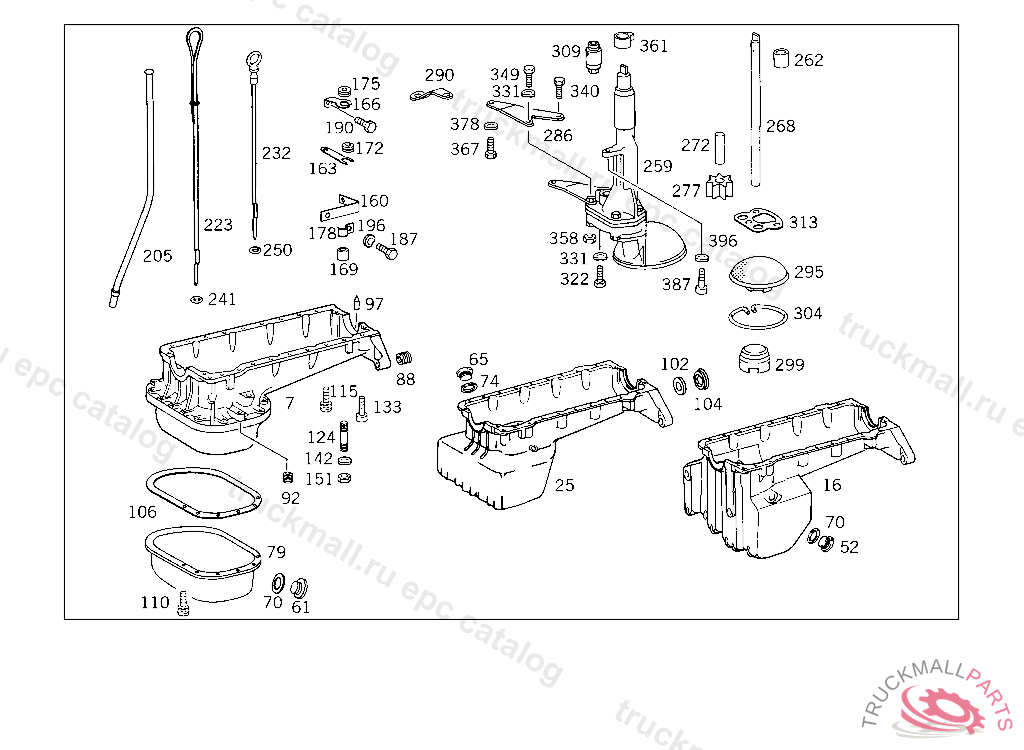

Поз.
Артикул
Описание
7
OIL PAN , Replaced By: A1150101713
7
OIL PAN
7
OIL PAN
7
OIL PAN , Replaced By: A1150101813
7
OIL PAN
16
OIL PAN
16
OIL PAN
25
OIL PAN
25
OIL PAN
25
OIL PAN
52
SCREW PLUG , UP TO ENGINE 921 001982 927 000355 928 000589 929 000007
52
SCREW PLUG , Replaced By: A4039970230
52
SCREW PLUG
61
SCREW PLUG
61
SCREW PLUG
61
SCREW PLUG , Replaced By: A0029973430
65
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
70
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
70
SEAL RING AT AIR COMPRESSOR
70
SEAL RING COMPRESSOR
74
SEAL RING LINE CONNECTION
79
OIL PAN LOWER PART
79
OIL PAN LOWER PART,O 942 000031919 001651
88
THREADED INSERT
92
THREADED INSERT (AT OIL PAN)
97
SAFETY PIN. PIN ,A 003512
102
SCREW PLUG CYLINDER CRANKCASE,RIGHT
104
SEAL RING OIL COOLER CONNECTION
104
SEAL RING , Replaced By: N007603038101
106
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6160140122
106
GASKET , Replaced By: A1210140922
106
GASKET , Replaced By: A1210140922
106
GASKET LOWER PART OF OIL PAN TO UPPER PART
106
GASKET , 910 036971919 001651
110
COMBINATION BOLT
110
SCREW BEARING BRACKET TO TRANSMISSION
115
SCREW BEARING BRACKET TO TRANSMISSION
115
COMBINATION BOLT FUEL THERMOSTAT TO ENGINE SUPPORT, 91110/50,20/60042559 91112/52,22/62009893 91210/50,20/60066314 91212/52,22/62010998
115
COMBINATION BOLT
115
COMBINATION BOLT
124
STUD BOLT COVER TO CASE
133
SCREW OIL PAN TO CYLINDER CRANKCASE
133
SCREW OIL PAN TO CYLINDER CRANKCASE
133
SCREW , Replaced By: N000912008108
142
SPRING WASHER , Replaced By: N000137008212
142
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
151
NUT
160
BRACKET OIL DIPSTICK GUIDE TUBE
163
BRACKET OIL DIPSTICK GUIDE TUBE
166
BRACKET OIL DIPSTICK GUIDE TUBE AND HEATER PLUG CABLE
169
HOSE
172
GROMMET
175
GROMMET O.D., 36 MM
178
CLAMP TO MOUNT MAIN CABLE HARNESS
187
SCREW LICENSE PLATE TO BRACKET,4 300861
190
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
190
SCREW , Replaced By: N304017008039
196
SPRING WASHER LICENSE PLATE TO BRACKET
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
205
GUIDE TUBE
223
OIL DIPSTICK
223
OIL DIPSTICK
232
OIL DIPSTICK
232
OIL DIPSTICK
232
OIL DIPSTICK
232
OIL DIPSTICK ,919 001651
232
OIL DIPSTICK , FROM OENGINE 921 001983 927 000356 928 000590 929 000008
232
OIL DIPSTICK615 MM
241
DICHTRING. SEAL RING , UP TO ENGINE 920 10/50,20/60 078254 920 12/52,22/62 021535 923 10/50,20/60 103751 923 12/52,22/62 018341 924 10/50,20/60 002512 924 12/52,22/62 000160 926 10/50,20/60 005169 926 12/52,22/62 000174 921 004155 927 000787 928 000932 929 000007 933 000043
250
SEAL RING HAND BRAKE LEVER
250
SEAL RING *** TO 615 010 21 72
250
SEAL RING
259
OIL PUMP
259
OIL PUMP , FROM ENGINE 923 10/50,20/60 225338 923 12/52,22/62 042930 926 10/50,20/60 019494 926 12/52,22/62 000826
259
OIL PUMP
259
OIL PUMP
259
OIL PUMP
259
OIL PUMP
259
OIL PUMP
259
OIL PUMP
259
OIL PUMP
262
BEARING BUSHING, TOP. BUSHING
268
DRIVE SHAFT
268
DRIVE SHAFT
272
OIL PUMP SHAFT
277
GEAR
277
GEAR
286
BRACKET
290
BRACKET
295
STRAINER. SUCTION BASKET
295
SUCTION BASKET (STRAINER)
295
SUCTION BASKET , FROM ENGINE 920 10/50,20/60 040692 920 12/52,22/62 009338 923 10/50,20/60 044165 923 12/52,22/62 006955 924 10/50,20/60 001075 924 12/52,22/62 000048 926 10/50,20/60 001916 926 12/52,22/62 000080
299
ADAPTER , Replaced By: A1161860007
299
ADAPTER , FROM ENGINE 920 10/50,20/60 040692 920 12/52,22/62 009338 923 10/50,20/60 044165 923 12/52,22/62 006955 924 10/50,20/60 001075 924 12/52,22/62 000048 926 10/50,20/60 001916 926 12/52,22/62 000080
304
SNAP RING
309
PRESSURE RELIEF VALVETO 616 180 04 01,617 180 07 01
309
PRESSURE RELIEF VALVETO 616 180 02 01,617 180 04 01
309
PRESSURE RELIEF VALVE
313
GASKET , UP TO ENGINE 923 10/50,20/60 166002 923 12/52,22/62 031860 926 10/50,20/60 010645 926 12/52,22/62 000458 920,924 UNTIL PRODUCTION STOP
322
SCREW OIL LINE TO CRANKCASE
331
SPRING WASHER LICENSE PLATE TO BRACKET
340
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
340
SCREW , Replaced By: N304014006004
340
SCREW BRACKET TO CROSS MEMBER
349
SCREW DISTRIBUTOR TO BRACKET,4 481288
349
SCREW , Replaced By: N000933006151
349
SCREW , Replaced By: N304014006005
349
SCREW PLATE TO VALVE M 6X70
349
SCREW DISTRIBUTOR TO CAB
358
NUT OIL TANK TO BRACKET
358
NUT , Replaced By: N913002006009
361
CAM
367
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
367
SCREW , Replaced By: N304017008016
378
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
387
SCREW INTERMEDIATE FLANGE TO CYLINDER CRANKCASE,340.919 002-007,010-014 104743
387
SCREW , Replaced By: N007984008003
387
SCREW BRACKET TO INTAKE MANIFOLD
396
SPRING WASHER , Replaced By: N000137008212
396
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
BRACKET
999
GUIDE TUBE
999
OIL PAN , UP TO ENGINE 921 001982 927 000355 928 000589 929 000007 FROM ENGINE 920 10/50,20/60 040692 920 12/52,22/62 009338 923 10/50,20/60 044165 923 12/52,22/62 006955 924 10/50,20/60 001075 924 12/52,22/62 000048 926 10/50,20/60 001916 926 12/52,22/62 000080 UP TO ENGINE 900 000012 923 10/50,20/60 209809 923 12/52,22/62 040405 926 10/50,20/60 016831 926 12/52,22/62 000712, Replaced By: A1150100428, +001N007603012110, +001N007604012102
999
OIL PAN
999
OIL PAN , 912 10/50,20/60 114372 912 12/52,22/62 011976 913 10/50,20/60 057023 913 12/52,22/62 001678 912 10/50,20/60 367375 912 12/52,22/52 039858 913 10/50,20/60 270863 913 12/52,22/62 007522, Replaced By: A1150101813, +002N000137008202, +002N000934008013
999
OIL PAN , Replaced By: A1150102013
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6160140122
999
OIL PUMP
999
OIL PUMP
999
OIL PUMP , Replaced By: A1151801301, +001A1141800215
999
SCREW PLUG , Replaced By: A1239970430
999
SCREW PLUG , Replaced By: A4039970230
999
SCREW PLUG
999
GUIDE TUBE
999
OIL DIPSTICK
999
OIL PAN , Replaced By: A6150104113
999
OIL PAN , FROM OENGINE 921 001983 927 000356 928 000590 929 000008 UP TO ENGINE 922 000028 923 10/50,20/60 194773 923 12/52,22/62 037477 926 10/50,20/60 014596 926 12/52,22/62 000612 933 000088, Replaced By: A6150104013, +002N000137008202, +002N000934008013
999
OIL DIPSTICK , Replaced By: A6150102372
999
OIL PAN , Replaced By: A1150101713
999
BRACKET
999
GUIDE TUBE ,615.919 002112, Replaced By: A6150181516
999
BRACKET , FROM ENGINE 923 10/50,20/60 142463 923 12/52,22/62 026810 926 10/50,20/60 007797 926 12/52,22/62 000298 UP TO ENGINE 923 10/50,20/60 152210 923 12/52,22/62 028851 926 10/50,20/60 008633 926 12/52,22/62 000336, Replaced By: A6150180640, +001A1150181216
999
GUIDE TUBE , Replaced By: A6150181216
999
GUIDE TUBE ,615.919 002112, Replaced By: A6150181516
999
GUIDE TUBE , 616.918 002010 617.919 000145 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6170180216
999
SUCTION BASKET , Replaced By: A6151800555
999
OIL PUMP , Replaced By: A1151800301
999
OIL PAN , Replaced By: A6160100913
999
BRACKET , Replaced By: A6150180640
999
OIL PUMP , Replaced By: A6161800401
999
OIL PAN
999
OIL PUMP , Replaced By: A6171800701
999
GUIDE TUBE , Replaced By: A1140180116, +001A6150100472, +001A1879950037, +001A6219970482, +001N000084006134, +001N000137006101
999
SCREW , Replaced By: N000933006151
999
SCREW , Replaced By: N304014006004
999
CLAMPING SLEEVE
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
COMBINATION BOLT OIL PAN TO CYLINDER CRANKCASE
