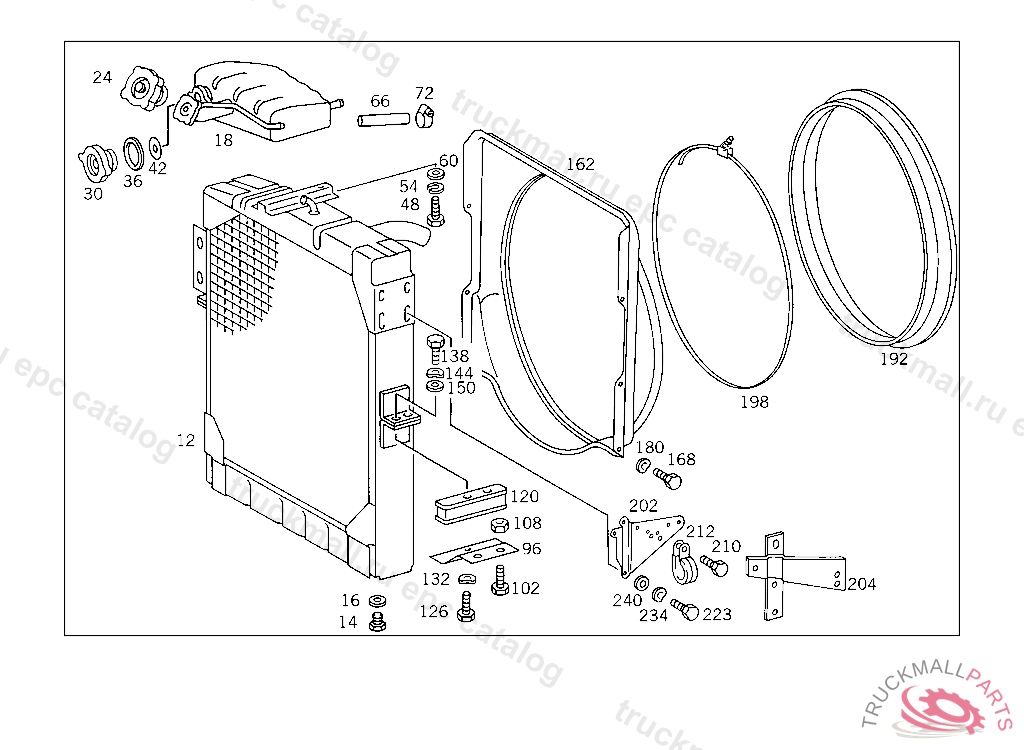

Поз.
Артикул
Описание
12
RADIATOR WATER BEHR
14
SCREW PLUG WATER DRAIN
16
SEAL RING FUEL LINE TO FEED PUMP
18
TANK EXPANSION TANK
24
RADIATOR CAP FILLER NECK
24
RADIATOR CAP FILLER NECK
30
RADIATOR CAP CENTRAL
30
RADIATOR CAP CENTRAL
36
GASKET O.D., 52 MM
42
GASKET O.D., 37 MM
48
SCREW , Replaced By: N304017008016
48
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
WASHER , Replaced By: N000125008443
60
WASHER EXHAUST MUFFLER TO STRAP
66
HOSE OVERFLOW, EXPANSION TANK
72
CLAMP , Replaced By: N916017011001
72
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
102
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
102
SCREW , Replaced By: N308676012026
108
NUT SUPPORT TO SIDE MEMBER
126
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
132
SPRING WASHER STEERING COLUMN BRACKET TO CAB
138
SCREW REAR EXHAUST PIPE TO MUFFLER
138
SCREW EXHAUST PIPE TO BRACKET
144
SPRING WASHER STEERING COLUMN BRACKET TO CAB
150
WASHER , Replaced By: N000125010532
150
WASHER RADIATOR TO RUBBER MOUNTING
162
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
168
SCREW PUMP TO BRACKET
168
SCREW , Replaced By: N304017006016
180
SPRING WASHER LICENSE PLATE TO BRACKET
202
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
204
BRACKET OI DIPSTICK GUIDE TUBE
204
BRACKET OIL DIPSTICK TO RADIATOR
210
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
SCREW , Replaced By: N304017008016
212
CLAMP OIL DIPSTICK TO RADIATOR
223
SCREW COVER PLATE TO BRACKET
234
SPRING WASHER LICENSE PLATE TO BRACKET
240
WASHER , Replaced By: N009021006208
240
WASHER COMPRESSED AIR LINE TO BRACKET
999
RADIATOR , Replaced By: A0015010901
