Поз.
Артикул
Описание

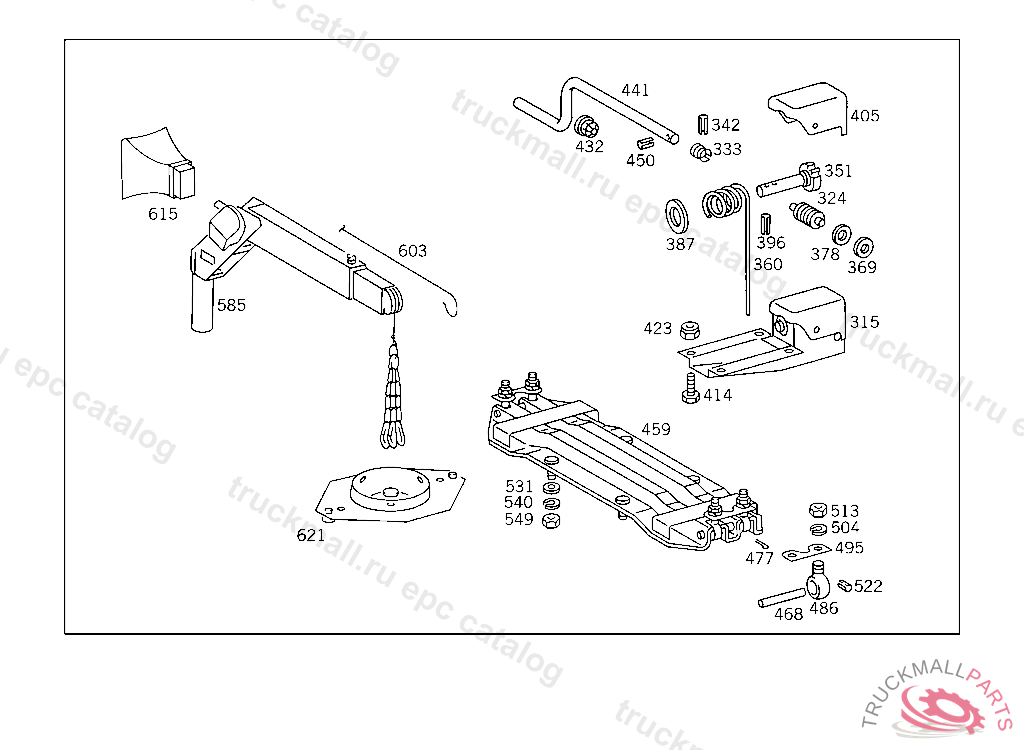

315
SPARE WHEEL HOIST
324
WORM
324
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
333
BUSHING
342
CLAMPING SLEEVE CRANK TO BUSHING
351
STOP GEAR ,5 127459, Replaced By: A6204030483, +001A6204030085, +001A6179900540
351
STOP GEAR SPARE WHEEL HOIST
360
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
360
WIRE CABLE
369
WASHER WORM AND SHAFT TO BRACKET,5 127459
369
WASHER WORM AND RATCHET WHEEL TO BRACKET
378
DISC SPRING WORM AND SHAFT TO BRACKET
387
WASHER WORM AND SHAFT TO BRACKET
396
CLAMPING SLEEVE , Replaced By: N308752008000
396
CLAMPING PIN BRACKET TO SUPPORT
405
COVER PLATE SPARE WHEEL HOIST
414
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
423
NUT , Replaced By: N910113010000
423
NUT STRAP TO BRACKET
432
BUSHING CRANK
441
CRANK SPARE WHEEL HOIST
450
CLAMPING SLEEVE CRANK TO BUSHING
459
BRACKET SPARE WHEEL MOUNTING,K 058474
459
BRACKET SPARE WHEEL MOUNTING,K 058473
468
PIN AT BRACKET
477
COTTER PINROCKINGER TYP 260 G140
486
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
486
SCREW , Replaced By: A6519900023
495
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
504
LOCK WASHERROCKINGER TYP 59 G140,59 G150
513
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
513
NUT , Replaced By: N308673016001
522
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
531
WASHER SPARE WHEEL TO BRACKET
540
LOCK WASHER SPARE WHEEL TO BRACKET
549
NUT , Replaced By: N308673020002
549
NUT , Replaced By: N308674020000
549
NUT REAR SPRING TO REAR AXLE
999
NUT STRAP TO SUPPORT
999
DISC WHEEL , Replaced By: A3854001302
999
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3529900802
999
SCREW SPARE WHEEL TO CROSS MEMBER
999
SHIM SPARE WHEEL TO CROSS MEMBER
999
VALVE , Replaced By: A0004017113
