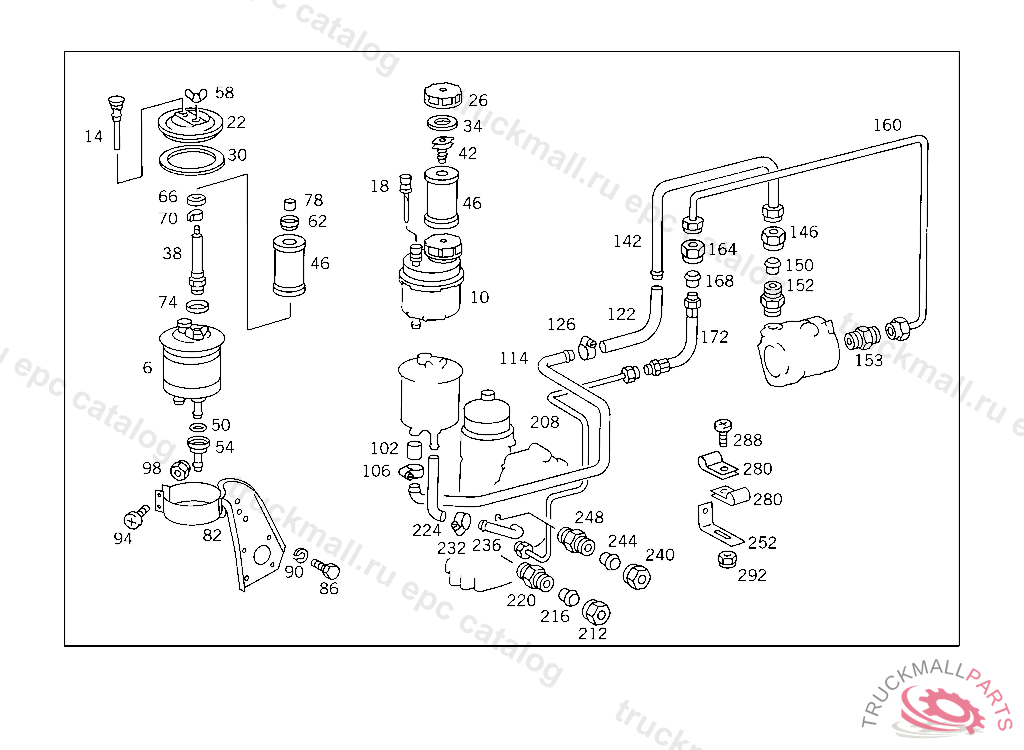

Поз.
Артикул
Описание
6
TANK , Replaced By: A0004664502
10
TANK OIL
14
PIPETO 000 466 38 02
18
OIL DIPSTICK
18
OIL DIPSTICK , Replaced By: A0004660867
22
COVERTO 000 466 38 02
26
FILLER CAP
30
SEAL RINGTO 000 466 38 02
34
SEAL RING
38
FILTER CARRIERTO 000 466 38 02
42
BRACKET
46
FILTER
50
SEAL RINGTO 000 466 38 02
54
CONNECTORTO 000 466 38 02
58
NUTTO 000 466 38 02
62
CENTERING RINGTO 000 466 38 02
66
SPACER WASHERTO 000 466 38 02
66
WASHER , Replaced By: A9402680552
70
SPACER TUBETO 000 466 38 02
74
COVER PLATETO 000 466 38 02
78
RUBBER SLEEVETO 000 466 38 02
82
BRACKET OIL TANK
82
BRACKET OIL TANK
86
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
86
SCREW , Replaced By: N304017010028
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
SCREW OIL TANK TO BRACKET
98
NUT PUMP TO BRACKET
98
NUT , Replaced By: N913004006001
102
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
102
HOSE , Replaced By: A3859971582
102
HOSE , Replaced By: A3859971582
106
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
106
CLAMP , Replaced By: N000000000667
114
LINE , NOT USED
114
LINE FROM OIL TANK TO HOSE, NOT USED
122
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
122
HOSE , Replaced By: A3859971582
126
CLAMP25-40X13 MM
126
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
126
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
126
CLAMP , Replaced By: N000000000667
142
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP 22X1,5 MM,5 360279
146
UNION NUT LINE CONNECTION, Replaced By: N000000006243
150
SEAL CONE LINE CONNECTION
150
GLAND , Replaced By: A0019901267
152
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
153
FITTING DELIVERY LINE TO PUMP
160
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 033177
164
UNION NUT LINE CONNECTION, Replaced By: N000000006239
168
SEAL CONE LINE CONNECTION
168
GLAND , Replaced By: A0019901967
172
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
172
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
172
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
208
LINE , NOT USED
208
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 466861
212
UNION NUT LINE CONNECTION, Replaced By: N000000006239
216
SEAL CONE LINE CONNECTION
216
GLAND , Replaced By: A0019901967
220
SCREW-IN FITTING DELIVERY LINE TO PUMP
224
HOSE , NOT USED
224
HOSE , Replaced By: A3859971682
224
HOSE , Replaced By: A6999974082
232
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
232
CLAMP HOSE TO FITTING AND TO OIL TANK
236
LINE FROM STEERING TO OIL TANK
240
UNION NUT LINE CONNECTION
244
GLAND LINE CONNECTION
248
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
252
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
280
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
280
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
280
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
288
SCREW DELIVERY AND SUCTION LINES TO BRACKET
292
NUT PUMP TO BRACKET
292
NUT , Replaced By: N913004006001
999
NUT DRAG LINK END M 24X1.5
999
PROTECTIVE CAP
