Поз.
Артикул
Описание

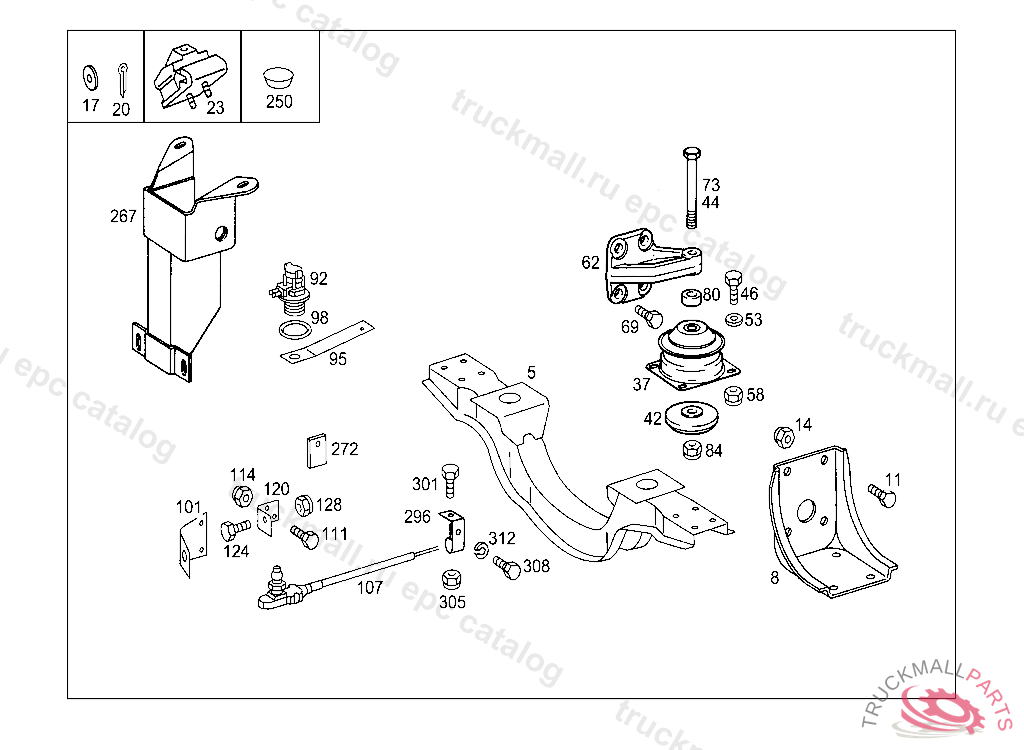

5
ENGINE CROSS MEMBER REAR
8
BRACKET STAYS TO SIDE MEMBER,REAR
11
SCREW END PIECE TO EXHAUST PIPE M 10X25
14
NUT , Replaced By: N910113010000
14
NUT STRAP TO BRACKET
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
WASHER COMPRESSED AIR LINE TO BRACKET
20
COTTER PIN LEVER TO ROD
20
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
23
RUBBER MOUNTING FRONT
23
RUBBER MOUNTING , Replaced By: A6152400317
23
RUBBER MOUNTING , Replaced By: A6152400317
23
RUBBER MOUNTING , Replaced By: A6152400317
37
RUBBER MOUNTING REAR, FROM IDENT NO. 015755 ALSO INSTALLED ON 015634-015658
42
WASHER CAB SUSPENSION,FRONT
44
SCREW BRACKET TO SIDE MEMBER
44
SCREW , Replaced By: N304017010002
46
SCREW END PIECE TO EXHAUST PIPE M 10X25
46
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
WASHER RADIATOR TO RUBBER MOUNTING
53
WASHER , Replaced By: N000125010532
58
NUT STRAP TO BRACKET
58
NUT , Replaced By: N910113010000
62
SUPPORTING ARM REAR
69
SCREW SUPPORTING ARM TO HOUSING M 16X35
69
SCREW , Replaced By: N304017016004
73
SCREW SUPPORT TO TRANSFER CASE SUPPORT
73
HEXAGON HEAD BOLT. SCREW TORSION BAR TO BRACKET
73
SCREW , Replaced By: N308765016004
80
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
84
NUT CONSOLE TO SUPPORT
84
NUT , Replaced By: N910113016001
92
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
92
KICK-DOWN SWITCH , Replaced By: A0003000141
95
BRACKET KICK-DOWN SWITCH,4 282707
98
SEAL RING KICK-DOWN SWITCH
101
ANGLE KICK-DOWN SWITCH,4 282707
107
SWITCH KICK-DOWN SWITCH
111
SCREW , Replaced By: N304017006020
111
SCREW LICENSE PLATE TO BRACKET
114
NUT , Replaced By: N913004006001
114
NUT PUMP TO BRACKET
120
BRACKET KICK-DOWN SWITCH,4 282707
124
SCREW CAB FLOOR COVERING M 6X25
124
SCREW COVER PLATE TO BRACKET
128
NUT BALL PIVOT TO LEVER
128
NUT , Replaced By: N913004006001
128
NUT PUMP TO BRACKET
250
PLUG LOCKING CAP TO CAB FLOOR,4 282708
267
BRACKET PEDAL UNIT,4 282708
272
BRACKET CLUTCH PEDAL TO CONSOLE,4 282708
296
CLAMP
301
SCREW COVER PLATE TO COVER PLATE M 6 X 10
301
SCREW , Replaced By: N304017006034
305
NUT PUMP TO BRACKET
305
NUT , Replaced By: N913004006001
308
SCREW LICENSE PLATE TO BRACKET,4 300861
312
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
RESERVOIR , Replaced By: A1152900115
999
MASTER CYLINDER , Replaced By: A0012958706
999
CONNECTOR OIL DELIVERY LINE
999
GROMMET ,D 314239
999
RUBBER BUFFER BRACKET TO SUPPORT
999
LOOM TIE LINE MOUNTING 280 MM
999
NEEDLE BEARING , Replaced By: A0119813410
999
PAD , Replaced By: A1072910182
999
SPRING (DEAD CENTER SPRING) 35 MM
999
SPRING RETAINER SPRING TO PUSH ROD
999
STOP
999
STOP
999
SPRING RETAINER SPRING TO PUSH ROD
999
HOSE FROM CLUTCH HOSE TO SLAVE CYLINDER
999
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
999
RUBBER MOUNTING REAR
999
ENGINE SUPPORT REAR
999
HUB BEARING TUBE
999
PEDAL
999
HUB
999
BUSHING CLUTCH PEDAL
999
ENGINE CROSS MEMBER REAR NO.3
999
ROD ,6150698 0000014 2827078 000001-8 001702
999
RADIATORBEHR,4 755510
999
BRACKET FLEXIBLE SHAFT
999
PEDAL PLATE , Replaced By: A3162900024
999
PEDAL CLUTCH
999
ROD ,4 282708
999
STOP
999
SPACER TUBE CLUTCH PEDAL
999
PIN CLUTCH PEDAL
999
LEVER
999
BRACKET BRACKET TO SIDE MEMBER,4 438716
999
LOCK HYDRAULIC LINES TO FRAME,4 438716
999
BOOT ON PISTON ROD AND PIN
999
BOOT MASTER CYLINDER THRU CAB FLOOR
999
ENGINE CROSS MEMBERNO.3
999
BRACKET LINE MOUNTING
999
PAD BRAKE AND CLUTCH LEVERS
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
999
LINE1450 MM
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 1700 MM,4 478329
999
RUBBER MOUNTING
999
RUBBER MOUNTING ENGINE FRONT SUSPENSION
999
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
999
LOCK
999
CLAMP , Replaced By: N916016008200
999
ROD FROM CLUTCH PEDAL TO MASTER CYLINDER
999
ROD , Replaced By: A3822908419
