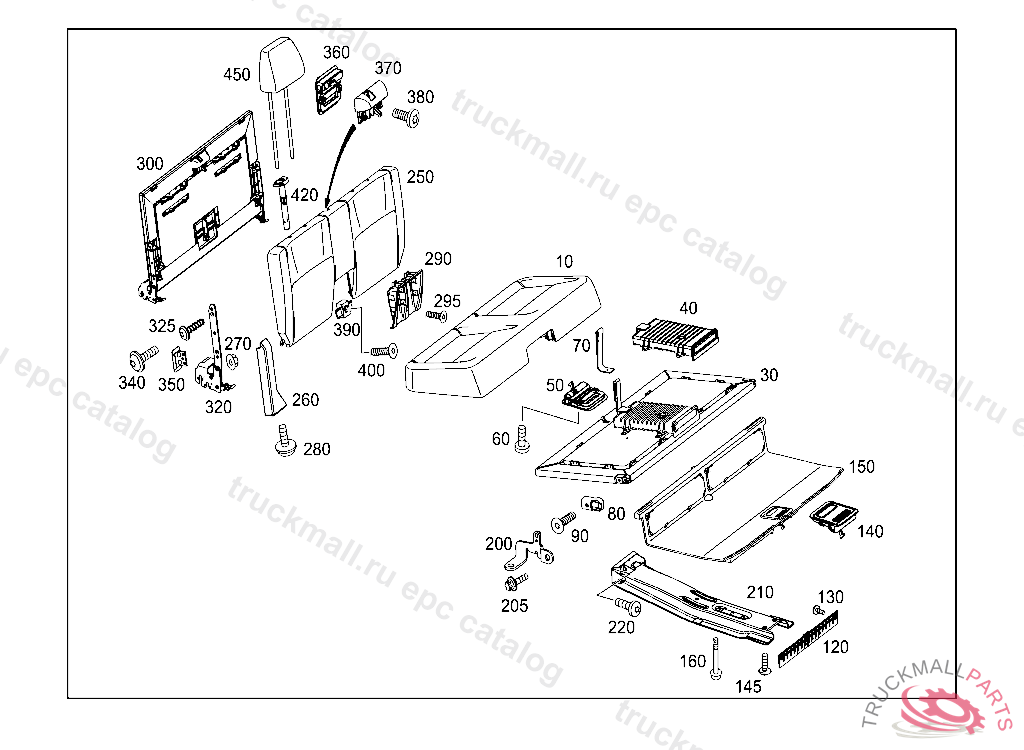

Поз.
Артикул
Описание
10
UPHOLSTERY PANEL
10
UPHOLSTERY PANEL
30
BOTTOM
40
BRACKET CUP HOLDER
50
CATCH BACKREST
60
SCREW BRACKET TO COVERING
70
LOOP PIN
80
COVER RIGHT HINGE
80
COVER HINGE,LEFT
90
SCREW PLATE AT HANDLE, J 47509420000815
120
REINFORCEMENT TO REAR END CENTER ASSEMBLY
130
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
140
CATCH FOOTREST
145
SCREW BRACKET TO COVERING
150
STANCHION FOOTREST
160
SCREW W COLLAR A DRIVEM5X35
200
BEARING PLATE LEFT
200
BEARING PLATE RIGHT
205
SCREW BRACKET TO SIDE MEMBER M8X20
210
REINFORCEMENT THIRD ROW OF SEATS
220
HEXALOBULAR BOLTM8X16
250
UPHOLSTERY PANEL BACKREST
250
UPHOLSTERY PANEL BACKREST
260
STAY LEFT BACKREST
260
STAY RIGHT BACKREST
270
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
280
BOLT. SCREW
290
TAKE-UP DEVICE SEAT BELT BUCKLE
295
SCREW PLATE AT HANDLE, J 47509420000815
300
CARGO FLOOR AT BACKREST
320
BACKREST ADJUSTMENT BACKREST ADJUSTER LEFT
320
BACKREST ADJUSTMENT BACKREST ADJUSTER RIGHT
325
BOLT BACKREST ADJUSTER
340
SCREW W COLLAR A DRIVEM5X35
350
PANELING BACKREST ADJUSTER
360
CATCH BACKREST
370
COVER ON FLOOR
380
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
390
BRACKET SEAT BELT BUCKLE, DISCONTINUED, PART NO LONGER REQUIRED
400
SCREW PLATE AT HANDLE, J 47509420000815
420
GUIDE HEAD RESTRAINT, RIGHT
420
GUIDE LEFT HEAD RESTRAINT
450
HEAD RESTRAINT
450
HEAD RESTRAINT
