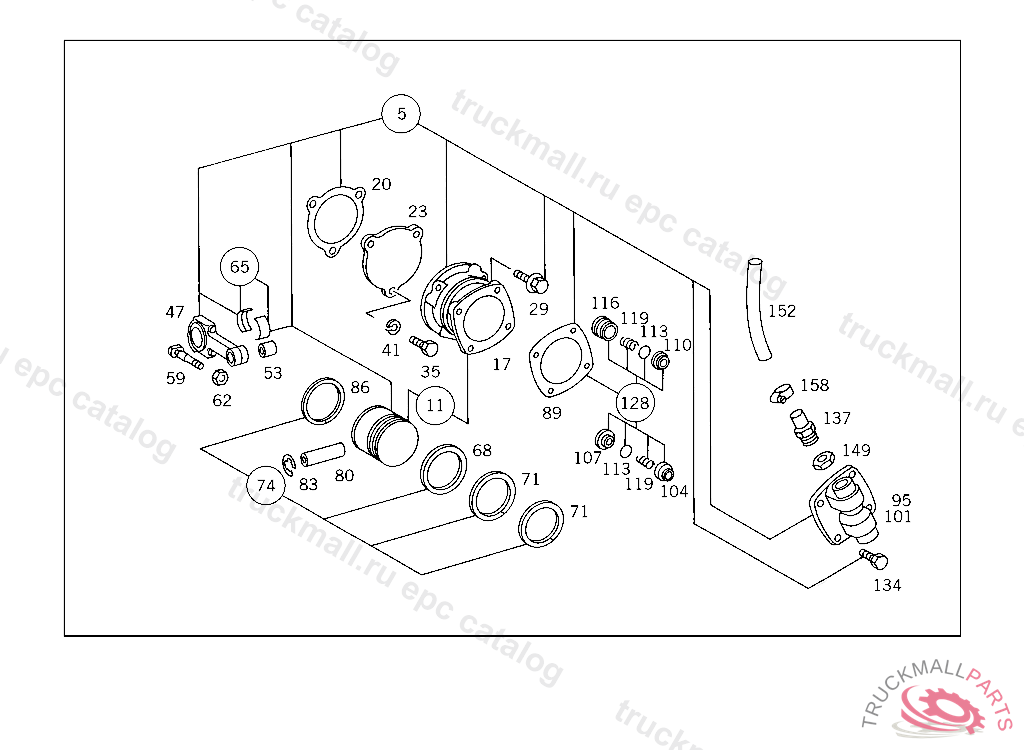

Поз.
Артикул
Описание
5
COMPRESSOR ASSEMBLY KIT
11
CYLINDER LINER WITH PISTON
17
CYLINDER LINER , Replaced By: A3401300008
20
GASKET AS REQUIRED 0.50 MM,085523
20
GASKET AS REQUIRED 0.30 MM,085523
29
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
29
SCREW , Replaced By: N910105008005
47
CONNECTING ROD
53
BUSHING ,082678
59
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
62
NUT
65
BEARING SHELL CONNECTING ROD BEARING SHELLS,31.90 MM STANDARD SIZE I,082679
65
BEARING SHELL STANDARD,082678
65
BEARING SHELL PARTS KIT,REPAIR SIZE I 31.75 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
65
BEARING SHELL CONNECTING ROD BEARING SHELLS,32.00 MM STANDARD SIZE,082679
65
BEARING SHELL REPAIR SIZE III 31.25 MM
65
BEARING SHELL REPAIR SIZE I 31.75 MM
65
BEARING SHELL PARTS KIT,REPAIR SIZE II 31.50 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
65
BEARING SHELL STANDARD SIZE I 31.90 MM
65
BEARING SHELL PARTS KIT,REPAIR SIZE III 31.25 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
65
REPAIR KIT , Replaced By: A3525860213
65
REPAIR KIT , Replaced By: A3525860313
65
REPAIR KIT , Replaced By: A3525860413
65
REPAIR KIT , Replaced By: A3525860513
65
REPAIR KIT , Replaced By: A3525860613
65
REPAIR KIT , Replaced By: A3521312033
65
REPAIR KIT , Replaced By: A3521312133
65
REPAIR KIT , Replaced By: A3521312233
65
REPAIR KIT , Replaced By: A3521312333
65
REPAIR KIT , Replaced By: A3521312433
65
BEARING SHELL REPAIR SIZE II 31.50 MM
68
PISTON RING , Replaced By: A3521310114
68
PISTON RING , Replaced By: A0001317711
71
PISTON RING , Replaced By: A0001317711
71
PISTON RING , Replaced By: A3521311111
71
PISTON RING , Replaced By: A3521310411
74
REPAIR KIT , Replaced By: A0001317711
74
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
80
PISTON PIN
83
LOCK RING
86
PISTON RING STANDARD 77.000 MM, TO 344 130 14 17
89
GASKET
89
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
89
GASKET
95
CYLINDER HEAD
101
CYLINDER HEAD
104
SPRING CASE
104
SPRING CASE
107
VALVE DISC
110
VALVE DISC
113
WASHER
116
VALVE DISC
116
VALVE DISC
119
SPRING
128
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD
128
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521300020
134
SCREW BRACKET TO CONSOLE M 8X25
137
INTAKE PIPE FROM AIR COMPRESSOR TO CYLINDER HEAD COVER
149
NUT INTERMEDIATE SPEED STOP
149
NUT , Replaced By: N080705022002
152
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
158
CLAMP BREATHER LINE, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
999
VALVE CYLINDER HEAD
999
CYLINDER LINER STANDARD SIZE I 77.075 MM
999
CYLINDER LINER STANDARD SIZE II 71.125 MM
999
CYLINDER LINER REPAIR SIZE I 77.25 MM
999
CYLINDER LINER REPAIR SIZE II 77.50 MM
999
CYLINDER LINER REPAIR SIZE III 77.75 MM
999
CYLINDER LINER REPAIR SIZE IV 78.00 MM, NO LONGER AVAILABLE
999
PISTON , Replaced By: A3441301417
999
PISTON
999
REPAIR KIT
999
PISTON77,00 MM
999
BEARING SHELL
999
VALVE (PRESSURE VALVE)
999
PISTON RING , Replaced By: A0001317711
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
BEARING SHELL
999
PISTON RING , Replaced By: A3521310111
