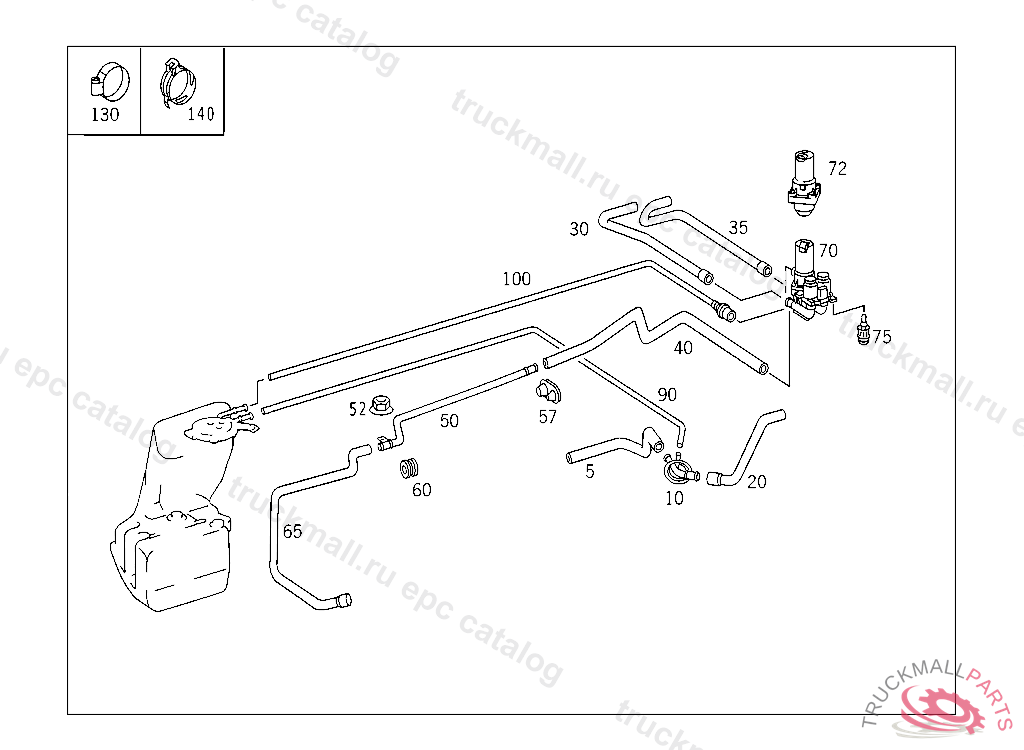

Поз.
Артикул
Описание
5
HOSE FROM ENGINE TO CONNECTING TUBE
10
PIPELINE FEED THRU PARTITION PANEL
10
PIPELINE FEED THRU PARTITION PANEL
20
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
20
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
30
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
35
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
35
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
40
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
40
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
50
PIPELINE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
52
NUT COVERING TO CAB FIRE WALL
57
GROMMET TO SPRING TOWER FOR RETURN LINE
60
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
65
HOSE RETURN LINE TO ENGINE
70
VALVE (ELECTRO-MAGNETIC WITH CIRCULATION PUM
72
CIRCULATION PUMP
75
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
90
HOSE FLOW PIPE, WINDOW WASHER HEATING
100
HOSE RECIRCULATION, WINDOW WASHER HEATING
100
HOSE RECIRCULATION, WINDOW WASHER HEATING
130
HOSE CLAMP LINE MOUNTING
130
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
140
CLAMP HOSE TO HEAT EXCHANGER 23-26 MM
140
CLAMP. LOOM TIE
