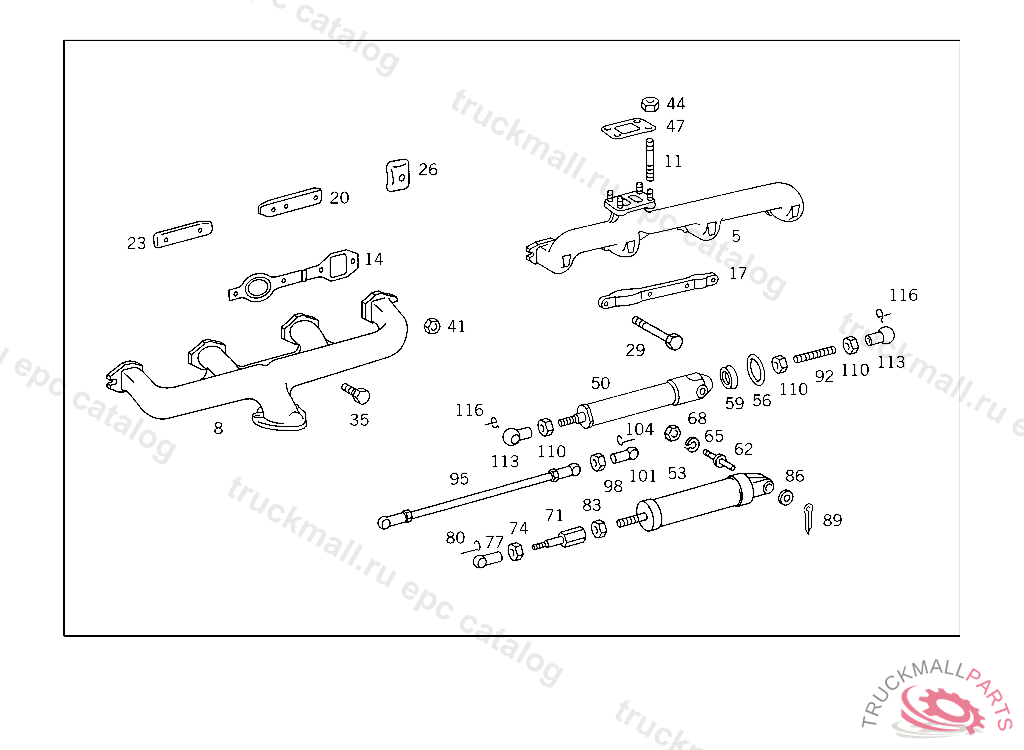

Поз.
Артикул
Описание
5
EXHAUST MANIFOLD
5
EXHAUST MANIFOLD , Replaced By: A3521402709
11
STUD , Replaced By: A0009906005
14
GASKET , Replaced By: A3521420280
14
GASKET , Replaced By: A3521420480
14
GASKET EXHAUST MANIFOLD
17
CLAMPING PIECE , Replaced By: A3521420912
17
CLAMPING PIECE
29
SCREW
29
SCREW PRESSURE LIMIT VALVE TO BRACKET M 10X115
44
NUT , Replaced By: N910113010000
44
NUT
47
GASKET TURBOCHARGER TO EXHAUST MANIFOLD
50
CYLINDER
50
CYLINDER LOCKING MECHANISM
53
CYLINDER
56
WASHER
59
SEAL RING
62
PIN COMPRESSED AIR CYLINDER
65
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
68
NUT SHUT-OFF CYLINDER
71
INTERMEDIATE PIECE. ROD
74
NUT SHUT-OFF CYLINDER
77
BALL SOCKET ROD TO BALL PIVOT
80
CIRCLIP ,B 884219
83
NUT CLAMPING BOLT TO ALTERNATOR TO 352 155 01 72
86
WASHER , Replaced By: N000125008443
89
COTTER PIN ROD TO BRAKE PEDAL
92
PULL ROD BRACKET TO FRAME
95
ROD FROM THROTTLE VALVE LEVER TO CONTROL SHAFT LEVER,113869
95
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
110
NUT , Replaced By: N304032008006
113
BALL SOCKET ROD TO BALL PIVOT
116
CIRCLIP ,B 884219
