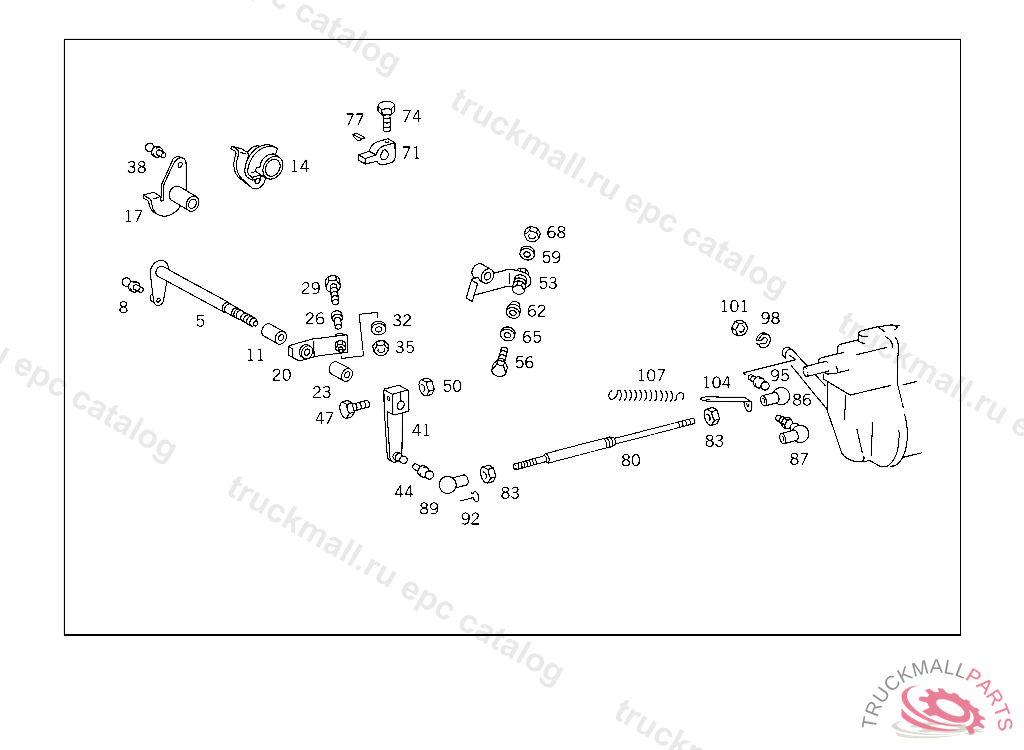

Поз.
Артикул
Описание
5
SHAFT CONTROL
8
BALL PIVOT , Replaced By: A3129910120
11
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
41
LEVER CONTROL
41
LEVER ACCELERATOR CONTROL
41
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 852794, Replaced By: A3760700421
44
BALL PIVOT , Replaced By: A3129910120
47
SCREW
50
NUT BALL PIVOT TO LEVER
53
LEVER , Replaced By: A3740708221
53
LEVER IDLING CONTROL
56
SCREW WIRE CABLE TO LEVER
56
SCREW , USED WITH AIR BRAKE
59
WASHER WIRE CABLE TO LEVER
62
BUSHING WIRE CABLE TO LEVER
62
BUSHING , USED WITH AIR BRAKE
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
NUT BALL PIVOT TO LEVER
86
BALL SOCKET CONTROL
95
BALL PIVOT ACCELERATOR PEDAL,4 859026
98
LOCK WASHER CLAMP TO BRACKET
101
NUT POWER CYLINDER
104
BRACKET
107
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
