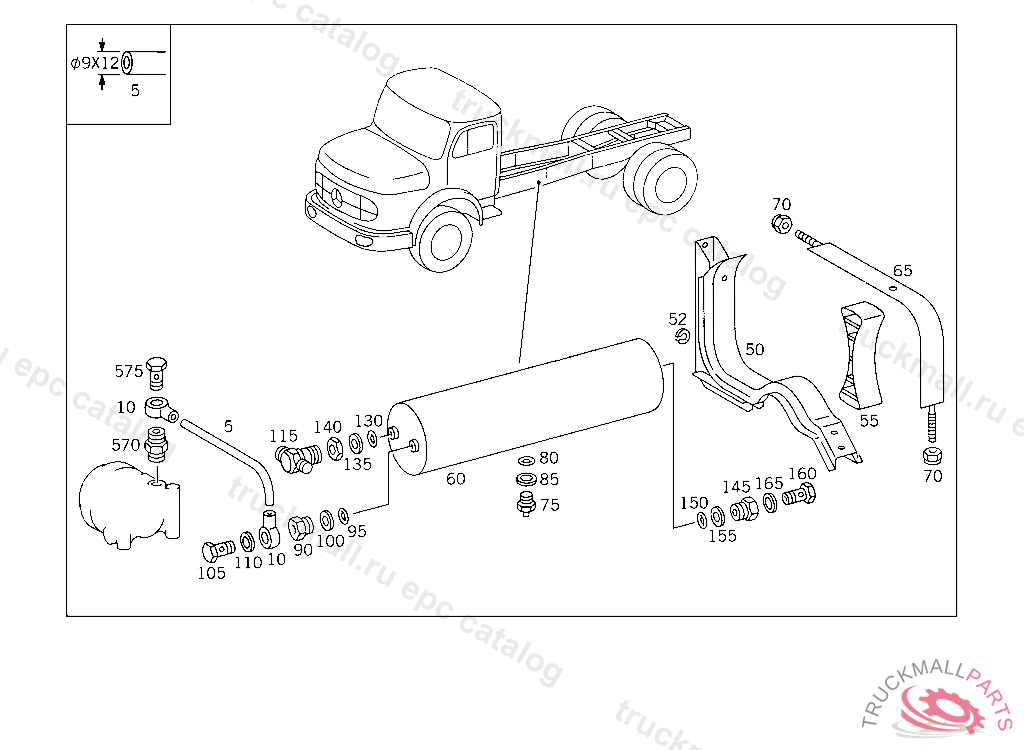

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
10
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
50
SUPPORT AIR RESERVOIR TO SUBSTRUCTURE,4 781093
50
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3464300839
52
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
55
BASE AIR RESERVOIR,4 484802
60
COMPRESSED AIR RESERVOIR COMPRESSED AIR 20 L.
60
RESERVOIR COMPRESSED AIR 20 L., Replaced By: A0064329801
60
RESERVOIR , Replaced By: A0034321101
65
STRAP RESERVOIR TO SUPPORT,4 7810944 872664
65
STRAP RESERVOIR TO SUPPORT,4 781093
70
NUT STRAP TO BRACKET
70
NUT , Replaced By: N910113010000
75
VALVE DRAIN, Replaced By: A0004322107
75
VALVE. DRAIN VALVE DRAIN
75
VALVE. DRAIN VALVE DRAIN
75
VALVE DRAIN, Replaced By: A0004322107
75
VALVE DRAIN, Replaced By: A0004322407
80
O-RING CHECK VALVE TO AIR RESERVOIR
85
THRUST RING CHECK VALVE TO AIR RESERVOIR
85
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
90
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
95
O-RING CHECK VALVE TO AIR RESERVOIR
100
THRUST RING CHECK VALVE TO AIR RESERVOIR
100
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
105
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
115
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
115
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
115
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
130
O-RING CHECK VALVE TO AIR RESERVOIR
135
THRUST RING CHECK VALVE TO AIR RESERVOIR
135
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
140
NUT CHECK VALVE TO AIR RESERVOIR
145
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
150
O-RING CHECK VALVE TO AIR RESERVOIR
155
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
160
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
165
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
570
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
575
HOLLOW SCREW LINE TO OIL RADIATOR
999
SEAL RING"GRAU"
999
REPAIR KIT , Replaced By: A0034303281
999
BALLTO 003 429 22 44
999
REPAIR KITWABCO
999
PROTECTIVE CAPKNORR
999
SPRINGTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
NUTTO 000 429 16 30
999
SPRING CAPSULETO 000 429 16 30
999
COVERTO 000 429 16 30,BOSCH
999
PISTONVOSS
999
LEVER TOOTHED
999
REPAIR KIT PARKING BRAKE TO 001 430 16 81
999
HANDLETO 001 430 17 81,KNORR
999
COVERWABCO
999
VALVE BODYTO 002 429 95 44
999
COVERTO 000 429 48 30
999
VALVE CONEBOSCH
999
SEAL RINGTO 000 429 75 30
999
GASKETTO 003 429 22 44
