Поз.
Артикул
Описание

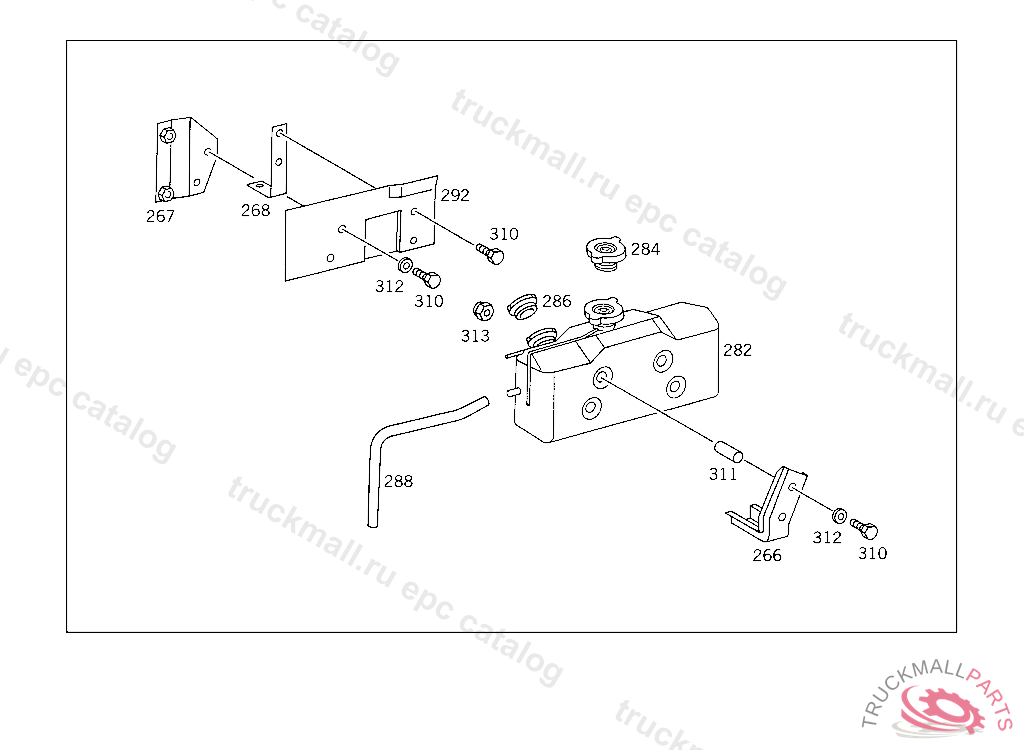

266
CONSOLE REAR TANK,5 308045
266
CONSOLE FRONT TANK,5 308045
267
BRACKET EXPANSION TANK TO CONSOLE,5 308045
268
BRACKET EXPANSION TANK TO CONSOLE,5 308045
282
TANK EXPANSION TANK
284
RADIATOR CAP FILLER NECK
286
RADIATOR CAP
288
HOSE
288
HOSE , Replaced By: A0219977682
292
COVER PLATE EXPANSION TANK,5 308045
310
SCREW CLAMP TO BRACKET AND TO PIPE
310
SCREW EXPANSION TANK TO CONSOLE M 8X190,5 308045
310
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
310
SCREW , Replaced By: N304017008067
311
SPACER TUBE EXPANSION TANK TO CONSOLE,5 308045 TO BE ADAPTED DURING ASSEMBLY
312
WASHER BRACKET TO CAB REAR PANEL
312
WASHER BRACKET TO LEFT SIDE MEMBER
312
WASHER , Replaced By: N009021008213
313
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
313
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
313
NUT , Replaced By: N913004008001
