Главная
Mercedes
CAR
CLS 63 AMG 4MATIC
218.392

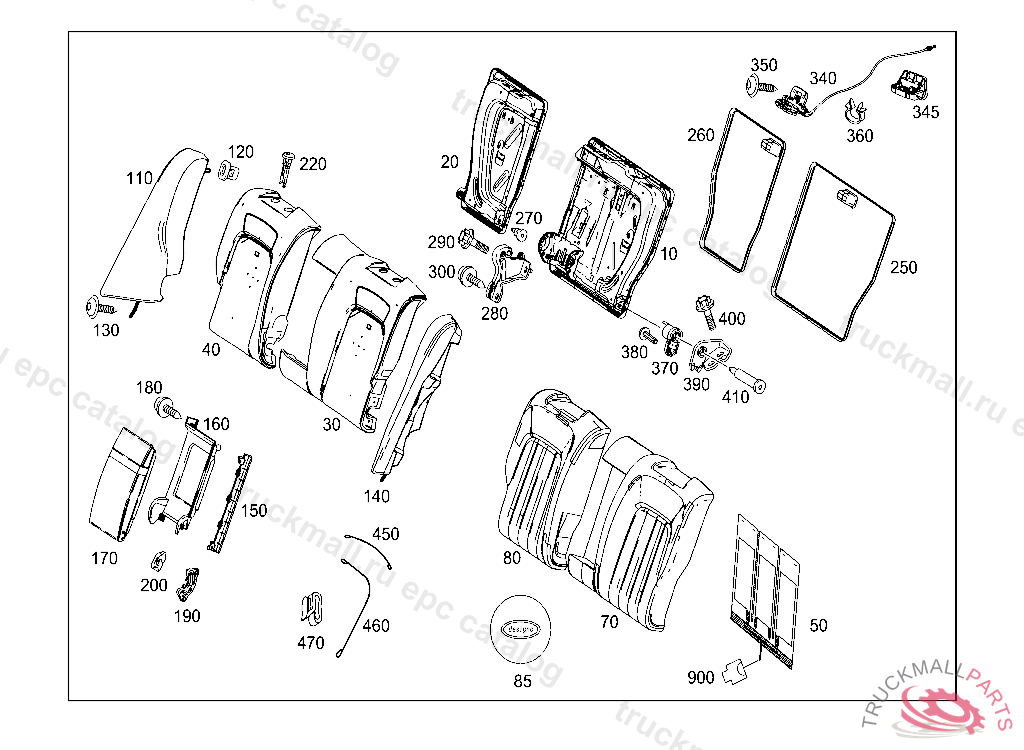

92 REAR SEAT BENCH
022 REAR FOLDING BACKREST

Mercedes A2189200132 - КАРКАС СПИНКИ СИДЕНЬЯ

CLS 63 AMG 4MATIC 218.392

92 REAR SEAT BENCH - 022 REAR FOLDING BACKREST

Поз.
Артикул
Описание
10
A2189200132
BACKREST FRAME LEFT REAR BACKREST
20
A2049200232
BACKREST FRAME RIGHT
30
A2189200116
PAD REAR SEAT BACKREST LEFT
40
A2189200216
PAD REAR SEAT BACKREST RIGHT
70
A2189200333
COVER REAR SEAT BACKREST LEFT, 9H04 701A QFT218A2000 BLACK
70
A2189200405
COVER REAR SEAT BACKREST LEFT, 9E43QFT218A2126 BLACK
70
A2189200205
COVER REAR SEAT BACKREST LEFT, 9E43QFT218A2126 BLACK
70
A2189200260
COVER REAR SEAT BACKREST LEFT
70
A2189204033
COVER REAR SEAT BACKREST LEFT
70
A2189200360
COVER REAR SEAT BACKREST LEFT
70
A2189200305
COVER REAR SEAT BACKREST LEFT, 9E38QFT218A2125 BLACK
70
A2189204301
COVER REAR SEAT BACKREST LEFT
70
A2189200533
COVER REAR SEAT BACKREST LEFT
70
A2189200505
COVER REAR SEAT BACKREST LEFT, 9E38QFT218A2125 BLACK
70
A2189201533
COVER REAR SEAT BACKREST LEFT
80
A2189200233
COVER REAR SEAT BACKREST RIGHT, 9H04 701A QFT218A2000 BLACK
80
A2189203833
COVER REAR SEAT BACKREST RIGHT
80
A2189200433
COVER REAR SEAT BACKREST RIGHT
80
A2189200760
COVER REAR SEAT BACKREST RIGHT
80
A2189203933
COVER REAR SEAT BACKREST RIGHT
80
A2189202105
COVER REAR SEAT BACKREST RIGHT, 9E38QFT218A2125 BLACK
80
A2189202005
COVER REAR SEAT BACKREST RIGHT, 9E43QFT218A2126 BLACK
80
A2189201805
COVER REAR SEAT BACKREST RIGHT, 9E43QFT218A2126 BLACK
80
A2189204201
COVER REAR SEAT BACKREST RIGHT
80
A2189201905
COVER REAR SEAT BACKREST RIGHT, 9E38QFT218A2125 BLACK
80
A2189200660
COVER REAR SEAT BACKREST RIGHT
85
A2218100269
PLATE DESIGNO, 7K71QFT204A2185 CHROME
110
A2189200230
REAR SEAT BACKREST OUTSIDE RIGHT, 9D88 701A QFT218A2001 BLACK
110
A2189204004
REAR SEAT BACKREST OUTSIDE RIGHT, 3E06 967A/977A/987A/997AQFT218A2119 CLASSIC RED
110
A2189201430
REAR SEAT BACKREST OUTSIDE RIGHT
110
A2189207700
REAR SEAT BACKREST OUTSIDE RIGHT
110
A2189201630
REAR SEAT BACKREST OUTSIDE RIGHT
120
A2049230214
BRACKET
130
N000000003251
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
140
A2189201530
REAR SEAT BACKREST OUTSIDE LEFT
140
A2189200130
REAR SEAT BACKREST OUTSIDE LEFT, 9D88 701A QFT218A2001 BLACK
140
A2189207600
REAR SEAT BACKREST OUTSIDE LEFT
140
A2189201104
REAR SEAT BACKREST OUTSIDE LEFT, 3E06 967A/977A/987A/997AQFT218A2119 CLASSIC RED
140
A2189201330
REAR SEAT BACKREST OUTSIDE LEFT
150
A2049230222
PANELING ARMREST SLOT
160
A2049230122
PANELING ARMREST SLOT
170
A2049700330
FOLDING ARMREST
170
A2129700230
FOLDING ARMREST
170
A2049700130
FOLDING ARMREST
170
A2189700030
FOLDING ARMREST
180
N000000003251
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
190
A2049730046
DETENT ARMREST
200
A2049730011
PLATE ARMREST RETAINER
220
A2049700341
GUIDE WITH UNLOCKING MECHANISM
220
A2049700041
GUIDE WITHOUT RELEASE, LEFT SEAT
250
A2049230162
LINING LEFT REAR BACKREST, 9F08QFT204A2500 SINGLE TONE BLACK
260
A2049230262
LINING RIGHT REAR BACKREST, 9F08QFT204A2500 SINGLE TONE BLACK
270
A2048900057
PIN TO BACKREST FRAME, LEFT
280
A2049200024
BEARING CENTRAL
290
N910143010011
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
300
N000000003251
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
340
A2129200172
LOCK FOR SEAT CUSHION LEFT REAR BACKREST
345
A2049200264
LEVER RELEASE HANDLE, RIGHT, 9051QFT204A2420 BLACK
345
A2049200164
LEVER LEFT RELEASE HANDLE, 9051QFT204A2420 BLACK
350
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
360
A0009956144
CLAMP
370
A2128700051
LIMIT SWITCH BACKREST LOCKING MECHANISM,RIGHT
380
A0009910033
RIVET SWITCH TO BEARING AT RIGHT
390
A2129200524
PIVOT BEARING OUTSIDE LEFT
390
A2129200624
PIVOT BEARING OUTSIDE RIGHT
400
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
410
A0009912216
BEARING BOLT LEFT OUTSIDE
470
A1409883778
CLIP
900
A0375451528
CONNECTOR HOUSING REAR LEFT DOOR SEPARATION POINT 2-PIN SLK2.8,X35/3
