Поз.
Артикул
Описание

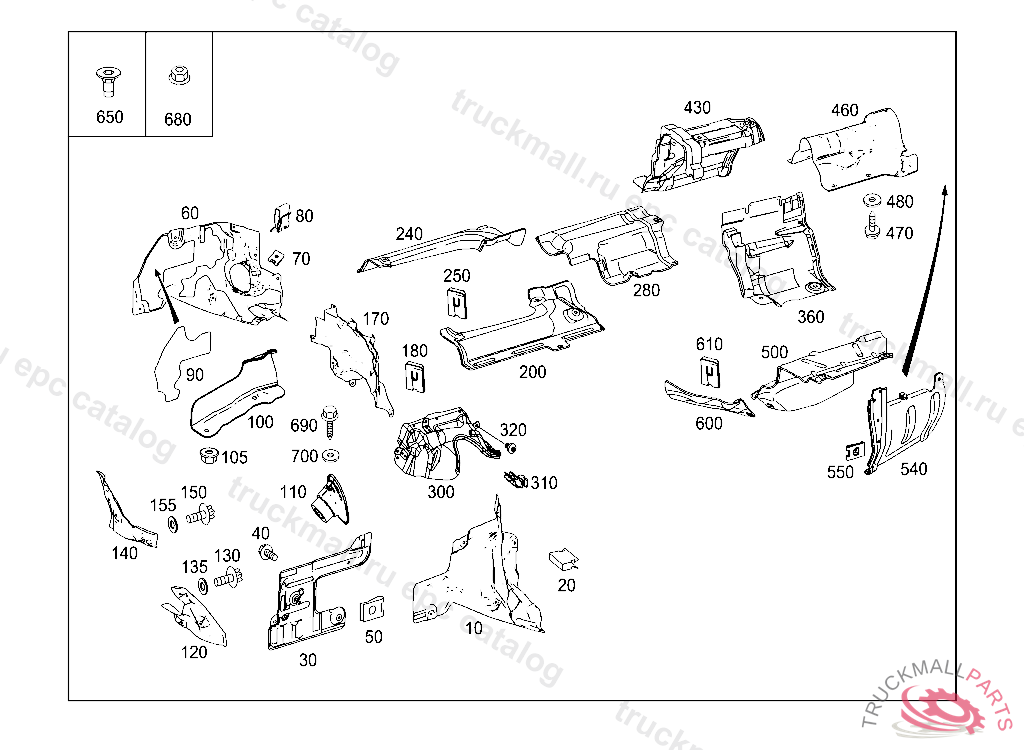

10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
20
CLIP , 023 045544 033 023449 123 031503 130 041295
30
SHIELDING ENGINE COMPARTMENT,LEFT
30
SHIELDING ENGINE COMPARTMENT,RIGHT
40
BOLT ABSORBER AT LONGITUDINAL MEMBER
50
CLIP
60
SCREENING TO FIRE WALL,RECHTS
110
SCREENING STEERING JOINT BOOT, A 03982220111219
120
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
130
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
135
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
140
SCREENING FRAME-TYPE INTEGRAL SUPPORT,RIGHT
150
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
155
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
200
SHIELDING TO MAIN FLOOR LEFT
240
SHIELDING FLOOR,RIGHT, A 07073320120911
250
CLIP
280
SHIELDING OVER CATALYST, A 07158420120918
360
SCREENING PLATE OVER LEFT CENTER MUFFLER
430
SCREENING PLATE OVER RIGHT CENTER MUFFLER
460
SCREENING PLATE BELOW FUEL TANK
460
SCREENING PLATE BELOW FUEL TANK
470
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
480
WASHER AIR VENT FASTENING
500
SHIELDING REAR MUFFLER RIGHT, INSIDE, A 20130930
500
SHIELDING REAR MUFFLER, LEFT, INSIDE
540
SCREENING PLATE REAR MUFFLER, RIGHT, OUTER
540
SCREENING PLATE REAR MUFFLER, LEFT, OUTER
550
LOCK RIGHT PANELLING TO SIDE MEMBER
600
SCREENING PLATE LEFT FRONT SPARE TIRE WELL
600
SHIELDING RIGHT FRONT SPARE TIRE WELL, A 20130930
610
CLIP
650
HEXAGON NUT W COLLAR BRACKET MOUNTING
680
NUT , Replaced By: N913023006001
999
ACCOUNTING NO. DELETION
