Mercedes A2188000118 - ДЕРЖАТЕЛЬ

CLS 63 AMG 4MATIC 218.392

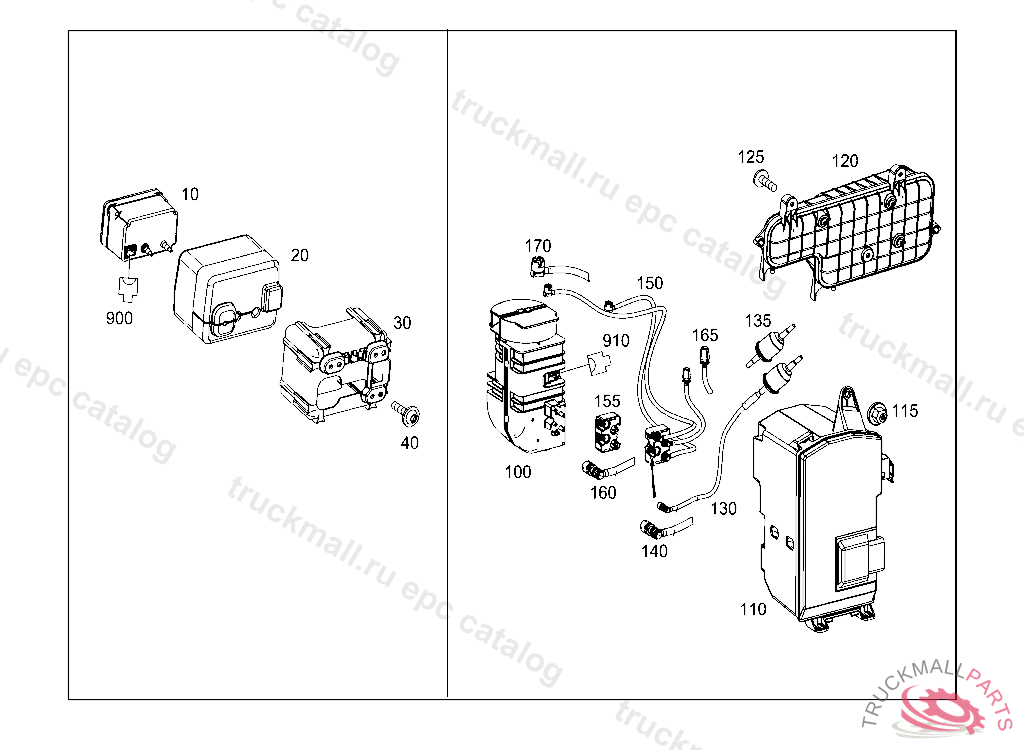

80 VACUUM SYSTEM / HYDRAULIC SYSTEM - 040 VACUUM PUMP AND CONNECTOR

Поз.
Артикул
Описание
10
A0008003348
PUMP
20
A2218000035
PROTECTIVE CAP
30
A0008000018
BRACKET
40
A0019847029
BOLT OIL LINE ATTACHMENT 7X16
100
A0008005648
PNEUMATIC PUMP IM LUGGAGE COMPARTMENT, A 02401720090630 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
110
A2188000118
BRACKET PUMP
115
A0009903662
NUT VALVE TO BRACKET
120
A0008003119
COMPRESSED AIR RESERVOIR
125
A0019847029
BOLT OIL LINE ATTACHMENT 7X16
130
A2128002815
HOSE ASSEMBLY PUMP SUCTION LINE
135
A0000780656
AIR FILTER. STRAINER THROTTLE
140
A0069974089
RS PLUG CONNECTIONB21
150
A2128000515
HOSE ASSEMBLY FROM PUMP TO PRIMER CAPSULE
155
A2218050114
BRACKET LINE
160
A0069974089
RS PLUG CONNECTIONB21
165
A0069973689
RS PLUG CONNECTION REPAIR SOLUTION TULIP SOCKET B15
170
A0069973889
RS PLUG CONNECTIONB20
900
A2205453928
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
910
A2205453928
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
