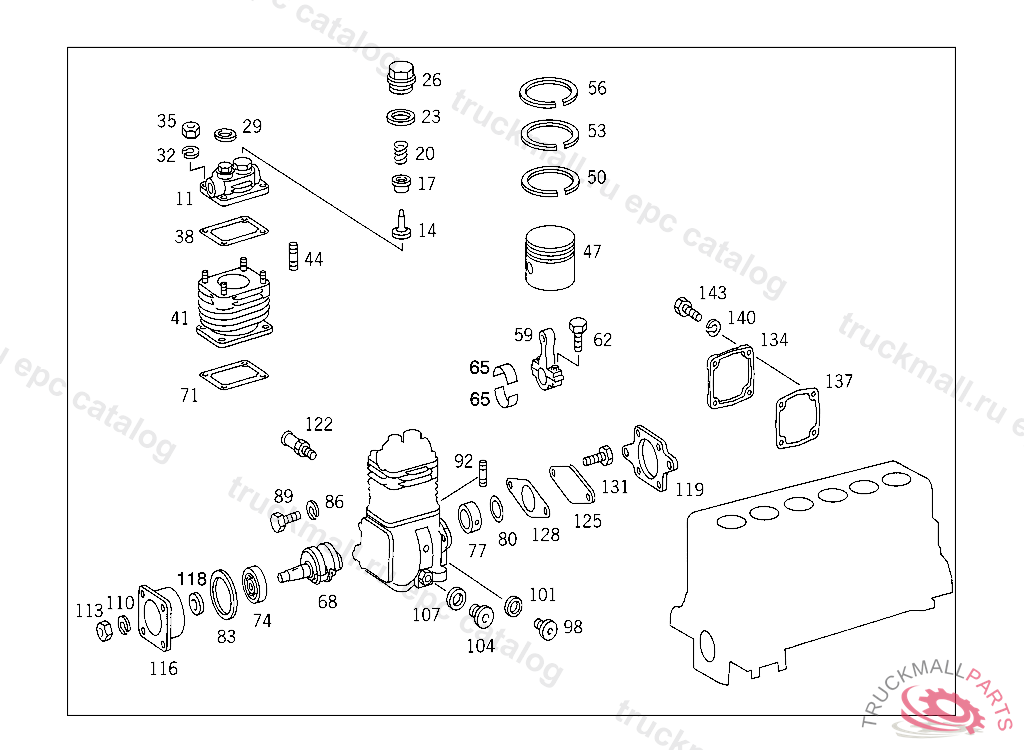

Поз.
Артикул
Описание
11
CYLINDER HEAD COMPLETE
14
VALVE CYLINDER HEAD
17
SPRING RETAINER
20
SPRING CYLINDER HEAD
23
SEAL RINGTO 002 430 41 01
26
CAP
29
SEAL RING LINE TO OIL PUMP
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
NUT
38
GASKET
38
GASKET , Replaced By: A0011316980
41
CYLINDER LINER
44
STUD BOLT BRACKET TO TRANSMISSION
47
PISTON
47
PISTON , Replaced By: A0001312207
50
PISTON RING
53
PISTON RING
56
PISTON RING , Replaced By: N024911075000
56
PISTON RING
59
CONNECTING ROD , Replaced By: A0001312117, +002A0001310733
59
CONNECTING ROD
62
SCREW SUPPORT TO FENDER
62
SCREW , Replaced By: N304017008018
65
BEARING SHELLTO 003 131 48 01,004 131 58 01
68
CRANKSHAFT
68
CRANKSHAFT , Replaced By: A0001315316
71
GASKET , Replaced By: A0011316880
71
GASKET AIR COMPRESSOR CYLINDER HEAD
74
GROOVED BALL BEARING BEARING BODY,6 900042
77
BUSHINGTO 001 131 52 01
80
SEAL RING CRANKSHAFT SEALING,REAR TO 003 131 31 01
83
SEAL RING CRANKSHAFT SEALING,FRONT
86
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
89
SCREW COVER PLATE TO BRACKET
89
SCREW LINE MOUNTING M 6X15
92
STUD BOLTTO 001 131 52 01
98
SCREW PLUG, FILLING HOUSING,BOTTOM
98
SCREW PLUG , Replaced By: N000000000648
101
SEAL RING BRAKE CYLINDER STROKE INDICATOR
101
SEAL RING LINE CONNECTION
104
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
104
SCREW PLUG , Replaced By: N000908022011
107
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
110
LOCK WASHER BELL HOUSING TO TRANSMISSION
113
NUT
116
BEARING CAP ,571207 352.900/000/019/400
118
SEAL RING
119
FLANGE ,571207 352.900/000/019/400
122
CONNECTOR
125
CAP TO PLUG AIR COMPRESSOR,REAR
128
FLANGE GASKET COVER TO TIMING CASE
128
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
128
GASKET , Replaced By: A3661310080
131
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
CYLINDER HEAD
999
PISTON
999
VALVE (PRESSURE VALVE)
