Поз.
Артикул
Описание

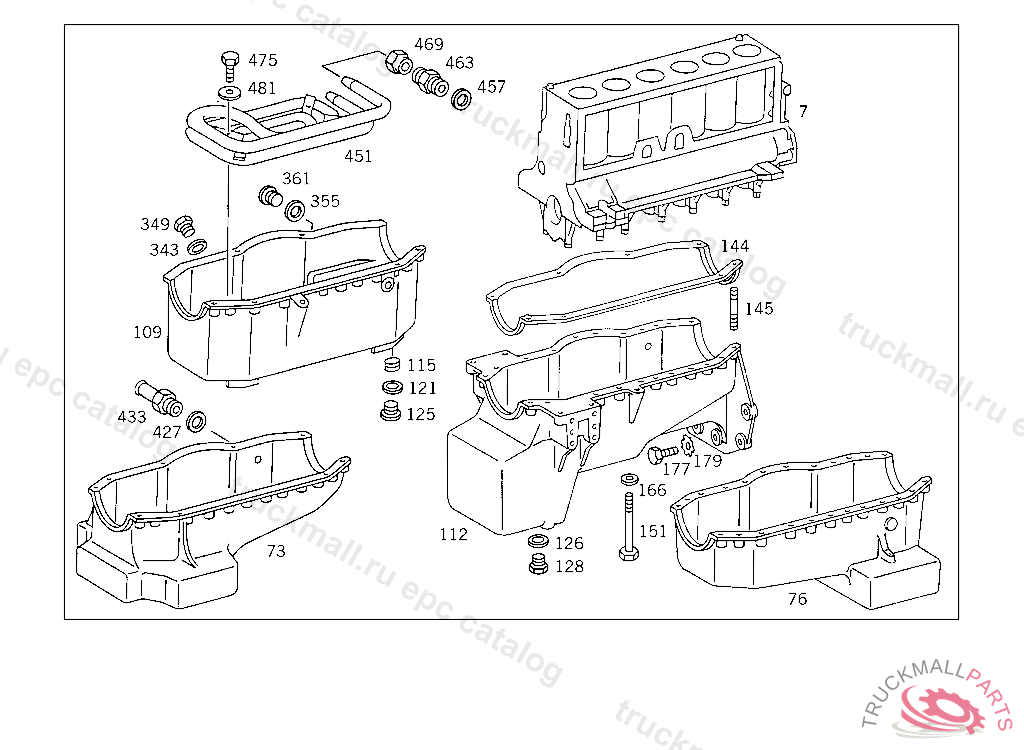

7
CRANKCASE
7
CRANKCASE
73
OIL PAN
76
OIL PAN
109
OIL PAN
109
OIL PAN ,315553/93
109
OIL PAN ,315552/93, Replaced By: A3660105013, +001A3660100780
112
OIL PAN
115
THREADED INSERT
115
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
121
SEAL RING
121
SEAL RING LINE CONNECTION
121
SEAL RING OIL DRAIN 26X34 MM
121
SEAL RING OIL DRAIN
121
SEAL RING VALVE TO VALVE,K 025179
125
SCREW PLUG
125
SCREW PLUG OIL DRAIN
125
SCREW PLUG , UP TO ENGINE 921 001982 927 000355 928 000589 929 000007
125
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
125
SCREW PLUG OIL DRAIN
125
SCREW PLUG , Replaced By: A4039970230
126
SEAL RING VALVE TO VALVE,K 025179
128
SCREW PLUG
144
GASKET KIT OIL PAN
144
GASKET KIT OIL PAN
144
GASKET KIT OIL PAN
144
GASKET KIT OIL PAN
144
GASKET OIL PAN
144
GASKET KIT , Replaced By: A3520105827
144
GASKET KIT , NOT USED, Replaced By: A3520102480
144
GASKET KIT , Replaced By: A3520100580
144
GASKET KIT , NOT USED, Replaced By: A3660100880
144
GASKET KIT , Replaced By: A3660100780
144
GASKET KIT. GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 996747YEAR OF MANUFACTURE 1990, Replaced By: A3660100680
144
GASKET KIT , Replaced By: A3520101980
144
PART NAME MISSING OIL PAN
144
GASKET KIT OIL PAN
144
GASKET KIT , Replaced By: A3520102280
144
GASKET KIT , NOT USED
145
STUD BOLT OIL PAN TO CYLINDER CRANKCASE M 8X50
145
STUD HEATING WATER CONNECTION TO CYLINDER HEAD
145
STUD BOLTM 8X45, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
145
STUD OIL PAN TO CYLINDER CRANKCASE
151
SCREW OIL PAN TO CYLINDER CRANKCASE
151
SCREW AIR COMPRESSOR LINE
151
SCREW
151
SCREWM 8X40
151
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
151
SCREW TRAILER CONTROL VALVE TO BRACKET,4 940459
151
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
151
SCREW , Replaced By: N304017006031
151
SCREW , Replaced By: N304017008030
166
CONICAL SPRING WASHER CHARGING AIR INTERCOOLER TO RADIATOR
177
SCREW SUPPORTING ARM TO FLYWHEEL HOUSING
179
TOOTHED WASHER OIL PAN TO FLYWHEEL HOUSING
343
SEAL RING FUEL LINE TO FEED PUMP
343
SEAL RING INJECTION PUMP
343
SEAL RING
349
SCREW PLUG
349
SCREW PLUG FUEL TANK
349
SCREW PLUG , Replaced By: N007604014110
355
SEAL RINGTO 000 553 23 01,000 553 37 01,
355
SEAL RING LINE CONNECTION
361
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
361
SCREW PLUG , Replaced By: N000908012009
427
SEAL RING DELIVERY LINE
433
CONNECTOR AT ENGINE,591819
451
HEATING COIL OIL PAN
451
HEATING COIL OIL PAN
451
HEATING COIL , Replaced By: A3521880096
457
SEAL RING SPEEDOMETER DRIVE
463
BULKHEAD FITTING
469
LOCK NUT HEATING COIL CONNECTION
475
SCREW STOP TO BATTERY CASE
475
SCREW 4/2-WAY VALVE TO BRACKET
481
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
OIL FILLER NECK , Replaced By: A3520109764
999
OIL PAN , Replaced By: A3520109513
999
OIL PAN , Replaced By: A3520104827, +001A1210140457
999
OIL PAN , Replaced By: A3520109113, +001A3520180244, +001A3520181744, +002A3660180380, +001A3529970472, +002N000912006004, +003N000912008012, +001N007603014400, +002N007980006003, +006N007980008003
999
OIL PAN
999
OIL PAN , Replaced By: A3520104013
999
OIL PAN , Replaced By: A3520104013
999
OIL PAN , Replaced By: A3520102127
999
OIL PAN , Replaced By: A3520107813
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 745402, Replaced By: A3520104727, +001A3521802451
999
OIL PAN , Replaced By: A3520106613, +001A3520181044, +001A3520181744, +002A3660180380, +001A3529970472, +001N000912006004, +003N000931008246, +001N007603014400
999
CRANKCASE , Replaced By: A3520106908
999
OIL PAN , Replaced By: A3520106813
999
OIL PAN , Replaced By: A3520141502
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 021505, Replaced By: A3960100913
999
OIL PAN ,352.900-000-000689
999
OIL PAN ,310563, Replaced By: A3520104013
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 688024, Replaced By: A3520104127
999
CRANKCASE , Replaced By: A3520104408, +001N000433013002
999
OIL PAN , Replaced By: A3520108913
999
GASKET KIT , NOT USED, Replaced By: A3520102480
999
GUIDE TUBE , Replaced By: A3520184216
999
FLANGE , Replaced By: A3520100976, +001N007603014102, +001N007604014400
999
FLANGE , Replaced By: A3520102576
999
OIL DIPSTICK , Replaced By: A3520100074
999
OIL PAN ,352.900-000-000688, Replaced By: A3520104813, +001A3641800101
999
OIL DIPSTICK ,040790, Replaced By: A3520102872
999
OIL DIPSTICK
999
GUIDE TUBE OIL DIPSTICK
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 692088, Replaced By: A3960100513
999
COVER LATERAL
999
OIL DIPSTICK , Replaced By: A3440107172
999
GASKET KIT , Replaced By: A3520101980
999
FLANGE
999
GUIDE TUBE
999
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 036669, Replaced By: A3520102566
999
OIL PAN , Replaced By: A3520109213
999
GASKET KIT OIL PAN
999
OIL DIPSTICK , Replaced By: A3520102072
999
GASKET KIT , Replaced By: A3520100880
999
OIL PAN
999
FLANGE ,310563, Replaced By: A3520100176
999
CAP , Replaced By: A0000180702
999
GASKET KIT , Replaced By: A3520100880
999
EXPANSION PLUG , Replaced By: A3660100019
999
SCREW PLUG , Replaced By: A4039970230
999
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
HOUSING ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
GUIDE TUBE OIL DIPSTICK
999
OIL PAN , Replaced By: A3520109313
999
OIL PAN , Replaced By: A3520100313
999
OIL DIPSTICK
999
OIL PUMP , Replaced By: A3141804601
999
OIL PUMP , Replaced By: A3521805901
999
OIL PUMP , Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
SUCTION PIPE , Replaced By: A3521801251
999
OIL PUMP , Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
SUCTION BASKET
999
SCREW PLUG , Replaced By: N000908016000
999
HOUSING , Replaced By: A3521810201, +001A3521810106, +001A3521810206
999
SUCTION PIPE , Replaced By: A3141801551
999
PIPE OIL DIPSTICK
999
OIL PAN , Replaced By: A3520105813
999
OIL PUMP , Replaced By: A3521804501
999
SCREW PLUG OIL DRAIN
999
CLAMP , Replaced By: N916016020204
999
COVER , Replaced By: A3521810620
999
GEAR DRIVEN,STAGE II,009993
999
GEAR DRIVING,STAGE II
999
SUCTION PIPE FROM SUCTION BASKET TO OIL PUMP, STAGE II,009993
999
COVER , Replaced By: A3520102535
999
OIL FILLER NECK , Replaced By: A3520107164
999
OIL PAN , Replaced By: A3520103213
999
OIL FILLER NECK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0220100764
999
LOOM TIE , Replaced By: N916017025000
999
LOOM TIE , Replaced By: N916017020000
999
LOOM TIE
999
GASKET , Replaced By: A1020180080
999
EXPANSION PLUG , Replaced By: A3520100019
999
NUT POWER CYLINDER
999
SCREW FITTING , Replaced By: A4039971172
999
SCREW BEARING COVER TO TRANSMISSION CASE M 8X65
999
COMBINATION BOLT , Replaced By: A0049901601
999
GASKET SUCTION BASKET TO OIL PUMP COVER, 343.919-016 UP TO ENGINE 122779 343.919-016 FROM ENGINE 104828
999
SCREW PLUG , Replaced By: A3219970630
999
STUD OIL FILLER NECK TO OIL PAN
999
EXPANSION PLUG P.T.O.
999
WASHER SHIFTING CYLINDER TO CASE
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
GUIDE TUBE OIL DIPSTICK
999
SCREW PLUG
999
SUCTION PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 931773/89, Replaced By: A3961800551
999
SUCTION BASKET SUCTION PIPE,OIL PUMP
999
SUCTION BASKET ,057309, Replaced By: A3661860101, +001A3641810020
999
SUCTION PIPE
999
SUCTION PIPE ,057309, Replaced By: A3661800251, +001A3641810020
999
OIL PAN
999
OIL PAN
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 032598, Replaced By: A3660102613
999
OIL PAN , Replaced By: A3520104127, +001A3520100680, +001N007603014104, +001N007604014106
999
OIL PUMP
999
HOSE
999
HOSE , Replaced By: A3529972482, +002A0009961501, +002N000934010014
999
FITTING , Replaced By: N915013008002
999
SCREW PLUG , Replaced By: A3469970030
999
WASHER
999
REPAIR KIT , Replaced By: A3520100880
999
REPAIR KIT , Replaced By: A3520100680
999
REPAIR KIT , Replaced By: A3520100580
999
REPAIR KIT , Replaced By: A3520100480
999
REPAIR KIT , Replaced By: A3520100380
999
SUCTION BASKET OIL PUMP
999
SUCTION BASKET ,000141844205, Replaced By: A3521861901, +001A3641810020
999
SUCTION BASKET ,931773, Replaced By: A3521861801, +001A3641810020
999
SUCTION BASKET
999
HOUSING
999
DRIVE SHAFT
999
DRIVE SHAFT
999
COVER
999
HELICAL GEAR , Replaced By: A3661810108
999
COVER , Replaced By: A3521811220
999
HELICAL GEAR , Replaced By: A3521811108
999
DRIVE SHAFT , 03081673.5 KW (100 PS) 02551080.9 KW (110 PS) 06737492.6 KW (126 PS) 003613 110.3 KW (150 PS)
