Mercedes A2128303296 - Шланг

CLS 63 AMG S-MODELL 4MATIC 218.976

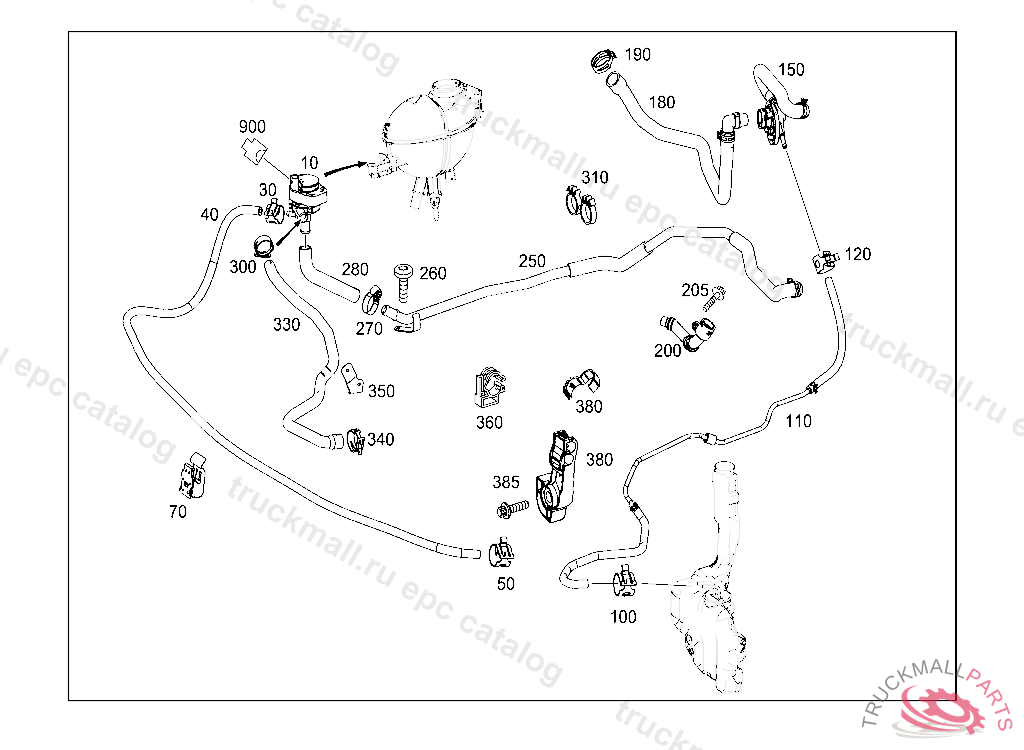

83 HEATING AND VENTILATION - 181 HOT WATER LINES

Поз.
Артикул
Описание
10
A2048350364
CIRCULATION PUMP
150
A2128300396
HOSE FEED TO HEAT EXCHANGER
150
A2128300496
HOSE FEED TO HEAT EXCHANGER
180
A2128302300
HOSE ASSEMBLY FROM ENGINE TO FEED LINE, A 08330620130117
250
A2128305996
HOSE ASSEMBLY RETURN, A 03387320111031802
260
A0009841729
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
270
A2309950105
CLAMP25 MM
280
A2128302900
HOSE ASSEMBLY FROM RETURN LINE TO RECIRCULATING PUMP
300
A2309950105
CLAMP25 MM
310
A0089972490
CLAMP FASTENING COOLANT HOSE
330
A2128304196
HOSE ASSEMBLY BETWEEN RECIRCULATING PUMP AND ENGINE
330
A2128303296
HOSE ASSEMBLY BETWEEN RECIRCULATING PUMP AND ENGINE, A 06254620120629
340
N000000000668
CLAMP25-40X13 MM
900
A1685452928
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
