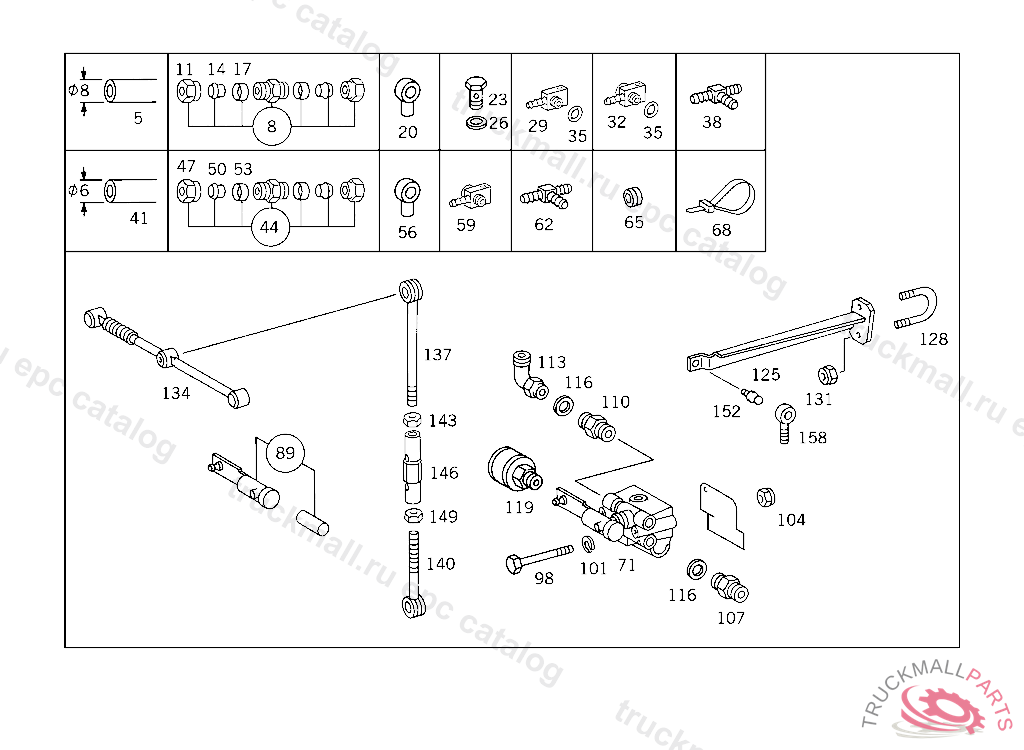

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HEATING CONNECTION,K 169122
23
HOLLOW SCREW FUEL LINE TO FEED PUMP
23
HOLLOW SCREW , Replaced By: N915036010108
26
SEAL RINGTO 000 553 03 05,000 553 18 05,
29
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
32
CONNECTOR DISTRIBUTOR TO FRAME
35
SEAL RING CONNECTOR 11.8X2 MM
35
SEAL RING , Replaced By: A0229973948
38
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
41
PLASTIC PIPE RISING PIPE 4X6 MM
41
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
47
UNION NUT
50
GLAND , Replaced By: A0019901667
53
SLEEVE LEAK LINE
56
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
59
CONNECTOR DISTRIBUTOR TO FRAME
62
DISTRIBUTOR HOSE WIDTH, 6 MM
65
GROMMET CABLE THROUGH ELECTRICAL COMPARTMENT,002062 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO IDENT NO. 017956 EXCEPT FOR 017867,017919
68
LOOM TIE LINE MOUNTING
71
VALVE FRONT AXLE LEVEL ADJUSTMENT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
89
LEVER (PARTS KIT)
98
SCREW VALVE TO BRACKET
98
SCREW VALVE TO BRACKET, Replaced By: N304014008002
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
110
FITTING LINE CONNECTION, Replaced By: N000000006446
113
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
116
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
116
SEAL RING LINE CONNECTION
119
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
125
LEVER FRONT AXLE LEVEL ADJUSTMENT
128
CLAMP LEVER TO TORSION BAR
131
NUT PUMP TO BRACKET
131
NUT , Replaced By: N913004006001
137
BALL SOCKET R.H. THREAD 175 MM,SA 22 400
140
BALL SOCKET POWER CYLINDER TO LEVER
143
NUT
143
NUT FRONT AXLE LEVEL ADJUSTMENT
143
NUT , Replaced By: N304035008001
149
NUT , Replaced By: N304035008002
149
NUT L.H. THREAD
152
BALL PIVOT ACCELERATOR PEDAL,4 859026
152
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
999
LEVER (PARTS KIT)
999
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
T-FITTING
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
999
FITTING LEVEL ADJUSTMENT VALVE BREATHING
999
FITTING AT BRACKET
999
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
999
999
GROMMET FOR PASSAGE OF LINE
999
DISTRIBUTOR 3/2-WAY VALVE
999
BRACKET 3/2-WAY VALVE
999
SPACER TUBE POWER CYLINDER TO LEVER
999
SCREWM 8X40
999
NUT BALL PIVOT TO LEVER
999
WASHER BRACKET TO FENDER BRACKET
999
SEAL RING LINE CONNECTION
999
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
999
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
