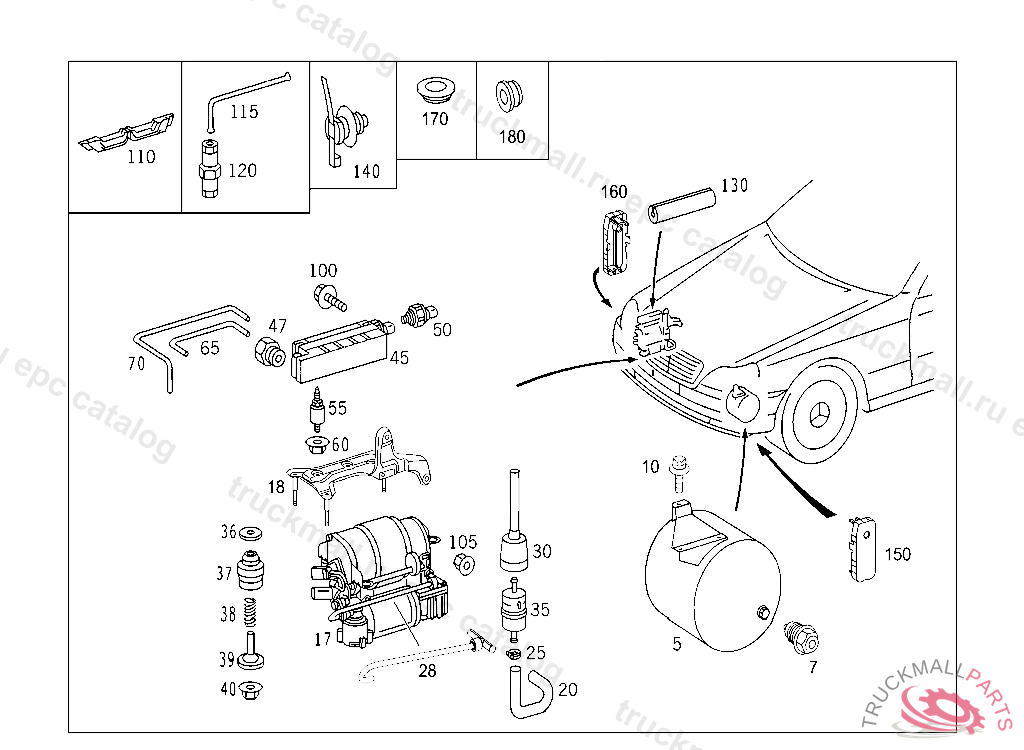

Поз.
Артикул
Описание
5
AIR CELL RIGHT PRESSURE RESERVOIR
7
CONNECTOR PRESSURE LINE TO PRESSURE RESERVOIR
10
HEXAGON HEAD BOLT LINE MOUNTING M6X10
17
COMPRESSOR RANGE OF DELIVERY, ALSO ORDER: 1 X A 002 542 13 19
17
COMPRESSOR , WHEN REPLACING THE COMPRESSOR, THE AIR COMPRESSORCONTROL RELAY K40/7K0 MUST ALWAYS BE REPLACED, Replaced By: A2113200304, +001A2203270082, +001A2203270000
18
BRACKET
20
HOSE , A 37260220020901803
20
HOSE
25
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
28
INTAKE LINE COMPRESSOR
30
RUBBER GROMMET FILTER
30
RUBBER GROMMET , A 26505420020930802
35
FILTER AIR CLEANER
36
WASHER COMPRESSOR BEARING
37
RUBBER BUMPER COMPRESSOR BEARING
38
SPRING COMPRESSOR TO BRACKET
39
SPACER TUBE COMPRESSOR BEARING
40
NUT RELAY TO BRACKET M5
45
VALVE VALVE UNIT
47
CONNECTOR PRESSURE LINE TO PRESSURE RESERVOIR
50
PRESSURE SENSORM 10, Replaced By: A0045429018
55
RUBBER BUMPER
60
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
65
PRESSURE LINE
70
LINE VALVE BLOCK TO ACCUMULATOR
100
SCREW CLAMP TO BRACKET AND TO PIPE
105
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
110
GROMMET CABLE PASSAGE
115
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
120
CONNECTOR REPAIR SIZE
130
GROMMET PROTECTION AGAINST SCORING
140
CABLE STRAP LINE MOUNTING 260X3.3MM
150
PROTECTIVE PLATE AT FRONT CROSS MEMBER
160
PROTECTIVE PLATE AT FRONT CROSS MEMBER
170
EXPANSION PLUG AT BRACKET
180
STOP PLUG A-PILLAR, OUTSIDE RIGHT 22.5 MM
