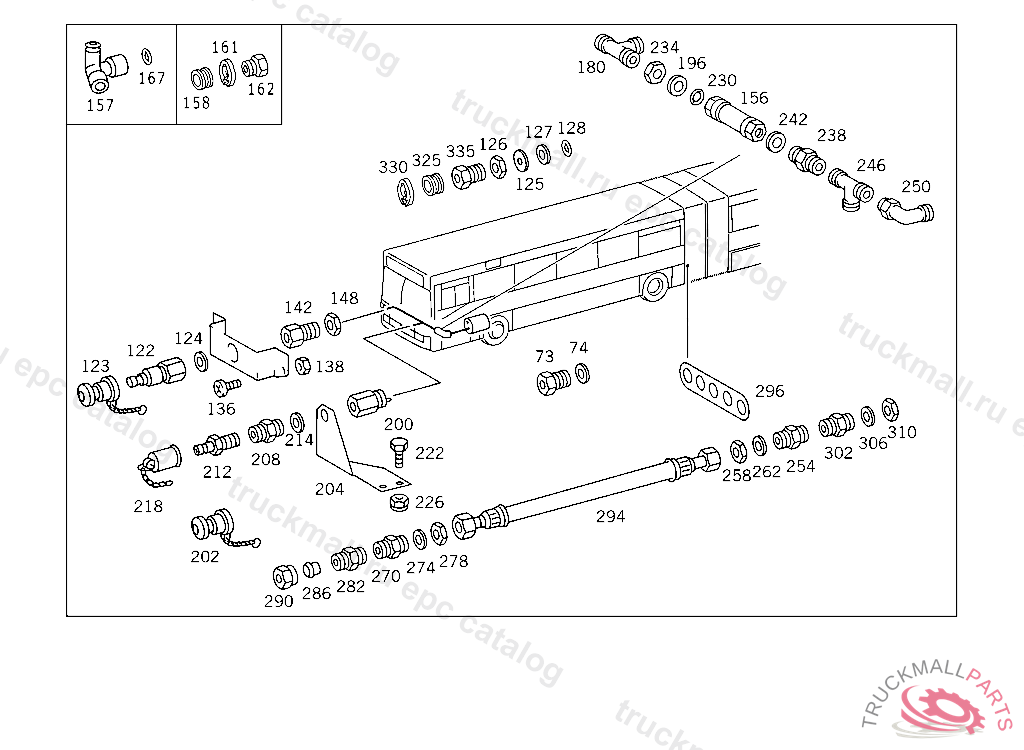

Поз.
Артикул
Описание
73
ADAPTER FITTING TEST CONNECTION
73
ADAPTER FITTING DRAIN VALVE
73
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
74
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
122
TEST CONNECTION BULKHEAD FITTING
123
PROTECTIVE CAP MAINTENANCE FLAP
124
SEAL RING CONTROL VALVE,CONNECTION: "A,P"
124
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
124
SEAL RINGTO 000 553 03 05,000 553 18 05,
125
WASHER BRACKET TO ENGINE
126
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
127
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
128
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
136
SCREW , Replaced By: N304017006016
136
SCREW HOOK TO BRACKET
136
SCREW PUMP TO BRACKET
138
NUT PUMP TO BRACKET
138
NUT TWO-WAY VALVE TO BRACKET
138
NUT , Replaced By: N913004006001
142
FITTING DOOR I ENTRANCE
148
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
148
NUT BRACKET TO SIDE MEMBER
156
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
157
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
158
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
161
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
162
SCREW. UNION SCREW LINE CONNECTION
167
O-RING CHECK VALVE TO AIR RESERVOIR
180
T-FITTING BETWEEN THE LINES
196
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
200
PRESSURE SWITCH MAKE PULSE 0.5BAR
200
SWITCH (PRESSURE SWITCH) 4.5 BAR
202
PROTECTIVE CAP MAINTENANCE FLAP
204
BRACKET REFILLING CONNECTION,FRONT
208
FITTING (PARTS KIT),LINE RUPTURE
208
FITTING TWO-WAY VALVE
212
CONNECTOR REFILLING CONNECTION,FRONT
212
CONNECTOR
214
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
214
SEAL RINGTO 000 553 03 05,000 553 18 05,
218
PROTECTIVE CAP TEST CONNECTION
218
PROTECTIVE CAP REFILLING CONNECTION
222
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
222
SCREW , Replaced By: N304017008016
226
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
230
O-RING CHECK VALVE TO AIR RESERVOIR
234
NUT CHECK VALVE TO AIR RESERVOIR
238
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
242
SEAL RING LINE CONNECTION
246
T-FITTING 3/2-WAY VALVE
250
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
254
FITTING HYDRAULIC LINE TO BRACKET,K 130132
258
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
262
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
262
WASHER , Replaced By: N000125015019
270
FITTING DELIVERY LINE TO FRAME
274
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
278
NUT BRACKET TO SIDE MEMBER
282
FITTING RELAY VALVE,CONNECTION: "10",950459
286
SEAL CONE LINE CONNECTION
286
GLAND , Replaced By: A0019901967
290
UNION NUT LINE CONNECTION
290
UNION NUT LINE CONNECTION, Replaced By: N000000006239
294
BRAKE HOSE FRONT AXLE
296
BRACKET BRAKE HOSE
302
FITTING DELIVERY LINE TO FRAME
306
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
310
NUT BRACKET TO SIDE MEMBER
325
LOCK RING LINE CONNECTION
325
SEAL RING , Replaced By: A0009940747
330
LOCK , Replaced By: A0009945448
330
LOCK LINE CONNECTION
335
SCREW. UNION SCREW LINE CONNECTION
335
SCREW. UNION SCREW , Replaced By: A0009973734
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
BRACKET AT BRACKET,072562 EXCEPT FOR 071422
999
BRACKET BRACKET TO BRACKET, NOT USED
999
BRACKET TEST CONNECTION
999
UNIT IDENTIFICATION PLATE
999
FITTING AT BRACKET
999
FITTING FITTING TO BRACKET
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
999
COUPLING REFILLING CONNECTION,CENTER
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
CONNECTOR REFILLING CONNECTION,FRONT
999
TEST CONNECTION
