Mercedes
BUS
O 405 ST
357.011
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

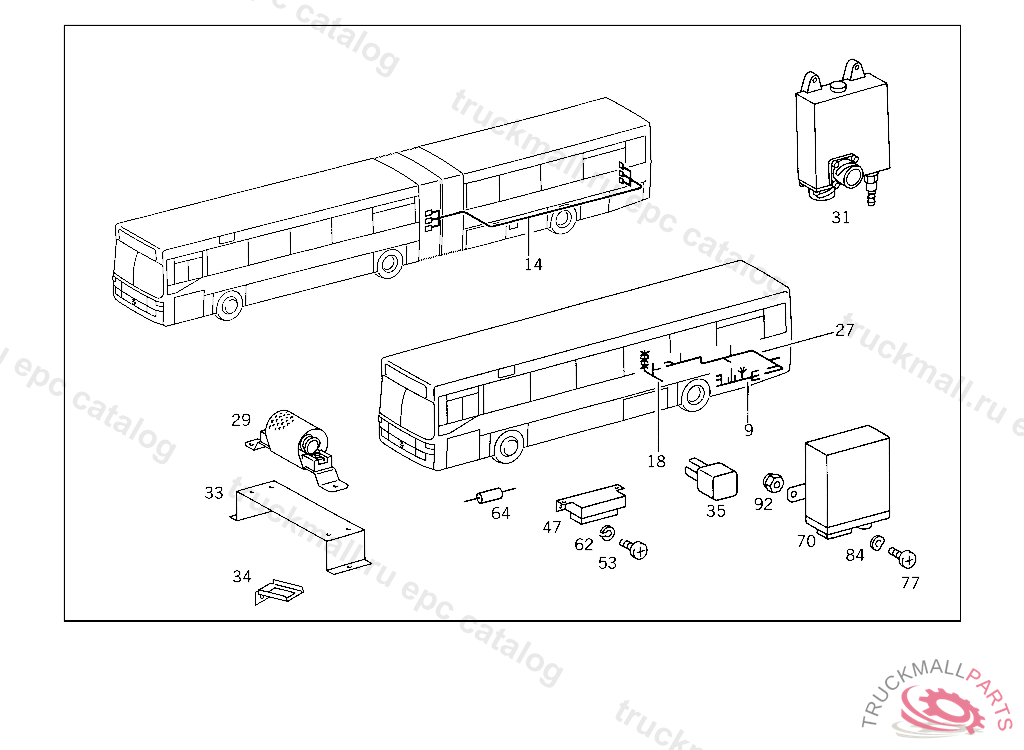

120 ELECTRICAL COMPARTMENT AND SECONDARY INSTRUMENT PANEL IL. 2

Mercedes N007985006580 - Болт

O 405 ST 357.011

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 120 ELECTRICAL COMPARTMENT AND SECONDARY INSTRUMENT PANEL IL. 2

Поз.
Артикул
Описание
9
A3215403735
ELECTRIC CABLE ELECTRICAL COMPARTMENT
9
A3575431831
CABLE HARNESS ELECTRICAL COMPARTMENT
9
A3575433807
ELECTRIC CABLE ELECTRICAL COMPARTMENT,081489
9
A3215407635
ELECTRIC CABLE ELECTRICAL COMPARTMENT
9
A3575439308
CABLE HARNESS ELECTRICAL COMPARTMENT
9
A3215439326
CABLE HARNESS ELECTRICAL COMPARTMENT
9
A3215403813
CABLE HARNESS ELECTRICAL COMPARTMENT
9
A3215434026
CABLE HARNESS ELECTRICAL COMPARTMENT
14
A3575433831
CABLE HARNESS FROM REAR END PLUG CONNECTION TO ARTICULATION PLUG CONNECTION
18
A3215439426
CABLE HARNESS SECONDARY SWITCHBOARD
18
A3575432308
CABLE HARNESS SECONDARY SWITCHBOARD
18
A3215403635
ELECTRIC CABLE SECONDARY SWITCHBOARD
18
A3575431931
CABLE HARNESS SECONDARY SWITCHBOARD
27
A3215439626
CABLE HARNESS FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
27
A3575434009
CABLE HARNESS FROM REAR END PLUG-CONNECTION TO SWITCH
27
A3575432331
CABLE HARNESS FROM REAR END PLUG-CONNECTION TO SWITCH
27
A3575433308
CABLE HARNESS FROM REAR END PLUG-CONNECTION TO SWITCH
27
A3575432531
CABLE HARNESS FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
27
A3215439526
CABLE HARNESS FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
27
A3575432131
CABLE HARNESS FROM REAR END PLUG-CONNECTION TO SWITCH
27
A3215434226
CABLE HARNESS FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
27
A3215404113
CABLE HARNESS FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
27
A3215403535
ELECTRIC CABLE FROM REAR CARRIAGE ARTIC.TO REAR CARR. SOLENOID VALVES,SECOND. INSTRUM. PANEL
29
A0005400265
RESISTOR BERU HEATER PLUGS 330 MOHM
29
A0005400365
RESISTOR BERU HEATER PLUGS 660 MOHM
31
A0004460106
PFA ELECTRONICS PARTICLE FILTER
33
A3575421040
BRACKET SERIES RESISTOR
34
A3578280914
BRACKET ROCKER SWITCH
35
A0025459105
RELAYK 297
35
A0035459605
RELAYA33, Replaced By: A0009822123
35
A0005458405
RELAY , Replaced By: A0035459605
35
A0009822123
RELAYA33
35
A0015455405
RELAY AT APPARATUS PLATE 50 A
35
A0025457005
RELAY MAIN INSTRUMENT PANEL K 43
35
A0025456305
RELAY SECONDARY SWITCHBOARD K 99
35
A0035459805
RELAY RELAY WITH ERASE DIODE 24V-10/20A,A32, K1, K3, K5
35
A0005455805
RELAY OIL PRESSURE GAUGE ECONOMY SWITCHING
35
A0005455405
RELAY , Replaced By: A0035459605
47
A6555480018
DIODE ,K 182153
47
A0005480167
DIODE BOX'A61'
47
A0005400624
DIODE CASE AUXILIARY HEATER
47
A0005400024
DIODE BOX RELAY TYP: AK 336.1
53
N007985005193
SCREW STEP SWITCH AM 5X10
62
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
64
A0015454318
RESISTORR 48,069753
70
A0095453532
CONTROL UNIT PARTICLE FILTER
77
N007985006580
SCREW APPARATUS PLATE TO CAB,K 062140
77
N007985006161
SCREW , Replaced By: N007985006580
84
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
92
N913004006002
NUT , Replaced By: N913004006001
92
N913004006001
NUT PUMP TO BRACKET
999
A3575458340
BRACKET TELL-TALE LAMPS
