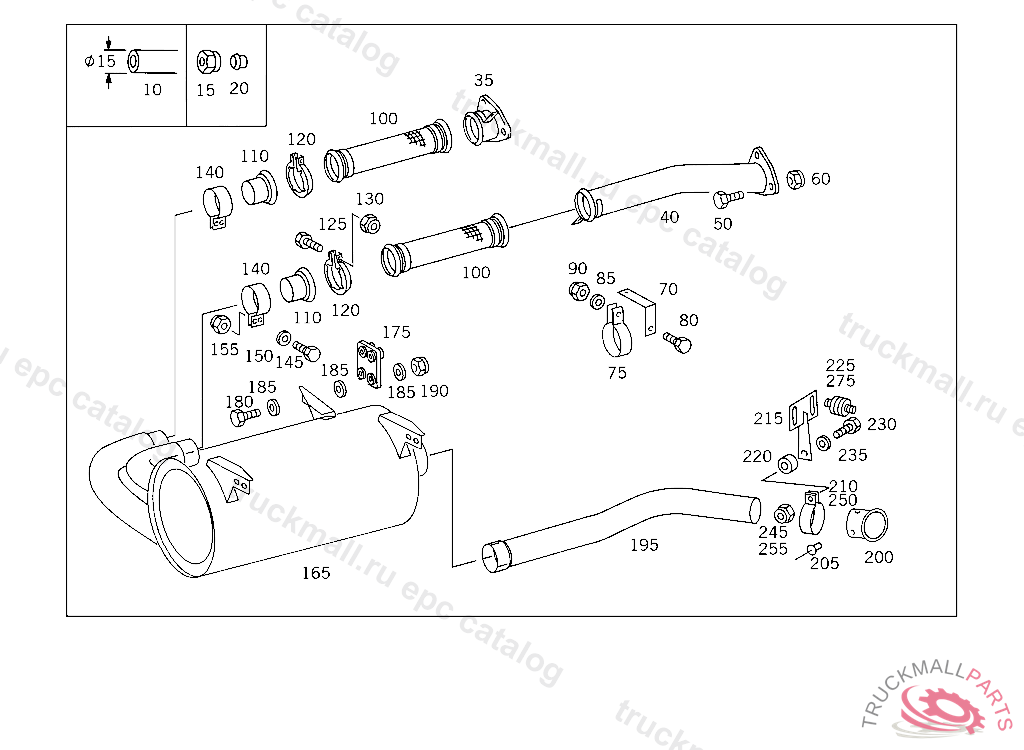

Поз.
Артикул
Описание
10
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
15
UNION NUT BUTT SCREW CONNECTION
15
UNION NUT LINE CONNECTION
20
GLAND LINE CONNECTION
35
EXHAUST PIPE SHORT,AT EXHAUST MANIFOLD,076650
40
EXHAUST PIPE LONG,AT EXHAUST MANIFOLD,076650
50
SCREW CONNECTOR TO EXHAUST MANIFOLD
60
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
70
BRACKET EXHAUST PIPE TO EXHAUST PIPE
75
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
80
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
80
SCREW SUPPORT TO CROSS MEMBER M 10X28
85
WASHER RADIATOR TO RUBBER MOUNTING
85
WASHER , Replaced By: N000125010532
90
NUT , Replaced By: N910113010000
90
NUT STRAP TO BRACKET
100
FLEXIBLE METAL TUBE CONNECTOR
110
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
120
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
125
SCREW , Replaced By: N304017008028
130
NUT , Replaced By: N913004008001
140
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
145
SCREW BRACKET TO SIDE MEMBER
145
SCREW , Replaced By: N304017010002
150
WASHER , Replaced By: N000125010532
150
WASHER RADIATOR TO RUBBER MOUNTING
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
165
EXHAUST MUFFLER ,076650
175
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
175
DAMPING PAD , Replaced By: A0004920082
180
SCREW STRAP TO BRACKET
185
WASHER EXHAUST MUFFLER TO STRAP
185
WASHER , Replaced By: N000125008443
190
NUT BRACKET TO SIDE MEMBER
195
EXHAUST PIPE
195
REAR EXHAUST PIPE TAIL PIPE
195
REAR EXHAUST PIPE1273,1 MM,076650
200
END PIECE REAR EXHAUST PIPE
200
END PIECE REAR EXHAUST PIPE
200
END PIECE REAR EXHAUST PIPE,076650
200
END PIECE REAR EXHAUST PIPE,076650
205
RIVET GEARING TO BACKREST FRAME 3 MM
210
CLAMP BREATHER LINE TO CYLINDER HEAD COVER, 630042
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
210
CLAMP , Replaced By: N071555094502
210
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
215
BRACKET REAR EXHAUST PIPE,079546
220
BUSHING EXHAUST PIPE TO BRACKET
225
RUBBER BUFFER BRACKET TO SUPPORT
225
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
230
SCREW END PIECE TO EXHAUST PIPE M 10X25
230
SCREW REAR EXHAUST PIPE TO MUFFLER
235
WASHER EXHAUST MUFFLER TO STRAP
235
WASHER RADIATOR TO RUBBER MOUNTING
235
WASHER , Replaced By: N000125008443
235
WASHER , Replaced By: N000125010532
245
NUT BRACKET TO SUPPORT AND TO END PIECE
245
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
245
NUT CONNECTING PIPE TO EXHAUST BRAKE
250
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
250
CLAMP , Replaced By: N071555100501
255
NUT REAR EXHAUST PIPE TO BRACKET
275
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
999
RADIATOR
999
BRACKET
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE , Replaced By: A3909970682, +001A3575200095, +003N915017025000
999
RECEPTACLE SILICONE GREASE
999
BUFFER RADIATOR TO SUPPORT
999
HOSE , Replaced By: A0020945482
999
HOSE , Replaced By: A0010947882
999
HOSE AIR INTAKE PIPE TO ENGINE
999
V-BELT SET2 PIECES
999
V-BELT FROM TIGHTENER PULLEY TO FAN PULLEY 12.5X1150,002448
999
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
AIR CLEANER , FOR USE WITH MERCEDES-BENZ BODY 357.0 FROM IDENT NO. 053931, 357.1 FROM IDENT NO. 053940 EXCEPT FOR 054199,054505,054697,054728,054744,054776,054828,054865,054879,054894,054939,054942,054976,054993, 055004,055022,055038,055077,055093,055097,055107,055111,055155,055211,055271,055294,055311,055322, 055393,055412,055458,055520,055533,055584,055633,055693,055749,055774,055847,055881,055898,055915. FOR VEHICULES LESS MERCEDES-BENZ BODY FROM IDENT NO. 053882 EXCEPT FOR 055191,055526.069464
999
AIR CLEANER ,086792
999
WASHER BEARING BRACKET TO SIDE MEMBER
999
BRACKET
999
LINE , NOT USED
999
BOOT PIPE ELBOW TO TURBOCHARGER
999
WASHER BRACKET TO SUBSTRUCTURE
999
PIPE SOCKET RETURN LINE TO TRANSMISSION
999
PAD FEED LINE TO BRACKET
999
PROTECTIVE PLATE
999
EXHAUST MUFFLER (POSTERIOR MUFFLER)
999
EXHAUST MUFFLER
999
EXHAUST PIPE
999
FLEXIBLE METAL TUBE , Replaced By: A3574921959
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
PIPE ELBOW
999
BRACKET PIPE ELBOW
999
PIPE ELBOW
999
LINE FROM OIL COOLER TO RETURN HOSE CONNECTION, USED WITH ZF TRANSMISSION
999
HOSE FEED LINE TO TRANSMISSION
999
COOLING WATER PIPE RETURN, FROM HOSE TO HOSE
999
BRACKET (CHARGING AIR INTERCOOLER)
999
COOLING WATER PIPE
999
COOLING WATER PIPE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE FROM AIR CLEANER TO TURBOCHARGER
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
CLAMP FEED LINE TO BRACKET
