Поз.
Артикул
Описание

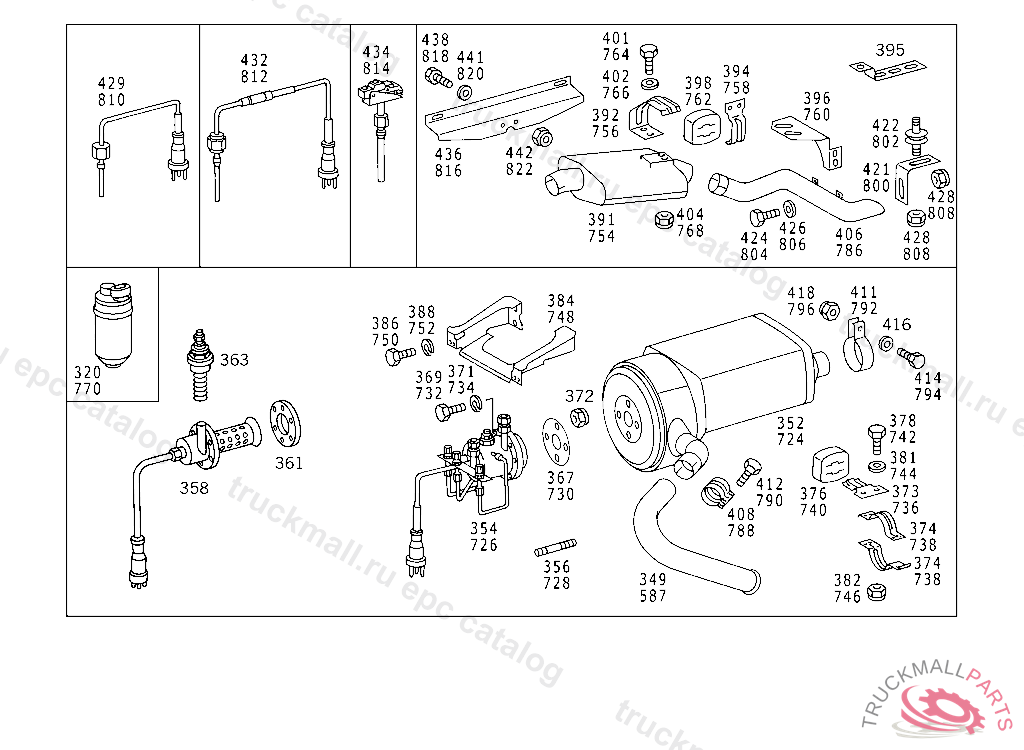

320
AUXILIARY PUMP FUEL PUMP
349
EXHAUST PIPE FRONT
349
EXHAUST PIPE FRONT
349
EXHAUST PIPE FRONT
352
SOOT FILTER
352
SOOT FILTER , Replaced By: A0004911894
354
METERING CHAMBER PARTICLE FILTER SYSTEM
354
METERING CHAMBER PARTICLE FILTER SYSTEM
356
STUD
358
BURNER
361
GASKET
363
HEATER PLUG
363
HEATER PLUG , Replaced By: A0008352326
367
GASKET COMBUSTION CHAMBER ON PARTICULATE TRAP
369
SCREW , Replaced By: N304017008027
369
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
371
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
372
NUT COMBUSTION CHAMBER ON PARTICULATE TRAP
373
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
374
CLAMP PARTICLE FILTER SUSPENSION
376
DAMPING PAD EXHAUST MUFFLER SUSPENSION
378
SCREW END PIECE TO EXHAUST PIPE M 10X25
378
SCREW EXHAUST PIPE TO BRACKET
381
WASHER RADIATOR TO RUBBER MOUNTING
381
WASHER , Replaced By: N000125010532
382
NUT , Replaced By: N910113010000
382
NUT STRAP TO BRACKET
384
SUPPORT PARTICLE FILTER,FRONT
386
SCREW PIPE CLAMP
386
SCREW , Replaced By: N304017008021
388
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
391
EXHAUST MUFFLER
392
BRACKET PARTICLE FILTER
394
BRACKET EXHAUST MUFFLER SUSPENSION
395
BRACKET POSTERIOR MUFFLER TO SUBSTRUCTURE
396
BRACKET BRACKET TO EXHAUST MUFFLER BRACKET
396
BRACKET , Replaced By: A3574901440
398
DAMPING PAD EXHAUST MUFFLER SUSPENSION
401
SCREW , Replaced By: N304017008034
401
SCREW BRACKET TO CROSS CONNECTION STRUT
402
WASHER , Replaced By: N000125008443
402
WASHER EXHAUST MUFFLER TO STRAP
404
NUT , Replaced By: N913004008001
406
EXHAUST PIPE REAR,074198
406
EXHAUST PIPE REAR
406
EXHAUST PIPE REAR
406
EXHAUST PIPE , Replaced By: A3574905121
408
CLAMP , Replaced By: N071555104501
408
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
411
CLAMP EXHAUST PIPE
411
CLAMP , Replaced By: A6554920340
414
SCREW , Replaced By: N304017012020
414
SCREW END PIECE TO EXHAUST PIPE M 12X30
416
WASHER
418
NUT END PIECE TO EXHAUST PIPE
421
BRACKET BRACKET TO CROSS MEMBER
422
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
424
SCREW PIPE CLAMP
424
SCREW , Replaced By: N304017008021
426
WASHER , Replaced By: N000125008443
426
WASHER EXHAUST MUFFLER TO STRAP
428
NUT , Replaced By: N913004008001
429
SENDER UNIT (TEMPERATURE SENSOR)
432
SENDER UNIT (FEELER),FLAME CONTROL
434
SENDER UNIT OVERHEATING
436
BRACKET SENDER UNIT TO BRACKET
438
SCREW PIPE CLAMP
438
SCREW , Replaced By: N304017008021
441
WASHER BRACKET TO CROSS MEMBER
442
NUT , Replaced By: N913004008001
587
EXHAUST PIPE FRONT
587
EXHAUST PIPE FRONT
724
SOOT FILTER
724
SOOT FILTER , Replaced By: A0004911894
726
METERING CHAMBER PARTICLE FILTER SYSTEM
726
METERING CHAMBER PARTICLE FILTER SYSTEM
730
GASKET COMBUSTION CHAMBER ON PARTICULATE TRAP
732
SCREW , Replaced By: N304017008027
732
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
734
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
736
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
738
CLAMP PARTICLE FILTER SUSPENSION
740
DAMPING PAD EXHAUST MUFFLER SUSPENSION
742
SCREW EXHAUST PIPE TO BRACKET
744
WASHER RADIATOR TO RUBBER MOUNTING
744
WASHER , Replaced By: N000125010532
746
NUT , Replaced By: N910113010000
746
NUT STRAP TO BRACKET
748
SUPPORT PARTICLE FILTER,FRONT
750
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
752
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
754
EXHAUST MUFFLER
756
BRACKET PARTICLE FILTER
758
BRACKET EXHAUST MUFFLER SUSPENSION
760
BRACKET BRACKET TO EXHAUST MUFFLER BRACKET
760
BRACKET , Replaced By: A3574901440
762
DAMPING PAD EXHAUST MUFFLER SUSPENSION
764
SCREW BRACKET TO CROSS CONNECTION STRUT
764
SCREW , Replaced By: N304017008034
766
WASHER , Replaced By: N000125008443
766
WASHER EXHAUST MUFFLER TO STRAP
768
NUT , Replaced By: N913004008001
770
AUXILIARY PUMP FUEL PUMP
786
EXHAUST PIPE REAR
786
EXHAUST PIPE REAR
786
EXHAUST PIPE REAR,074198
786
EXHAUST PIPE , Replaced By: A3574905121
788
CLAMP , Replaced By: N071555104501
788
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
792
CLAMP EXHAUST PIPE
792
CLAMP , Replaced By: A6554920340
794
SCREW , Replaced By: N304017012020
794
SCREW END PIECE TO EXHAUST PIPE M 12X30
796
WASHER
796
NUT END PIECE TO EXHAUST PIPE
800
BRACKET BRACKET TO CROSS MEMBER
802
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
804
SCREW PIPE CLAMP
804
SCREW , Replaced By: N304017008021
806
WASHER , Replaced By: N000125008443
806
WASHER EXHAUST MUFFLER TO STRAP
808
NUT , Replaced By: N913004008001
810
SENDER UNIT (TEMPERATURE SENSOR)
812
SENDER UNIT (FEELER),FLAME CONTROL
814
SENDER UNIT OVERHEATING
816
BRACKET SENDER UNIT TO BRACKET
818
SCREW , Replaced By: N304017008021
818
SCREW PIPE CLAMP
820
WASHER BRACKET TO CROSS MEMBER
820
WASHER PULL ROD TO SHIFT LEVER
822
NUT , Replaced By: N913004008001
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
