Поз.
Артикул
Описание

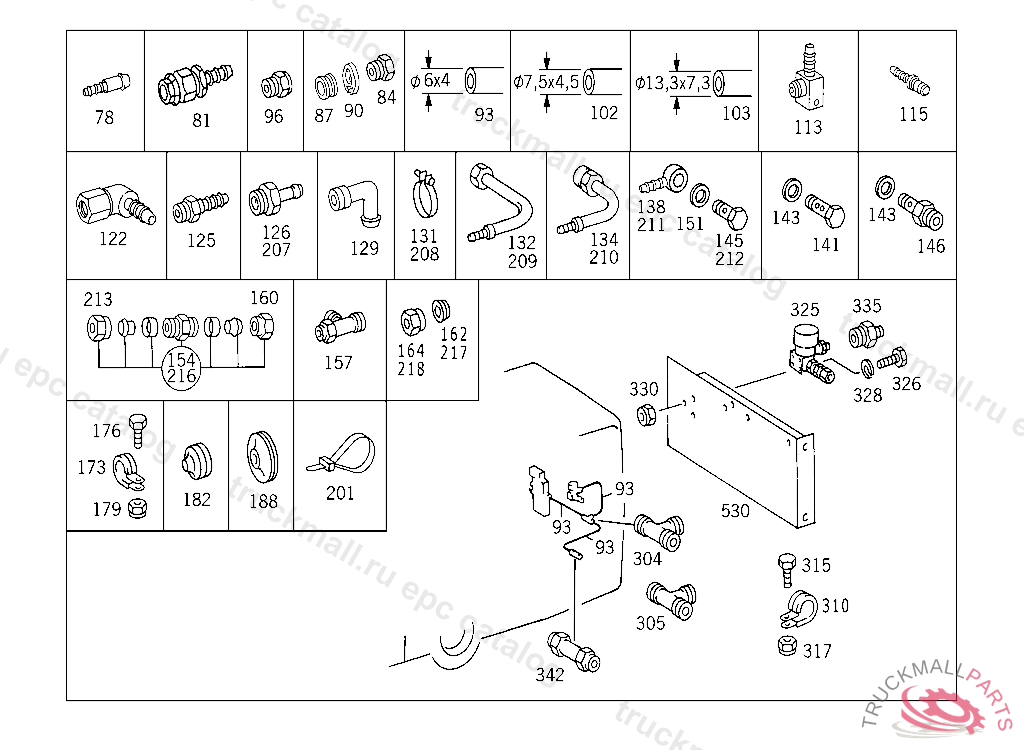

78
FITTING
81
CONNECTOR LINE MOUNTING
84
SCREW. UNION SCREW , Replaced By: A0009973734
84
SCREW. UNION SCREW LINE CONNECTION
87
SEAL RING , Replaced By: A0009940747
87
LOCK RING LINE CONNECTION
90
LOCK LINE CONNECTION
90
LOCK , Replaced By: A0009945448
93
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
96
FITTING LINE CONNECTION
96
FITTING LINE CONNECTION
102
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
103
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
113
CONNECTOR DISTRIBUTOR TO FRAME
115
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
115
CONNECTOR , Replaced By: A0029905378
122
ELBOW FITTING
125
FITTING ,A 002297
126
CONNECTOR CONNECTION OF FUEL LINES
129
FITTING CONNECTION OF FUEL LINES
131
HOSE CLAMP HOSE FASTENING 9/13MM
132
CONNECTOR LINE CONNECTION
134
CONNECTOR LINE CONNECTION
138
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
138
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
138
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
141
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
141
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
143
SEAL RINGTO 000 553 03 05,000 553 18 05,
145
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
145
HOLLOW SCREW LINE CONNECTION
146
HOLLOW SCREW FITTING LINE CONNECTION
151
SEAL RING SRREW PLUG
154
TS DOUBLE FITTING SOLENOID VALVE
154
FITTING (PARTS KIT),LINE RUPTURE
154
FITTING , Replaced By: A0029906171
157
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
160
NUT , Replaced By: A0019903254
160
UNION NUT
160
NUT LINE CONNECTION
160
NUT LINE CONNECTION
160
UNION NUT RETURN
162
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
164
UNION NUT RETURN
173
CLAMP SENSOR CABLE TO BRACKET
176
SCREW PUMP TO BRACKET
176
SCREW , Replaced By: N304017006016
179
NUT , Replaced By: N913004006001
179
NUT PUMP TO BRACKET
182
GROMMET 34 MM
188
GROMMET
188
GROMMET CABLE THROUGH ELECTRICAL COMPARTMENT,002062 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO IDENT NO. 017956 EXCEPT FOR 017867,017919
201
LOOM TIE LINE MOUNTING
207
CONNECTOR CONNECTION OF FUEL LINES
208
HOSE CLAMP HOSE FASTENING 9/13MM
209
CONNECTOR LINE CONNECTION
210
CONNECTOR LINE CONNECTION
211
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
212
HOLLOW SCREW LINE CONNECTION
213
UNION NUT
216
FITTING , Replaced By: A0029906171
216
FITTING (PARTS KIT),LINE RUPTURE
217
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
218
UNION NUT RETURN
304
FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227
304
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
305
T-FITTING
310
CLAMP SENSOR CABLE TO BRACKET
315
SCREW PUMP TO BRACKET
315
SCREW , Replaced By: N304017006016
317
NUT , Replaced By: N913004006001
317
NUT PUMP TO BRACKET
325
VALVE (SHUT-OFF VALVE),PNEUMATIC
326
SCREW TAIL LAMP GROUND CABLE TO WHEEL ARCH PANEL
328
LOCK WASHER T-FITTING TO BRACKET
330
NUT ATTACHMENT, MARKER LIGHT
330
NUT , Replaced By: N913002004001
335
T-FITTING , Replaced By: A0039976072
335
FITTING TEST PLUG CONNECTION
342
VALVE (CHECK VALVE)
530
BRACKET SOLENOID VALVE AND SHUT-OFF VALVE
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
