Поз.
Артикул
Описание
5

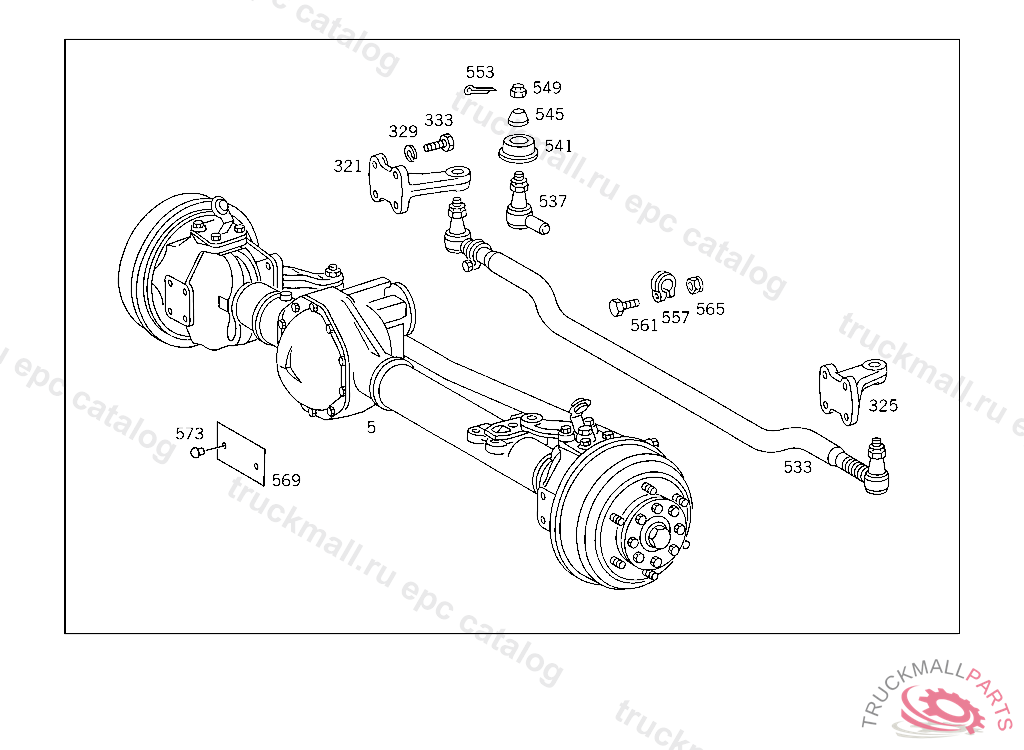

FRONT AXLE WITH BRAKE
321
STEERING ARM LEFT
325
STEERING ARM
329
LOCK WASHER FITTING TO BRACKET
333
SCREW , Replaced By: N308676012026
533
TIE ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3523302303
537
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0003309335
541
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
541
BOOT FIXED PART OF JOINT
549
NUT DRAG LINK TO LEVER,4 215305
553
COTTER PINROCKINGER TYP 260 G140
557
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
561
SCREW ,5 903514, Replaced By: N000960012353
565
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
569
UNIT IDENTIFICATION PLATE
573
RIVET TYPE PLATE TO AXLE HOUSING
