Поз.
Артикул
Описание

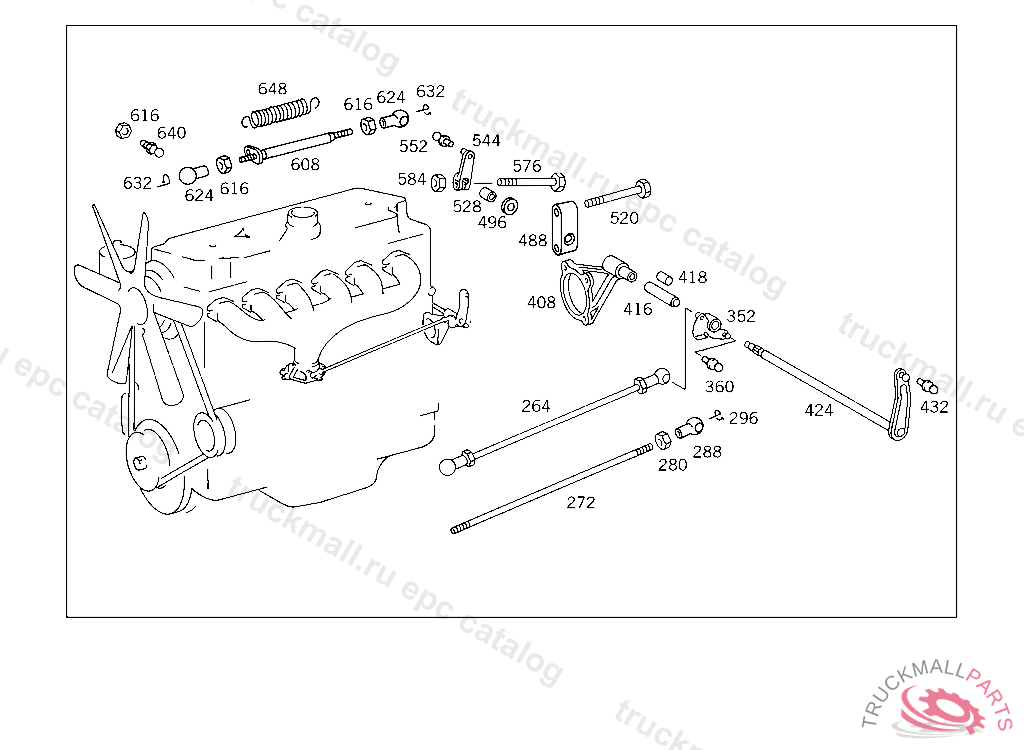

264
ROD
264
ROD FROM THROTTLE VALVE LEVER TO CONTROL SHAFT LEVER
272
ROD
272
ROD
280
NUT BALL PIVOT TO LEVER
288
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
296
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
352
LEVER EXHAUST BRAKE CONTROL
352
LEVER
360
BALL PIVOT LEVER
360
BALL PIVOT , Replaced By: A3129910120
408
FLANGE
416
BEARING
418
BUSHING
424
LEVER WITH INTERMEDIATE SHAFT
424
LEVER
432
BALL PIVOT LEVER
432
BALL PIVOT , Replaced By: A3129910120
488
BEARING BRACKET
496
WASHER
520
SCREW , Replaced By: N304017008018
520
SCREW SUPPORT TO FENDER
528
SPACER TUBE (CONTROL LEVER),INJECTION PUMP
528
SPACER TUBE
528
SPACER TUBE CONTROL SHAFT
528
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
544
LEVER
552
BALL PIVOT
576
SCREW
576
SCREW CAB FLOOR COVERING M 6X25
584
NUT , Replaced By: N304032005005
584
NUT BALL PIVOT TO LEVER
584
NUT IN CASE OF SUBSEQUENT INSTALLATION
608
ROD
616
NUT BALL PIVOT TO LEVER
624
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
632
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
640
BALL PIVOT ROD TO INJECTION PUMP LEVER
640
ANGLE JOINT PULL ROD
648
SPRING
999
LOCK RING , Replaced By: N900055020303
999
BALL PIVOT , Replaced By: A3129910120
999
EXHAUST MANIFOLD , 015733
999
ELBOW
999
LEVER , Replaced By: A3520709021
999
LEVER ACCELERATOR CONTROL
999
BUSHING , Replaced By: A4039920001
999
BUSHING , Replaced By: A3609920901
999
FLANGE , Replaced By: A3601500044
999
SHAFT , Replaced By: A3601440014
999
EXHAUST MANIFOLD , Replaced By: A3601400509, +002A3601420380, +012A4239900040, +001N000931010111, +011N000931010137
999
EXHAUST MANIFOLD , Replaced By: A3601400609, +002A3601420380, +012A4239900040, +001N000931010111, +011N000931010137
999
EXHAUST MANIFOLD WITH THROTTLE VALVE
999
EXHAUST MANIFOLD , Replaced By: A3601400409, +002A3601420380, +012A4239900040, +001N000931010111, +011N000931010137
999
LEVER ,938 089545
999
INTERMEDIATE SHAFT , Replaced By: A3601400066
999
ROD , Replaced By: A3270701875, +003N000934006007, +001N071803010101, +002N071805010204, +002N071805010403
999
ROD , Replaced By: A3270701975
999
ROD , Replaced By: A3270701875
999
BEARING BRACKET CONTROL
999
LEVER , Replaced By: A3600702921
999
SHAFT
999
SPACER TUBE , Replaced By: A3210720053
999
CYLINDER
