Поз.
Артикул
Описание

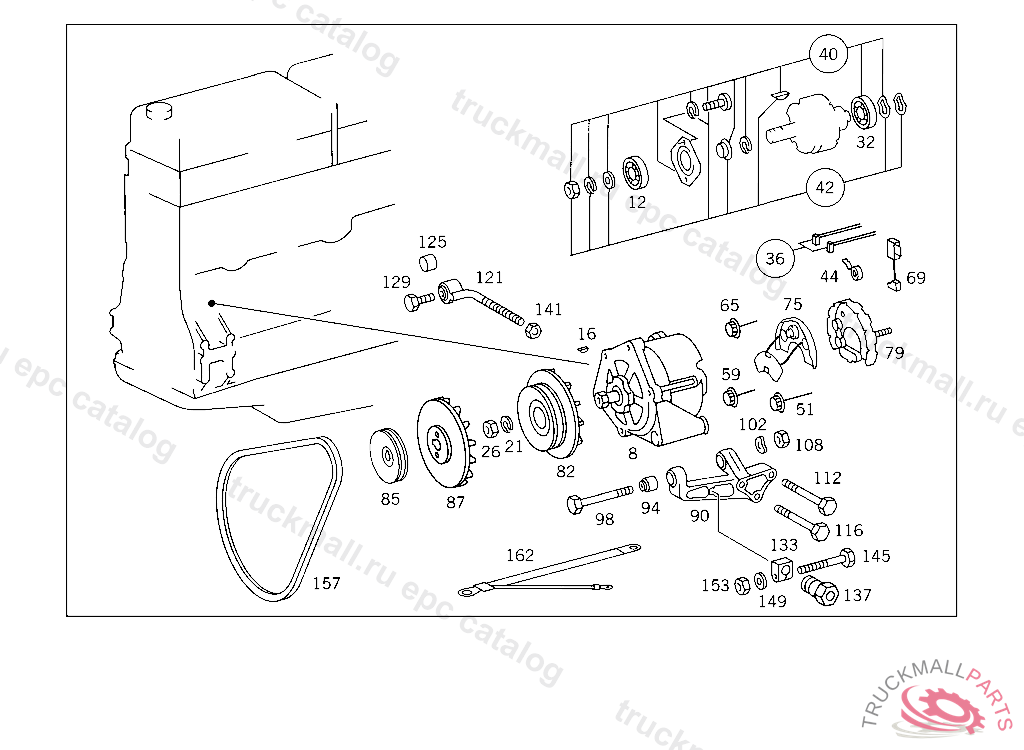

8
ALTERNATOR , Replaced By: A0091541502
8
ALTERNATOR , Replaced By: A0091540702
8
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0091540602
8
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 845546, Replaced By: A0071542302
8
ALTERNATOR , Replaced By: A0071542402
8
ALTERNATOR , Replaced By: A0051548302
8
ALTERNATOR , Replaced By: A0071542702
8
ALTERNATOR , Replaced By: A0051545102
8
ALTERNATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0051543102
8
ALTERNATOR , LESS INDIVIDUAL PARTS THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0051549902, +001A3141501672, +001A0059972292, +001N000960012262
8
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
12
BALL BEARING , Replaced By: A0079816625
12
GROOVED BALL BEARING
12
BALL BEARINGTO 007 154 27 02, 009 154 07 02
16
WOODRUFF KEY POWER STEERING PUMP
21
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
26
NUT BRACKET TO SIDE MEMBER,K 035196
26
NUT , Replaced By: N308673014001
32
BALL BEARING , Replaced By: A0089811225
32
GROOVED BALL BEARING
32
BALL BEARINGTO 005 154 34 02
32
BALL BEARINGTO 007 154 27 02, 009 154 07 02
36
CARBON BRUSH SET
40
REPAIR KIT
42
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
42
REPAIR KIT
44
SPRING
51
DIODE POS.
59
DIODE NEG.
65
DIODE
65
DIODE , Replaced By: A0015481518
69
CONDENSER
75
RECTIFIER
79
RECTIFIER
79
RECTIFIERTO 005 154 34 02
79
RECTIFIER , Replaced By: A0011542116
79
RECTIFIER , Replaced By: A0011542716
79
RECTIFIER , Replaced By: A0011542116
79
RECTIFIER , Replaced By: A0011541616
79
RECTIFIER , Replaced By: A0011541116
79
RECTIFIER , Replaced By: A0011541516
79
RECTIFIER , Replaced By: A0001544716
82
FAN ALTERNATOR
85
FAN WITH PULLEY
87
FAN , Replaced By: A0001558518
90
BRACKET
94
BUSHING
98
SCREW DUMPER SHAFT,5 515436
98
SCREW , Replaced By: N304014010015
102
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
108
NUT AIR CLEANER ELEMENT
112
SCREW MOUNTING PLATE TO SUBSTRUCTURE M 12X40, FIXTURE A/C COMPRESSOR MAKE KONVEKTA
112
SCREW
116
SCREW RELEASE LEVER TO SHAFT
116
SCREW , Replaced By: N304017012018
116
SCREW , Replaced By: N000933012102
121
CLAMPING BOLT (CLAMPING BOLT)
125
BUSHING
129
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
133
CLAMPING PIECE TIGHTENER PULLEY
133
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
137
NUT TIGHTENER PULLEY TO LEVER
141
NUT
141
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
145
SCREW ,5 903514, Replaced By: N000960012353
145
SCREW TORSION BAR TO SHACKLE,5 903514
149
WASHER
153
NUT STRAP TO SUPPORT
157
V-BELT12.5X1325
157
V-BELT SET OF NARROW V-BELTS2 PIECES 12.5X1325
157
V-BELT SET2 PIECES 12.5X1300
157
V-BELT FAN DRIVE,D 180260
157
V-BELT
162
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
999
NUT
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW T-FITTING TO BRACKET M4X25
999
SCREW , Replaced By: N007985004130
999
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
999
WOODRUFF KEY
999
NUT , Replaced By: N304032008006
999
NUT BALL PIVOT TO LEVER
999
GROOVED BALL BEARING , Replaced By: N000625436303
999
GROOVED BALL BEARING
999
NUT WEAR INDICATOR
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER ALTERNATOR CONNECTION W
999
SPRING WASHER HEATER PLUG CABLE HARNESS
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
CYLINDRICAL PIN ALTERNATOR
999
CLAMPING BOLT (CLAMPING BOLT)
999
SCREW ALTERNATOR MOUNTING
999
BALL BEARING , Replaced By: A0079816625
999
ALTERNATOR
999
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
999
ALTERNATOR , MB PART NO.003 154 39 02BOSCH PART NO. 0 120 400 700 MB PART NO.005 154 29 02BOSCH PART NO. 0 120 489 723 MB PART NO.005 154 33 02BOSCH PART NO. 0 120 489 725, Replaced By: A0051543302
999
V-BELT FAN DRIVE,D 180260
999
ALTERNATOR , Replaced By: A0031548702
999
ALTERNATOR
999
ALTERNATOR , Replaced By: A0031547502
999
REGULATOR AND CUT-OUT , Replaced By: A0021543906
999
REGULATOR AND CUT-OUT , Replaced By: A0001541805
999
SCREW , Replaced By: A0009909621
999
SCREW , Replaced By: A0009907621
999
SCREW HOUSING
999
SCREW , Replaced By: A0019902120
999
SCREW
999
SCREW , Replaced By: A0009907121
999
SCREWTO 005 154 51 02
999
DIODETO 003 154 33 02
999
DIODE EXCITER TO 003 154 33 02
999
DIODE , Replaced By: A0015481518
999
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
999
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
999
PULLEY , Replaced By: A0011551015
999
RECTIFIERTO 009 154 15 02
999
SCREW
999
SCREW
999
SCREWTO 003 154 33 02
999
SCREW
999
SCREW , Replaced By: A0009907921
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009909821
999
SCREW , Replaced By: A0019900821
999
SCREW , Replaced By: A0009909721
999
SCREW , Replaced By: A0019900321
999
SCREW REGULATOR MOUNTING TO 009 154 07 02
999
SCREW
999
SCREW , Replaced By: A0009908221
999
DIODE , Replaced By: A0015481418
999
DIODETO 003 154 33 02
999
DIODE
999
DIODE , Replaced By: A0015481518
999
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
999
FAN , Replaced By: A0001558518
999
FAN , Replaced By: A0001557918
999
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
999
RECTIFIER
999
RECTIFIER
999
RECTIFIERTO 005 154 52 02
999
RECTIFIERTO 005 154 83 02,006 154 67 02
999
RECTIFIERTO 005 154 29 02
999
SPRINGTO 344 154 71 02
999
REGULATORTO 007 154 26 02
999
GASKETTO 007 154 26 02
999
REPAIR KIT ROTOR TO 005 154 52 02
999
TERMINAL TERMINALS: B+, B-, D+, W
