Mercedes A2202403217 - ПОДУШКА ДВИГАТЕЛЯ

S 350 4MATIC 220.187

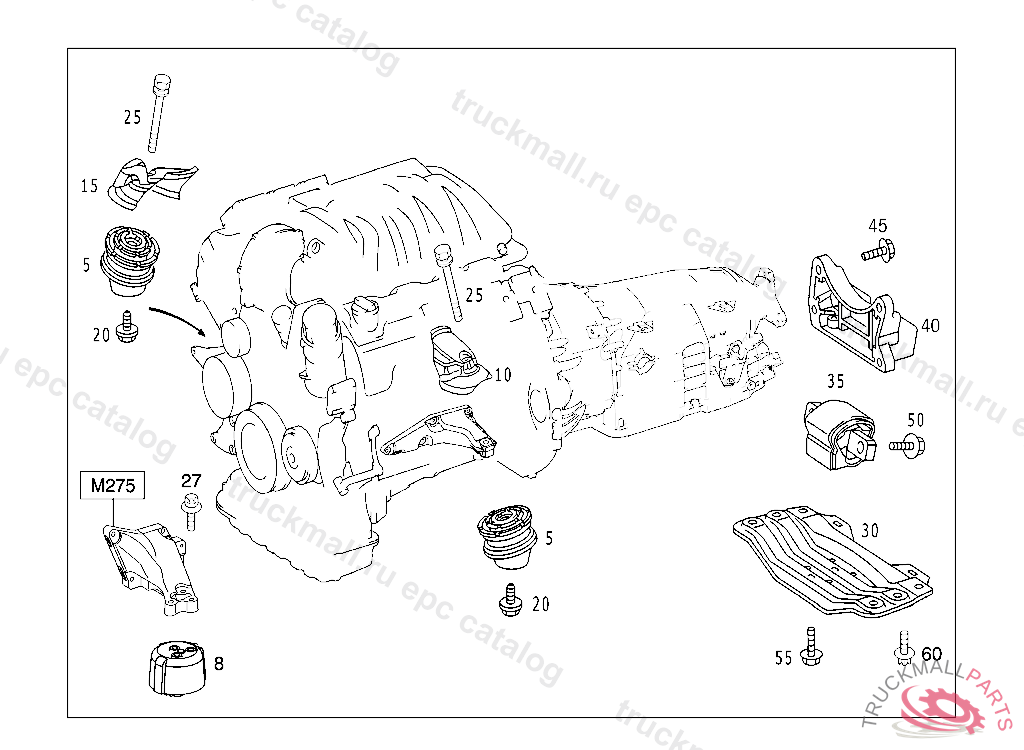

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
5
A2202403217
RUBBER MOUNT FRONT RIGHT
10
A2202410134
SCREENING PLATE LEFT
10
A2202411134
SCREENING PLATE FRONT LEFT, NO LONGER AVAILABLE
15
A2202400045
SCREENING PLATE FRONT RIGHT
20
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
25
N304017010051
SCREW
25
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
50
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
60
A0039900422
BOLT ENGINE REAR SUPPORT TO FRAME
60
A2109900312
BOLT ENGINE SUPPORT TO FRAME M10X25
