Mercedes A2203200254 - ПРОВОД

S 350 4MATIC 220.187

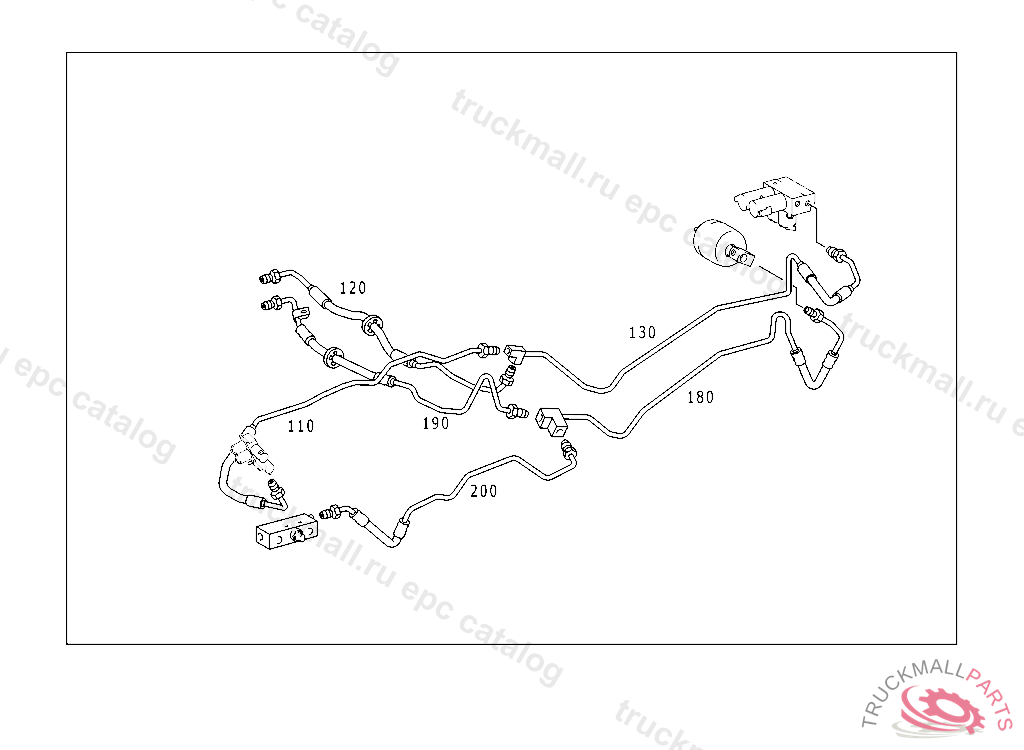

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 290 LINE ARRANGEMENT OF HYDRAULIC SYSTEM IL. 2

Поз.
Артикул
Описание
110
A2209978282
HOSE VALVE BLOCK, FRONT LEFT, TO DISTRIBUTOR FITTING
120
A2203200454
LINE HIGH PRESSURE
130
A2203200254
LINE VALVE BLOCK CONNECTION "BLUE" TO DISTRIBUTOR, A 33789720021127
180
A2209977782
HOSE RETURN RESERVOIR TO RETURN DISTRIBUTOR
190
A2203200753
LINE LOW PRESSURE
190
A2209972982
HOSE DISTRIBUTOR RETURN FLOW TO PULSATION DAMPER CONNECTION "T", Replaced By: A2209978182
190
A2209978182
HOSE DAMPER CONNECTION "T" TO DISTRIBUTOR FITTING, Replaced By: A2203200753
200
A2209978582
HOSE DISTRIBUTOR, FRONT LEFT, TO DISTRIBUTOR FITTING
