Поз.
Артикул
Описание
5

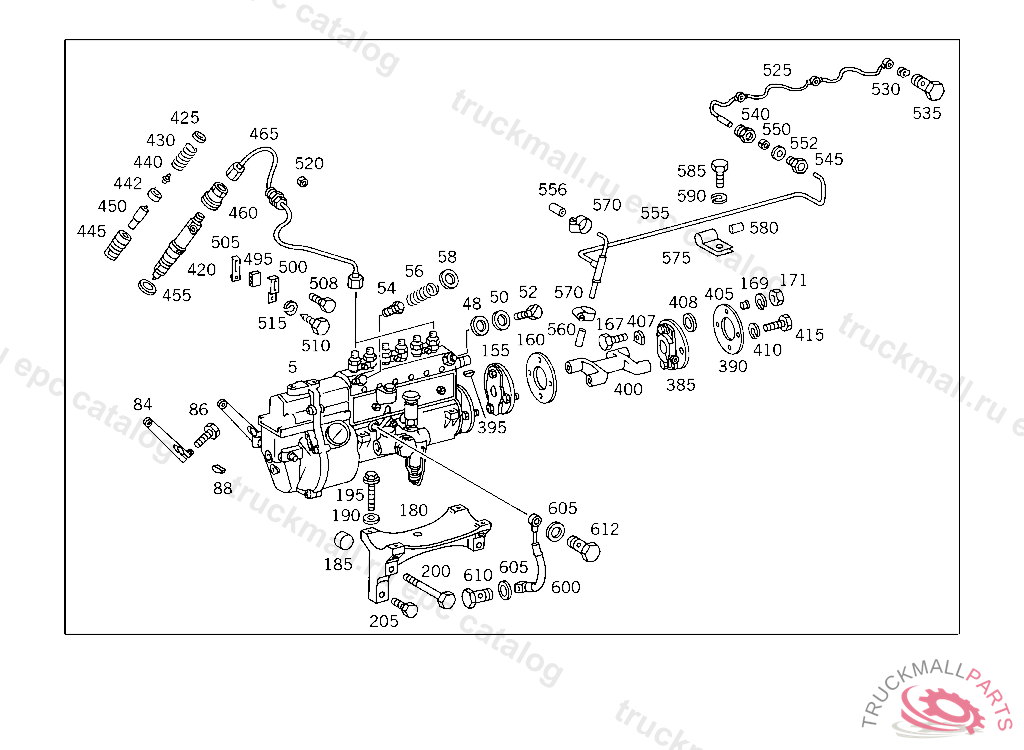

INJECTION PUMP
48
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SEAL RINGTO 000 429 24 30
52
SCREW BREATHER TO 001 477 14 01
54
PRESSURE VALVE PRESSURE RELIEF
56
SPRING ,295837/93
58
SEAL RINGTO 001 431 72 14
84
LEVER , Replaced By: A0000744927
86
SCREW , WITH DIESEL ENGINE
86
SCREW , Replaced By: N304017006019
88
WOODRUFF KEY INJECTION PUMP
155
COUPLINGTO 007 074 03 02
160
DISC
167
SCREW PIPE CLAMP
167
SCREW , Replaced By: N304017008021
169
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
171
NUT
180
BEARING BRACKET
185
FITTED SLEEVE
190
SPHERICAL WASHER RAIL TO SCREW
195
SCREWM 8X70
200
SCREW SUPPORT TO CYLINDER CRANKCASE M 12X80
205
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
205
SCREW , Replaced By: N304017012012
385
COUPLING INJECTION PUMP DRIVE
390
DISC
395
WOODRUFF KEY FLANGE TO SHIFTING TUBE
400
FOLLOWER
405
BUSHING FOLLOWER TO COUPLING
407
INTERMEDIATE PIECE
408
WASHER
410
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
415
SCREW , Replaced By: A0069909301
415
SCREW BRACKET TO APPARATUS SUPPORT
420
NOZZLE HOLDER WITH NOZZLE
425
SPACER WASHER0.90 MM
425
SHIM1.78 MM
425
SHIM, 1.25 MM THICK. SPACER WASHER1.24 MM
425
SPACER WASHER0.94 MM
425
SHIM, 1.05 MM THICK. SPACER WASHER1.04 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SPACER WASHER1.28 MM
425
SHIM, 1.10 MM THICK. SPACER WASHER1.1 MM
425
COMPENSATING DISC1.14 MM
425
SHIM1.34 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SHIM, 1.15 MM THICK. SPACER WASHER1.15 MM
425
SHIM, 1.20 MM THICK. SPACER WASHER1.2 MM
425
SHIM, 1.30 MM THICK. SPACER WASHER1.3 MM
425
SHIM, 1.35 MM THICK. SPACER WASHER1.34 MM, Replaced By: A0030177852
425
SHIM, 1.40 MM THICK. SPACER WASHER , Replaced By: A0030178452
425
SHIM, 1.50 MM THICK. SPACER WASHER1.50 MM, Replaced By: A0030179452
425
SHIM, 1.70 MM THICK. SPACER WASHER , Replaced By: A0040171452
425
SHIM, 1.80 MM THICK. SPACER WASHER1.80 MM, Replaced By: A0040172452
425
SHIM, 1.85 MM THICK. SPACER WASHER , Replaced By: A0040172852
425
SPACER WASHER , Replaced By: A0030179252
425
SPACER WASHER , Replaced By: A0040171252
425
SPACER WASHER1.78 MM, Replaced By: A0040172252
425
SPACER WASHER1.88 MM, Replaced By: A0040173252
425
SPACER WASHER1.98 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SPACER WASHER1.30 MM
425
SPACER WASHER1.38 MM
425
SPACER WASHER1.68 MM
425
SHIM, 1.95 MM THICK. SPACER WASHER1.95 MM
425
SPACER WASHER1.48 MM
425
SPACER WASHER0.98 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SHIM, 1.0 MM THICK. SPACER WASHER1.0 MM
425
SHIM, 1.75 MM THICK. SPACER WASHER1.75 MM
425
SPACER WASHER1.58 MM
425
SHIM, 1.90 MM THICK. SPACER WASHER1.9 MM
425
SPACER WASHER1.18 MM
425
SPACER WASHER1.08 MM
425
SHIM, 1.65 MM THICK. SPACER WASHER1.65 MM
425
SPACER WASHER1.88 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SPACER WASHER0.88 MM
425
SPACER WASHER0.84 MM
425
SHIM, 1.60 MM THICK. SPACER WASHER1.6 MM
425
SPACER WASHER1.50 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SPACER WASHER1.20 MM
425
SPACER WASHER1.98 MM
425
SPACER WASHER0.80 MM
425
SPACER WASHER1.70 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
425
SHIM, 1.45 MM THICK. SPACER WASHER1.45 MM
425
SPACER WASHER1.40 MM
425
SHIM, 1.55 MM THICK. SPACER WASHER1.55 MM
425
SPACER WASHER1.84 MM
425
SPACER WASHER1.80 MM
430
PRESSURE SPRING
440
PIN
442
SPACER WASHER , Replaced By: A0020172252
442
SHIM , Replaced By: A0010179452
442
SPACER WASHER
442
SPACER WASHER AS REQUIRED
445
UNION NUT AS REQUIRED M 24X1.5
445
UNION NUT , Replaced By: A0000174616
445
UNION NUT AS REQUIRED M 22X1.5
450
NOZZLE
455
SEAL RING NOZZLE HOLDER TO CYLINDER HEAD 1.0 MM
455
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3880170160
455
SEAL RING NOZZLE HOLDER TO CYLINDER HEAD 1.5 MM
460
SCREW
465
LINE
465
LINENO. 4
465
LINENO. 5
465
LINENO. 1
465
LINENO. 3
465
LINENO. 2
465
LINENO. 6
495
SHIM DELIVERY LINE IN CLAMPING PIECE
495
SHIM , Replaced By: A6034280284, +002A0004290540
500
CLAMP , Replaced By: A0004290540, +002A3660780386
500
CLAMP , Replaced By: A0004290540, +002A3660780386
500
BRACKET
505
CLAMPING PIECE , Replaced By: A0004290540, +002A6034280284
505
CLAMPING PIECE , Replaced By: A0004290540, +002A6034280284
508
SCREW , Replaced By: N304017006018
508
SCREW COVER PLATE TO COVER PLATE M 6 X 12
510
TAPPING SCREW. SHEET METAL SCREW OIL LINE MOUNTING
515
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
520
SEAL RING CONNECTION TO CYLINDER HEAD
520
SEAL RING DELIVERY LINES
525
LINE FUEL LEAK LINES
530
SEAL FUEL LEAK LINE
535
HOLLOW SCREW LEAK LINE TO NOZZLE HOLDER
540
SCREW PLUG
545
SCREW PLUG
550
SEAL RING DELIVERY LINES
552
WASHER , Replaced By: N000988008024
552
FITTED WASHER
555
LINE ,015232
556
HOSE LEAK LINE, ORDER BY THE METER
556
HOSE ,015231
570
CLAMP FUEL LEAK LINE,FUEL FILTER
575
CLAMP LEAK LINE TO CYLINDER HEAD
580
RUBBER SLEEVE LEAK LINE TO CYLINDER HEAD
585
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
590
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
600
OIL LINE FROM OIL FILTER TO INJECTION PUMP
605
SEAL RING , Replaced By: N007603010110
605
SEAL RING PNEUMATIC VALVE
610
HOLLOW SCREW LINE CONNECTION
612
HOLLOW SCREW LINE CONNECTION
999
STRAINER ,D 031294
999
CLAMPING BRACKET FILTER HOUSING TO PUMP
999
NUT
999
STUD
999
CLAMPING PIECE LINE MOUNTING, ON TRUCKS FROM CHASSIS 156442-263695,ON BUSES FROM CHASSIS 020034-263695,FROM CHASSIS 263696 SEE MICRO FICHE 723.0 ONLY FOR USE WITH HYDRAULIC MODULATOR
999
LINE ,011149 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3600701235, +002A3604760026
999
ROD , Replaced By: A3270701875, +003N000934006007, +001N071803010101, +002N071805010204, +002N071805010403
999
BUSHING
999
DRIVE SHAFT
999
HOLLOW SCREW OIL DELIVERY LINE TO OIL FILTER
999
SEGMENT
999
LINE ,011150015231, Replaced By: A3600701235, +002N073379006203
999
BEARING HOUSING , Replaced By: A3600701315, +001N007603016102, +001N007604016102
