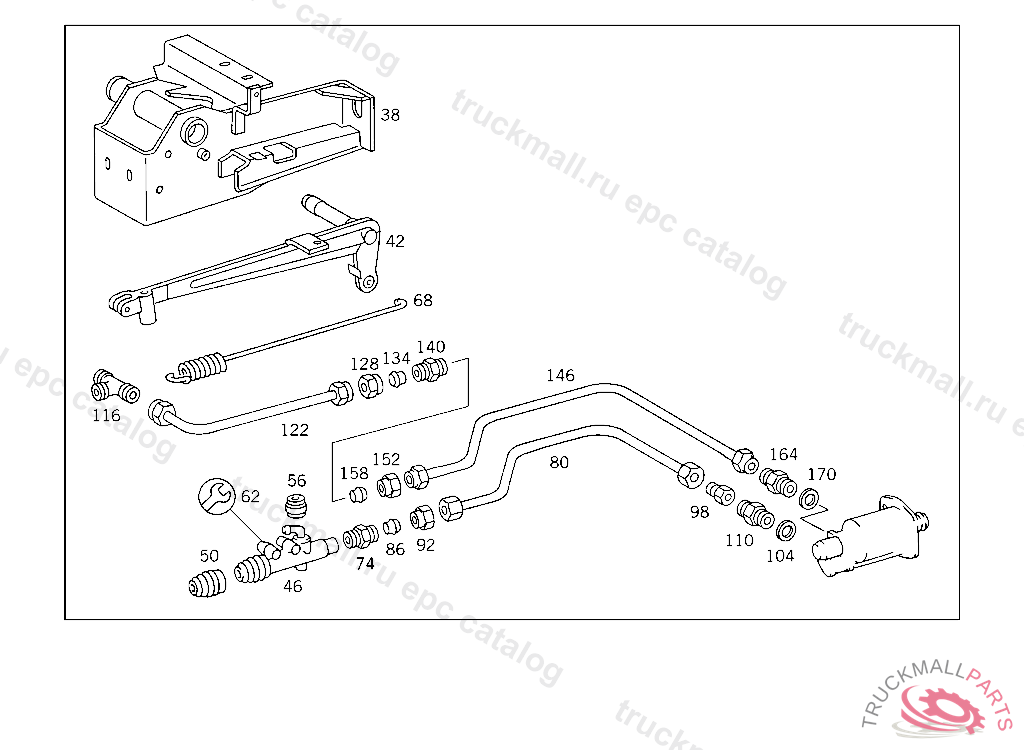

Поз.
Артикул
Описание
38
BEARING BRACKET (PEDAL BEARING BRACKET)
42
PEDAL (CLUTCH PEDAL)
46
MASTER CYLINDER CLUTCH
50
BOOTTO 345 295 70 06
56
PLUG
62
REPAIR KIT CLUTCH MASTER CYLINDER
68
SPRING , Replaced By: A3649937010
74
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
80
LINE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,069114
80
LINE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,C 069115
86
GLAND LINE CONNECTION
92
UNION NUT LINE CONNECTION
98
FITTING CLUTCH SLAVE CYLINDER
104
SEALING RING. SEAL RING ENGINE BREATHING
110
FITTING
116
T-FITTING
116
T-FITTING , Replaced By: A0009905270
122
LINE FROM T-FITTING TO CLUTCH BOOSTER,C 066820C 069114
128
UNION NUT LINE CONNECTION, Replaced By: N000000006239
134
GLAND , Replaced By: A0019901967
140
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
140
CONNECTION FITTING , Replaced By: A0049971772
146
LINE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,069114
152
UNION NUT LINE CONNECTION, Replaced By: N000000006239
152
UNION NUT LINE CONNECTION, Replaced By: N000000006239
158
GLAND , Replaced By: A0019901967
158
GLAND , Replaced By: A0019901967
164
FITTING DELIVERY LINE TO PUMP
164
SCREW-IN FITTING OIL LINE CONNECTION
170
SEAL RING VALVE TO VALVE,K 025179
170
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
170
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
999
SLEEVE LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
999
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
999
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
999
LINE FROM T-FITTING TO CLUTCH BOOSTER,C 069115
999
LINE FROM CONNECTOR IV TO CONNECTOR V,C 069115
999
LINE FROM CONNECTOR III TO CONNECTOR IV,C 069115
999
FITTING CLUTCH SLAVE CYLINDER
