Поз.
Артикул
Описание

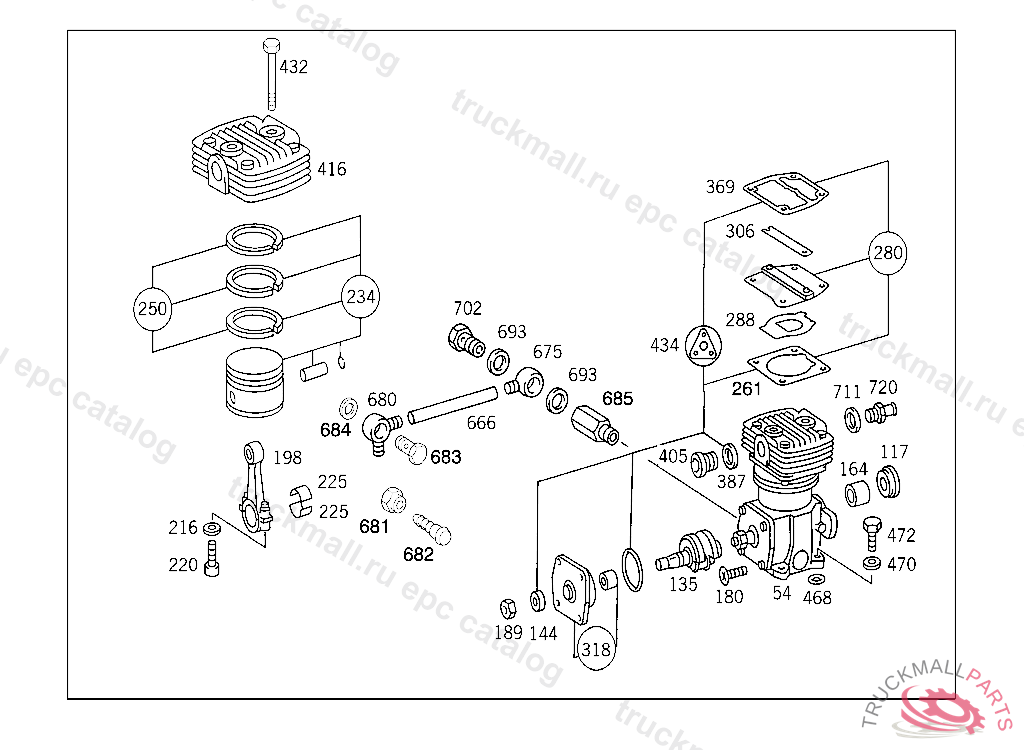

54
COMPRESSORWABCO 220CCM
54
COMPRESSORWABCO 150CCM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
54
COMPRESSORWABCO, FROM ENGINE 048760 ALSO INSTALLED ON 048663,048665-048668,048670,048672,048675-048677,048679,048681-048682,048684,048686,048688,048690, 048692,048694,048696,048698,048700-048702,048704,048716-048719,048726,048728-048742,048744-048757. UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
54
COMPRESSORWABCO 220CCM
54
COMPRESSOR , Replaced By: A0031316301
117
CAP COVER TO AIR COMPRESSOR FLANGE TO 003 131 48 01
135
CRANKSHAFTWABCO
135
CRANKSHAFTTO 003 131 59 01
144
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
164
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
164
BUSHING CRANKSHAFT REAR BEARING
180
SCREW BEARING CAP TO HOUSING TO 003 131 48 01,004 131 58 01
189
NUT VIBRATION ABSORBER TO CONSOLE
189
NUTTO 376 131 74 01
198
CONNECTING ROD LESS BEARING SHELLS TO 003 131 48 01,004 131 58 01
198
CONNECTING RODTO 003 131 59 01
216
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
220
SCREW CONNECTING ROD CAP TO CONNECTING ROD WABCO
220
SCREW OIL PUMP HOUSING M6X35
225
BEARING SHELLTO 003 131 48 01,004 131 58 01
234
PISTONTO 003 131 48 01,004 131 58 01
234
PISTONTO 376 131 74 01
234
PISTONTO 003 131 59 01
234
PISTON , Replaced By: A0001312007
250
PISTON RING PARTS KIT
250
PISTON RING PARTS KIT TO 003 131 63 01,004 131 05 01/19 01
250
PISTON RING
250
PISTON RING PARTS KIT TO 003 131 59 01
261
GASKETWABCO
261
GASKETTO 003 131 48 01
261
GASKET
261
GASKET , Replaced By: A4421310980
261
GASKET , Replaced By: A0011316480
280
VALVE. REPAIR KIT , Replaced By: A0001307915
280
VALVE PARTS KIT
280
REPAIR KIT PARTS KIT TO 003 131 59 01
280
VALVE (DISC VALVE)
288
VALVE DISC (SUCTION DISC)
288
VALVE DISC (SUCTION DISC) TO 003 131 48 01,004 131 58 01
306
VALVE DISC (PRESSURE DISC)
306
VALVE DISC , Replaced By: A0001313831
306
VALVE DISC (PRESSURE DISC) TO 004 131 01 01
318
BEARING CAP PARTS KIT TO 004 131 58 01
318
BEARING CAPTO 376 131 74 01
369
GASKETWABCO
369
GASKET CYLINDER HEAD TO CYLINDER LINER TO 004 131 58 01
369
GASKET VALVE DISC,CYLINDER COVER TO 002 131 36 01
369
GASKET , Replaced By: A0011316580
369
GASKET , Replaced By: A0011316780
387
SEAL RING LINE TO OIL PUMP
387
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
387
SEAL RINGTO 376 131 74 01
405
SCREW PLUG OIL COOLER,5 360280
405
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
405
SCREW PLUG , Replaced By: N000908022011
405
SCREW PLUG , Replaced By: N000908026008
405
SCREW PLUG , Replaced By: A0009973532
416
CYLINDER HEADTO 004 131 01 01
416
CYLINDER HEADWABCO
416
CYLINDER HEADTO 003 131 48 01,004 131 58 01
432
SCREW VALVE TO BRACKET
432
SCREW DIFFERENTIAL CASE
432
SCREW VALVE TO BRACKET, Replaced By: N304014008002
434
GASKET KIT , Replaced By: A0001301615
434
GASKET KIT , Replaced By: A0001301815
434
GASKET KIT AIR COMPRESSOR TO 003 131 59 01
434
GASKET KIT AIR COMPRESSOR TO 004 131 58 01
468
SEAL RING
470
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
470
WASHER , Replaced By: A1169901440
472
SCREW AIR COMPRESSOR TO SUPPORT M 8X35
666
HOSE FROM FUEL TANK TO HEATER 4X8 MM, ORDER BY THE METER
675
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
680
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
680
BANJO UNION HOSE WIDTH, / I.D., 4/4/10 MM
681
UNION NUT
682
CONNECTOR FUEL LINES TO SOLENOID VALVE
683
HOLLOW SCREW LINE CONNECTION
684
SEAL RING BRAKE CYLINDER STROKE INDICATOR
685
THREADED UNION OIL LINE TO CONNECTOR
693
SEAL RING BRAKE CYLINDER STROKE INDICATOR
702
HOLLOW SCREW LINE CONNECTION
711
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
711
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
711
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
720
FITTING AIR COMPRESSOR,CONNECTION: "10"
720
FITTING INTAKE PIPE TO AIR COMPRESSOR
999
CYLINDER HEADKNORR
999
CRANKSHAFTKNORR
999
COMPRESSORWABCO 225CCM, NOT USED
999
COMPRESSORWABCO 225CCM, NOT USED
999
V-BELT SET2 PIECES 12.5X1000
999
SEAL RING OIL RETURN TO TIMING CASE
999
SEAL RING OIL RETURN TO TIMING CASE
999
EXPANSION PLUG , Replaced By: A3660100019
999
BRACKET FUEL FILTER
999
SUSPENSION EYE
999
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 364 006362 366 034506, Replaced By: A3641870037
999
INTERMEDIATE PIECE OIL RETURN TO TIMING CASE
999
BUSHING OIL RETURN TO TIMING CASE
